Rail Transit DC Contactor

With the rapid development of rail transit systems, the safe operation of trains and the efficient control of power systems have become the key to ensuring the normal operation of urban rail, subway, high-speed rail, and heavy-load transportation systems. Rail transit DC switch contactor As an important part of the rail transit power supply system, its performance is directly related to the stability and safety of the entire power supply system.

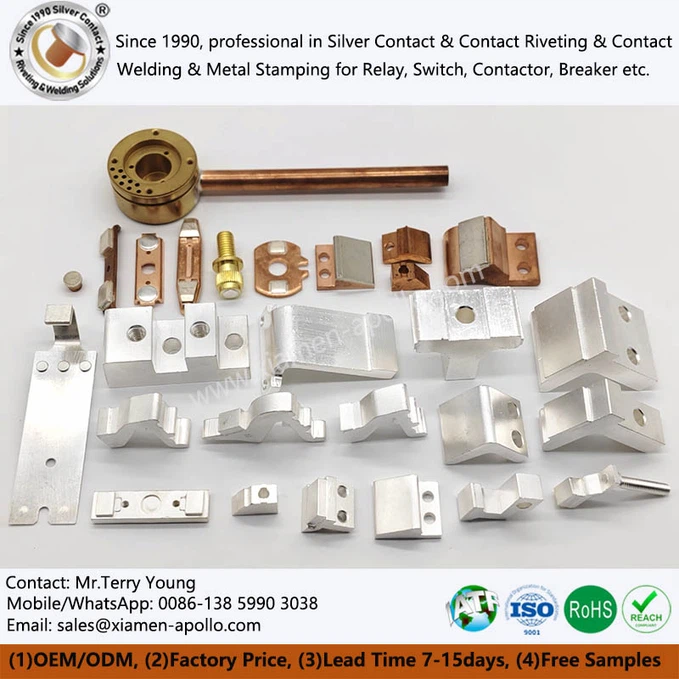

Our company has been deeply involved in the industry for more than 20 years, focusing on the design and manufacture of rail transit DC switch contact core components, and has accumulated a lot of successful application experience. The Silver Contact Brazed Assemblies produced are widely used in China Shipbuilding Industry Corporation, China Heavy Truck, subway, high-speed rail, and other projects, reflecting excellent performance and stable quality.

A rail transit DC switch contactor is a high-voltage electrical switch device suitable for rail transit DC power supply system, which is mainly used to connect and disconnect the circuit and provide trip protection in short circuit, overload, reverse current, voltage abnormality, and other situations to ensure the safe operation of the system.

Its typical applications include:

(1). Main power supply control for subways, high-speed railways, and light rail vehicles;

(2). Connection and protection between traction rectifiers and inverters in urban rail systems;

(3). DC traction power circuit control in train control units;

(4). Heavy trucks and new energy rail transit electric drive control systems.

The internal structure of rail transit DC switch contactors is complex and contains multiple high-precision and high-performance components. Among them, the contact system is the core component that determines its reliability. The silver contact welding components, copper contact brazing components, and other contact components produced by your company are indispensable keys to the stable operation of these contractors.

The following are the main components and their functional descriptions:

1. Silver contact welding components

Silver contact welding components are the core components responsible for conducting current in DC contactors. Due to the high voltage, high current, frequent separation and combination, and other working conditions that usually exist in rail transit systems, the conductivity, anti-welding ability, and life of the contacts are extremely high.

(1). Material: Use high-conductivity silver alloy (AgNi, AgCdO, AgSnO₂, etc.), and choose different ratios according to the current carrying capacity of the system;
(2). Welding method: Use precision spot welding, seam welding, roll welding, and other processes to firmly weld the silver contacts to the copper or brass substrate;
(3). Features: It has good arc erosion resistance, high current switching capability, low contact resistance, and is suitable for the complex operating environment of rail transit;
(4). Main applications: CSIC DC contactor, China heavy truck high-voltage control switch, subway PDU system, etc.

Our company uses automatic spot welding equipment + a resistance monitoring system + visual positioning recognition technology to achieve consistency and reliability control of silver contact welding, effectively preventing hidden dangers such as false welding and falling off.

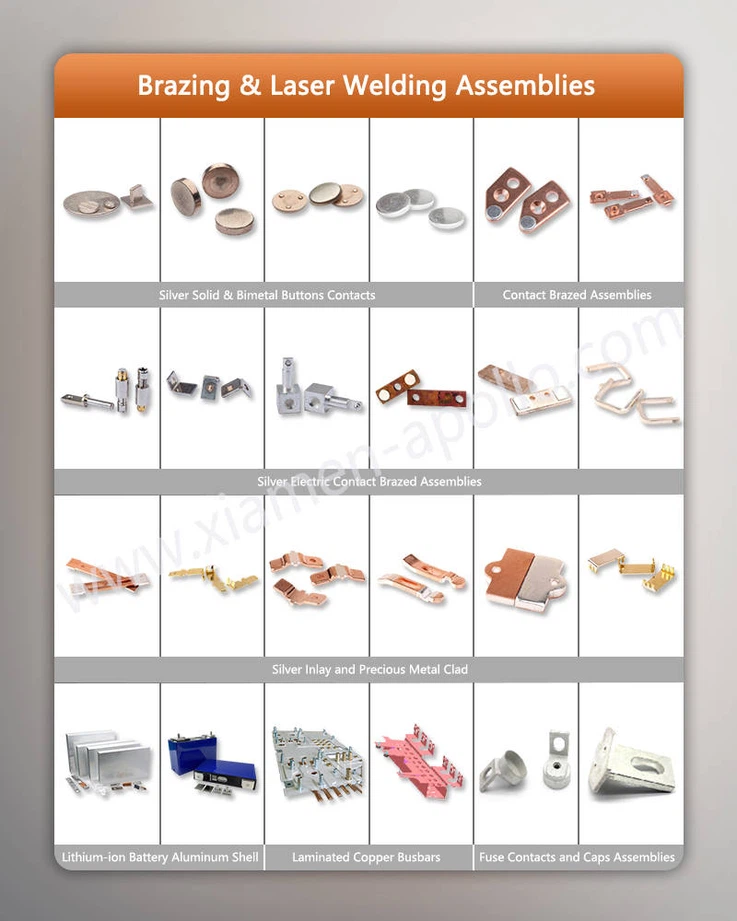

2. Copper contact brazing assembly

Copper contact brazing assembly is a structural conductor that connects the silver contact and the input/output end of the main circuit current, and plays a dual role of current guidance and structural support in the contact system.

(1). Material: High-purity copper (such as T2, TU1) with excellent conductivity and forming performance;
(2). Brazing method: Through high-temperature brazing with silver-based solder, the silver contact is firmly bonded to the copper body;
(3). Process requirements: uniform brazing seams, no pores, and complete solder penetration to ensure reliable electrical and mechanical connections;
(4). Features: Combining the conductivity of silver with the strength and thermal conductivity of copper, the overall Brazing Silver Contacts to Copper Bars has the highest mechanical strength and vibration resistance.

Our company adopts a continuous brazing process + vacuum annealing + ultrasonic testing to effectively control the brazing strength and silver-copper bonding quality, which is suitable for high-speed rail, subway, and other application scenarios with extremely high requirements for structural stability.

3. Welding technology of silver contacts and copper terminals/brass terminals

In rail transit systems, contacts often need to be welded and fixed with conductors of various shapes and materials. Your company has mastered the technology of welding silver contacts to copper terminals and welding silver contacts to brass terminals, which has the following advantages:

(1). Accurate energy control: adapt to metals with different melting points to prevent local overheating and deformation;

(2). Strong stability: can resist high-frequency vibration and temperature difference changes during train operation;

(3). Surface treatment specifications: After welding, the terminals can be silver-plated, nickel-plated, and other surface treatments to improve contact and corrosion resistance.

Rail transit DC systems are often in a high-voltage (DC750V~~DC1500V) high-current (hundreds of amperes~~kiloamperes) operating state. The internal contacts of the contactor must meet the following technical performance requirements:

The Welding Electrical Silver Contact Tip Assembly and copper contact brazing components supplied by your company have passed the tests of high-pressure resistance, high-temperature resistance, high arc resistance, etc., to ensure that the products can work reliably for a long time in the harsh rail transit operation environment.

To ensure the batch consistency and long-term reliability of Electrical Contact Assemblies, your company implements a comprehensive quality control process in the silver contact welding and brazing manufacturing process:

1. Material warehouse inspection: 100% of silver contact alloy and copper raw materials are tested by brand spectrum;

2. Welding quality control: An automated welding platform is used to monitor key parameters such as welding current, resistance, and welding time in real-time;

3. Process control: All welding components implement IPQC first inspection + patrol inspection system, and key dimensions and bonding strength are randomly inspected;

4. Finished product electrical performance test: Before shipment, each batch of products is tested for resistance and appearance to ensure zero defects.

With more than 20 years of industry experience, our company has the following core competitive advantages:

1. Deep industry experience: Long-term service to rail transit, shipbuilding, and new energy-heavy truck customers, in-depth understanding of the application environment of DC high-voltage systems;

2. Diverse welding capabilities: Covering processes such as silver contact welding, silver contact brazing, and silver-copper dissimilar metal bonding;

Strong customized development capabilities: Contact components of different structures/current levels can be customized according to customer drawings;

3. High-end equipment guarantee: Equipped with advanced processing and testing equipment such as German-imported welding equipment and high-temperature brazing furnaces;

4. Fast response and stable delivery: Standard products are regularly stocked, and customized products are delivered within 7 days at the fastest, meeting customer project development cycle requirements.

Rail transit DC switch contact The performance of the system directly determines the safety and stability of the entire vehicle system. Our company focuses on the research, development, and manufacturing of core components such as silver contact welding assemblies and copper contact brazing assemblies. It has formed a mature process chain in silver contact welding, silver contact brazing, and silver contact and copper/brass terminal welding, providing high-performance and high-reliability solutions for high-speed rail, subway, heavy truck, and other industries.
