Plated Contact

Custom Plated Contact Manufacturer for Electrical Switching Components

Xiamen Apollo Electric Co., Ltd. manufactures plated electrical contacts using copper and copper-alloy substrates with silver, nickel, or gold surface finishes. Established in 1990, Apollo supplies precision contact components for relays, switches, contactors, and circuit breakers. Material selection and plating specifications are determined by electrical conductivity, contact load, wear conditions, and the customer's component drawings.

Our manufacturing support covers:
Base Materials: Copper, H62/H65/H68 brass, and other drawing-approved conductive alloys.
Plating Options: Silver, nickel, gold, and tin, selected according to contact function.
Component Types: Contact rivets, stamped contacts, copper contacts, and miniature electrical contacts.
Production: Precision stamping, substrate preparation, electroplating, and dimensional inspection.

Request a Factory Direct Quote

Explore Our Plated Contact Product Catalog

Compare silver, nickel, and gold-plated contact designs below by substrate, geometry, and surface finish to identify the appropriate component for your electrical switching application.

  • Electroplated Nickel Contacts
    These Electroplated Nickel Contacts adopt electrolytic nickel plating on a copper base. They deliver good anti‑oxidation, wear resistance, and stable conductivity. Available in standard or custom...
    read more
  • Silver Plated Bimetallic Contact Rivets
    The Silver Plated Bimetallic Contact Rivets professionally manufactured by our company (Xiamen Apollo Electric Co., Ltd.) are specially designed to enhance the performance of low-voltage...
    read more

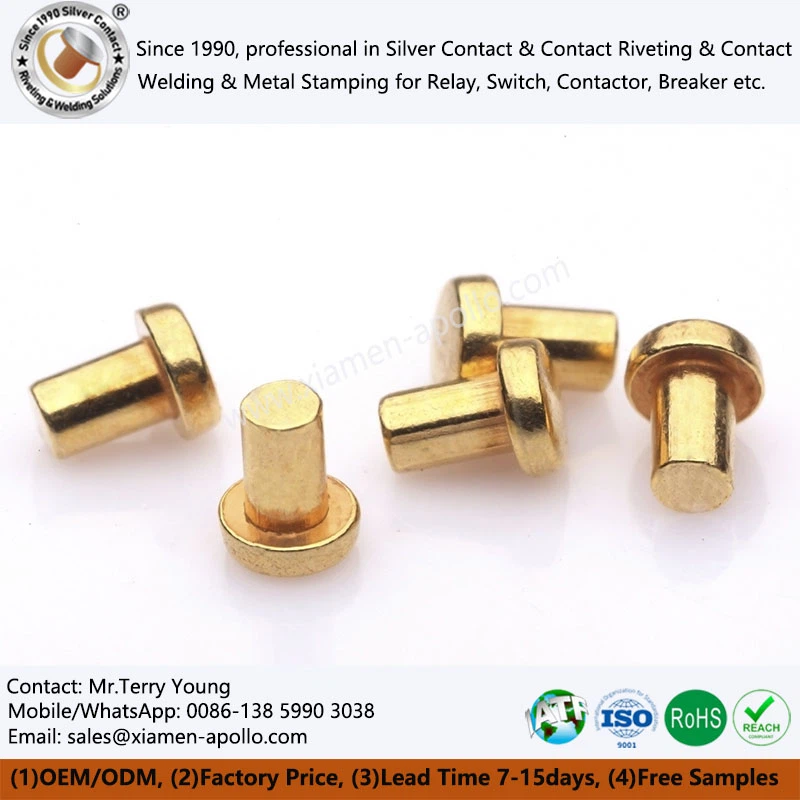

  • Gold Plating Copper Rivets
    Gold Plating Copper Rivets are made of electrolytic copper substrate and manufactured with high-vacuum electroplating technology. The gold coating is uniform and dense, achieving ultra-low...
    read more
  • Gold Plated Contacts For Relays
    Gold Plated Contacts for Relays are precision electrical contact components featuring a surface electroplated with a layer of high-purity gold; they are primarily utilized in scenarios involving...
    read more
  • Small Size Nickel Plated Contacts
    Small Size Nickel Plated Contacts are manufactured using a solid copper base material, the surface of which undergoes a precision electroplating process to apply a uniform layer of nickel. The...
    read more
  • Gold Plated Contacts For Contactors
    Gold Plated Contacts for Contactors are precision electrical components manufactured by electroplating the surfaces of a contactor's core conductive contacts with 99.99% high-purity gold....
    read more
  • Electroplated Gold Contacts
    In the field of high-end electrical connections, the reliability of contacts often determines the success or failure of the entire system. Our Electroplated Gold Contacts are not simply metal...
    read more
  • Micro Nickel Plated Contacts
    Micro Nickel Plated Contacts are miniature electrical connection components formed by high-precision stamped copper-based contacts and nickel plating. They are widely used in low- and...
    read more
  • Solid Gold Plated Contacts
    Our Solid Gold Plated Contacts utilize a 99.99% high-purity gold plating layer with a thickness of 1-3 μm. Designed for high-end applications with extremely high requirements for conductivity,...
    read more
  • Gold Plated Copper Contacts
    Gold Plated Copper Contacts are high-end electronic components made by uniformly depositing 99.99% pure gold onto a copper substrate using a high-precision electroplating process. These contacts...
    read more
  • Silver Clad Contacts
    Silver Clad Contacts of Xiamen Apollo Electric adopt metallurgical bonding technology. The silver layer thickness is strictly controlled at 3–5 μm, ensuring low and stable contact resistance as...
    read more
  • Thin Nickel Layer Electrical Contacts
    Thin Nickel Layer Electrical Contacts refer to functional contact products where a dense, uniform nickel plating layer is formed on the surface of copper-based contacts to enhance oxidation...
    read more
First 1234567 Last

Material Standards, Tooling & Forming Processes



Base Material Selection for Plated Electrical Contacts
The substrate determines the mechanical strength, electrical resistance, and dimensional stability of a plated contact. Apollo selects copper-based materials and other specified alloys according to the contact's current-carrying requirements, forming geometry, and operating environment.



Common substrate options include:



1. Copper and Copper Alloys
C11000 / T2 Copper: High electrical and thermal conductivity, suitable for conductive contact components requiring low substrate resistance.
H62 / H65 / H68 Brass: Suitable for stamped contact structures requiring a balance of formability, mechanical strength, and electrical conductivity.
Other Copper Alloys: Selected according to hardness, spring characteristics, and forming requirements.


2. Alternative Substrates
Carbon Steel: Used where mechanical strength and structural support are more important than bulk conductivity.
Stainless Steel: Applied to specified structural or corrosion-resistant components, with appropriate consideration of its electrical properties.
Aluminum Alloys: Used only where the electrical interface, oxide control, and plating compatibility have been validated.


For electrical contact applications, copper and copper alloys are generally preferred when current transmission is the primary function. Material selection must consider both the bulk conductivity and the behavior of the plated contact interface.


Precision Stamping and Contact Forming
Plated contacts may be manufactured through progressive die stamping, precision punching, blanking, and secondary forming.



The process is selected according to component geometry and production volume.



Typical manufacturing sequence:
1. Incoming material inspection and coil verification.
2. Coil feeding, precision blanking and forming.
3. Deburring and edge-condition inspection.
4. Degreasing and surface activation.
5. Electroplating and post-treatment.
6. Final dimensional and coating inspection.


For miniature electrical contacts, die clearance, burr direction, and contact-face flatness require particular attention. Excessive stamping burrs can interfere with assembly and create localized electrical contact problems.



Apollo can review the tooling layout and forming sequence before mass production to identify dimensional risks and reduce variation between production batches.

Plated Contact Technical Specifications
The following table provides an engineering reference for quotation and drawing review. Actual values must be confirmed against the product drawing, plating specification, and application requirements.



Parameter Available Options / Reference Engineering Considerations
Base material C11000, T2 copper, H62, H65, H68 brass Conductivity and forming properties
Silver plating 3–5 μm or drawing-defined thickness Contact resistance and wear
Nickel plating Drawing-defined thickness Corrosion protection and barrier layer
Gold plating 1–3 μm for specified products Surface stability and low-load contacts
Tin plating Drawing-defined thickness Solderability and electrical interface
Dimensional tolerance ±0.01 mm where feasible Geometry and tooling dependent
Coating thickness inspection XRF measurement Local and batch consistency
Coating adhesion Agreed adhesion test method Peeling and blistering prevention
Surface condition Free from visible peeling, burrs, and contamination Contact interface quality



Important material distinction: Silver, nickel, and gold are not interchangeable coatings. Silver is commonly selected for conductive power-contact surfaces; gold is used in specified signal or low-load interfaces where surface stability is required; nickel is frequently applied as a protective or diffusion-barrier layer. The final coating stack must match the electrical and environmental requirements.



Advanced Joining, Insulation & Surface Treatments



Electroplating Systems for Electrical Contact Performance
The plating process directly affects the electrical and mechanical performance of a plated contact. Substrate preparation, surface activation, bath control, and post-plating treatment must be coordinated to achieve the specified coating characteristics.



Apollo's plated contact product range includes the following surface treatments:


1. Silver Plating (Ag)
High electrical conductivity.
Suitable for power-switching contact interfaces.
Used to reduce contact interface resistance.
Thickness is controlled according to drawing specifications.



2. Nickel Plating (Ni)
Provides a protective surface layer.
Helps limit oxidation of the substrate.
Can serve as a barrier layer beneath another coating.
Suitable for specified mechanical and electrical components.



3. Gold Plating (Au)
High surface chemical stability.
Suitable for low-level signal contact interfaces.
Thickness and underlayer selection depend on operating conditions.
Available for specified relay and switching components.



4. Tin Plating (Sn)
Supports solderable electrical connections.
Used in specified terminal and connection structures.
Requires consideration of oxidation and fretting behavior.
Coating thickness follows the drawing.



Plating Process and Coating Uniformity
A typical electroplating workflow includes:


1. Degreasing: Removes stamping oil and surface contaminants.
2. Pickling and activation: Prepares the substrate for coating deposition.
3. Underplating: Applies a nickel or other specified transition layer where required.
4. Electroplating: Deposits the specified silver, gold, nickel, or tin coating.
5. Rinsing and drying: Removes residual plating chemicals.
6. Final inspection: Checks coating thickness, surface condition, and adhesion.


For contacts with complex geometry, current distribution and component positioning affect local coating thickness. Edge buildup, recessed-area underplating, and uneven deposition must be considered when designing the plating fixture and process parameters.


Electrical Contact Resistance and Wear Considerations
The coating is only one factor affecting contact resistance. Actual electrical performance also depends on:


Contact force and effective contact area.
Surface roughness and contact-face geometry.
Substrate resistivity and component cross-section.
Oxidation, contamination, and environmental exposure.
Switching frequency and mechanical vibration.


For frequent switching applications, the engineering evaluation should include coating adhesion, contact resistance before and after endurance testing, and inspection of the worn contact surface.



Request Custom Technical Evaluation



Quality Control & Certifications at Apollo



Inspection Standards for Plated Electrical Contacts
For plated contacts, inspection must cover the substrate, stamped geometry, surface coating, and electrical interface. A visually acceptable contact does not automatically meet the required electrical performance.



Apollo's inspection planning can include the following checkpoints, subject to product specifications and the agreed inspection plan.



Inspection Item Inspection Method Quality Objective
Base material Material certificate and incoming inspection Material grade verification
Contact dimensions CMM / optical measuring instrument Drawing compliance
Plating thickness X-ray fluorescence (XRF) Coating thickness verification
Surface appearance Visual and microscopic inspection Identify peeling, pits, and contamination
Coating adhesion Agreed adhesion test Verify coating integrity
Contact resistance Four-wire Kelvin measurement Evaluate electrical interface
Mechanical strength Pull-off / tensile testing where applicable Verify structural integrity
Temperature rise Electrical load testing where specified Evaluate thermal behavior
Corrosion resistance Salt spray or environmental testing where specified Evaluate coating durability

Why XRF Plating Thickness Measurement Matters
X-ray fluorescence measurement provides a non-destructive method for evaluating metallic coating thickness.



For plated electrical contacts, the inspection plan should identify:
Measurement locations on the contact surface.
Specified minimum and maximum coating thickness.
Sampling frequency and batch acceptance criteria.
Measurement calibration and report traceability.


A single measurement point cannot represent the coating distribution across every surface. Critical contact areas and geometrically difficult regions should be defined in the inspection drawing.


Dimensional Inspection and Electrical Verification
Precision optical measurement and coordinate measuring equipment can be used to verify critical dimensions, including:


Contact diameter and overall height.
Rivet head geometry and shank dimensions.
Contact-face flatness.
Mounting and assembly interfaces.
Position and concentricity tolerances.


For electrical verification, the four-wire Kelvin method can reduce the influence of lead resistance when measuring low contact resistance.



Contact resistance and temperature-rise acceptance limits should be defined according to the actual switching device, current rating, contact pressure, and relevant customer or product standards.


Manufacturing Quality System and Documentation
Xiamen Apollo Electric Co., Ltd. was established in 1990 and manufactures electric silver contacts and related electrical components. Its existing product range includes contact rivets, contact assemblies, relay cores, and metal stamping parts.



For OEM projects, the quality documentation package can be agreed upon according to customer requirements:
1. Material certificates and incoming inspection records.
2. Dimensional inspection reports.
3. Plating thickness measurement records.
4. Electrical and mechanical test reports.
5. Batch identification and traceability records.
6. PFMEA and control plan, where required.
7. PPAP Level 3 submission, where included in the project agreement.


Apollo's website identifies ISO 9001:2015 as a quality standard. Applicable certificates, validity periods, and project-specific automotive quality requirements should be verified before formal supplier approval. IATF 16949 certification and PPAP Level 3 submission should only be claimed when supported by the relevant certificate or actual project documentation.



Frequently Asked Questions

Q: What is the recommended silver plating thickness for electrical contacts?

A: Silver plating thickness depends on contact current, switching frequency, contact pressure, wear conditions, and service-life requirements. Apollo's product references include 3–5 μm for specified silver-coated components. The final thickness should follow the customer's drawing and validated electrical performance requirements.

Q: How do you verify plating thickness and coating adhesion on plated contacts?

A: Coating thickness can be measured using X-ray fluorescence (XRF), with measurement points defined on critical contact surfaces. Adhesion is evaluated using an agreed test method appropriate to the substrate and coating system. Inspection frequency and acceptance criteria are established in the project control plan.

Q: Can Apollo manufacture custom silver, nickel, and gold plated contacts from customer drawings?

A: Yes. Apollo supports OEM contact components based on customer drawings and application requirements. Buyers can provide STEP, DWG, or PDF files, including substrate grade, plating type, coating thickness, critical dimensions, and annual volume, for engineering review and production evaluation.

Q: How can plated contact resistance and temperature rise be controlled?

A: Contact resistance depends on coating condition, contact force, surface geometry, substrate conductivity, and assembly tolerances. Four-wire resistance measurement and specified current-load temperature-rise testing can be used to evaluate the electrical interface under agreed operating conditions.



Submit Your Plated Contact Drawings for Engineering Review



Selecting a plated electrical contact requires more than specifying silver, nickel, or gold. Substrate conductivity, coating thickness, contact geometry, surface preparation, and switching conditions must be evaluated together.



Send Apollo your 2D/3D CAD drawings (.STEP, .DWG, or PDF), material specifications, and electrical requirements.



For an accurate project evaluation, please provide:
Product Drawing: Contact geometry, dimensions, and critical tolerances.
Base Material: Copper, brass, or other specified substrate.
Plating Specification: Silver, nickel, gold, or tin, including thickness.
Electrical Requirements: Rated current, contact resistance, and temperature-rise limits.
Mechanical Requirements: Contact force, pull-off strength, and operating cycles.
Order Information: Prototype quantity, annual demand, and target production schedule.


Apollo's engineering team can review manufacturability, plating feasibility, and inspection requirements, with a target response within 24 hours for standard inquiries.



Contact Apollo for OEM Plated Contact Manufacturing.

Submit Your Drawings & Request a Factory Direct Quote
