Stainless Steel CNC Milling
Stainless Steel CNC Milling

Stainless Steel CNC Milling

These Stainless Steel CNC Milling parts provide burr‑free precision components with optional anodizing. Full‑process in‑house production, OEM‑tailored for switches, relays, and diverse low-voltage electrical assemblies.
Send Inquiry

What is Stainless Steel CNC Milling?



Stainless Steel CNC Milling

Stainless Steel CNC Milling produces precision-machined metal components from stainless steel bars, plates, and blocks for electrical equipment, industrial assemblies, and mechanical structures. Material selection, including 304, 316 and other specified stainless steel grades, is based on corrosion exposure, mechanical loading and machining requirements. Custom CNC milling covers mounting brackets, connection blocks, support components, housings, and structural parts manufactured according to customer drawings, CAD files, and dimensional inspection requirements. Prototype machining and repeat batch production are available for OEM projects.





stainless milling Process & Manufacturing Advantages


01/

Machining of Stainless Steel Structural Components

Stainless steel CNC milling removes material through controlled cutting operations to produce specified dimensions, holes, slots, pockets and mounting surfaces. The machining sequence is determined by part geometry, stock dimensions and tolerance requirements.

02/

Tool Selection and Work-Hardening Control

Austenitic stainless steel grades such as 304 and 316 can work-harden during cutting. Cutting tools, feed rates, cutting speeds and coolant delivery must therefore be matched to the selected grade. Stable chip evacuation and avoidance of prolonged tool rubbing help limit surface damage, excessive cutting temperatures and dimensional variation.

03/

Multi-Feature Milling and Assembly Interfaces

CNC milling can integrate multiple machined features into one component, including mounting holes, threaded holes, positioning grooves, stepped surfaces and connection interfaces. These features can be machined from common reference datums to control their relative positions and reduce alignment problems during subsequent equipment assembly.

04/

Surface Finishing and Corrosion Protection

Finished components can undergo deburring, mechanical polishing, passivation or electropolishing according to the application. Passivation supports the formation of a protective chromium-rich passive surface, while electropolishing removes a controlled amount of surface material to improve surface condition.

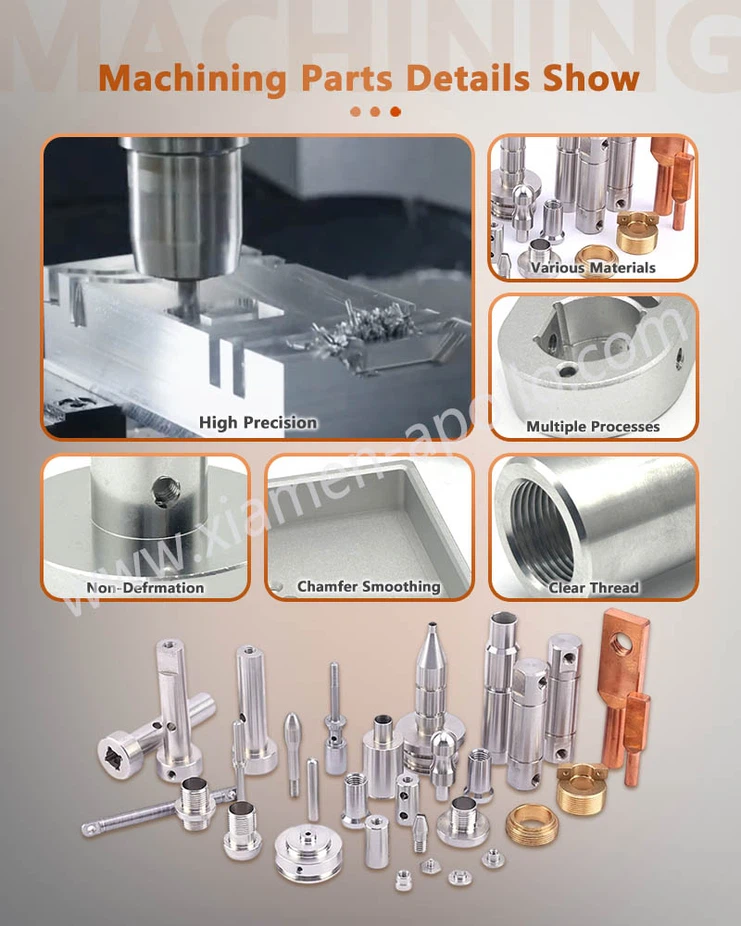

Stainless Steel CNC Milling Details Show







Manufacturing Capabilities & Factory Infrastructure of stainless steel milling parts



Advanced 5-Axis Milling Centers

Equipped with simultaneous multi-axis CNC machines that complete complex geometries in a single setup, reducing positional errors and lead times.

Comprehensive Metrology Laboratory

Utilizing high-precision Coordinate Measuring Machines (CMM), optical comparators, and surface profilometers to verify every critical dimension against client CAD models.

Integrated Deburring & Passivation Lines

In-house chemical passivation and mechanical deburring facilities ensure clean, burr-free components ready for immediate integration into sensitive assemblies.

Scalable OEM Supply Chain Management

Robust raw material inventory and flexible shift scheduling support both rapid prototyping phases and large-scale industrial wholesale fulfillment.

Our Machine Workshop Equipment for Stainless Steel CNC Milling





Downstream Applications of stainless steel machining parts





High-Voltage Switchgear Enclosures

Machined structural panels and interlocking brackets providing rigid housing and mechanical protection for indoor and outdoor power distribution substations.



Industrial Automation Robotic Arms

High-strength joint connectors and mounting flanges engineered to endure high rotational torque and continuous dynamic acceleration loads.



Medical Diagnostic Equipment Frames

Precision-milled stainless steel chassis components requiring strict hygienic surfaces, chemical sterilization resistance, and absolute structural stability.



Renewable Energy Inverter Sinks

Thermal management mounting plates and structural enclosures designed to dissipate high operational heat while resisting harsh outdoor weathering.

Application areas of Stainless Steel CNC Milling







Contact us

Send your Stainless Steel CNC Milling drawings and annual quantity requirements today to obtain a factory quotation, material review, and machining proposal for your next OEM component order.
