Copper Stamping Part
Custom Copper Stamping Parts Manufacturer for Electrical Components
Xiamen Apollo Electric Co., Ltd. manufactures custom Copper Stamping Parts for relays, contactors, circuit breakers, and electrical switches. Production materials include C1100, T2 pure copper, and selected copper alloys. Our manufacturing process combines precision stamping dies, controlled sheet-metal forming, and dimensional inspection to produce conductive components for electrical equipment manufacturers.
Our copper stamping manufacturing capabilities include:
Material Selection: C1100, T2, C1020, and specified copper alloys.
Tooling: Progressive dies, compound dies, and single-operation stamping dies.
Forming: Blanking, piercing, bending, embossing, and coining.
Dimensional Control: Drawing-based tolerances, hole positioning, and flatness inspection.
Production: Prototype development, tooling fabrication, and repeat batch production.
Request a Factory Direct Quote
Explore Our Copper Stamping Parts Product Catalog
Browse the copper stamping components below to identify suitable electrical parts for your relay, contactor, circuit breaker or switch assembly.
-

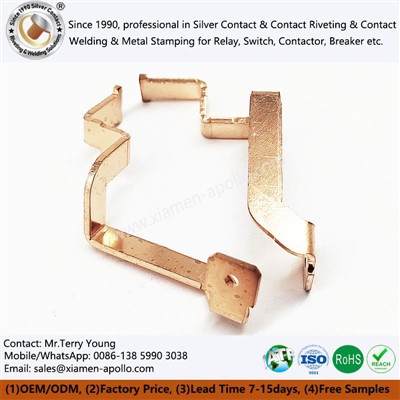

Copper Stamping PartXiamen Apollo provides high-reliability Copper Stamping Parts solutions: Relay Copper Stamping Parts, Contactor Copper Stamping Parts, Circuit Breaker Copper Stamping Parts, and Switch Copper...read more
-
Relay Copper Stamping PartsIn low-voltage electrical appliances such as T90 general-purpose relays and industrial contactors, Relay Copper Stamping Parts are key components for current introduction and structural support....read more
-
Contactor Copper Stamping PartsThese Contactor Copper Stamping Parts are high‑conductivity stamped conductive components for AC‑DC contactors. Precision progressive stamping ensures tight tolerances; optional plating improves...read more
-
Circuit Breaker Copper Stamping PartsIn low-voltage circuit breakers, contactors, disconnectors, and new energy power distribution units, the circuit breaker copper stamping parts, as a key component of the main circuit conductive...read more
-
Switch Copper Stamping PartsMade of high‑conductivity copper strip via high‑speed precision stamping, these Switch Copper Stamping Parts deliver stable current transmission and good heat dissipation. Strict inline...read more
-
Copper Stamping Parts For MCCBThese copper stamping parts for MCCB are precision red‑copper components for molded‑case circuit breakers. High‑speed progressive stamping keeps burrs under 0.02 mm. Multi‑instrument batch...read more
-
Progressive Die Stamping Service With Copper PartsOur Progressive Die Stamping Service with Copper Parts produces high‑precision C1100 copper electrical parts. We support reel‑to‑reel electroplating and 100% AOI inspection, with burrs under...read more
-
Pressed Copper Stamping SheetThe Pressed Copper Stamping Sheet adopts ≥99.9% purity T2 copper, manufactured via blanking, bending, and progressive stamping. This page covers core specs, full‑scale manufacturing workflows...read more
-
Bending Laser Cutting Stamping CopperThe Bending Laser Cutting Stamping Copper is a high-precision copper stamping assembly for the new energy and power electronics fields, specifically designed for MCCBs and core modules of...read more
-
Custom Stamped Parts In CopperWhat are Custom Stamped Parts in Copper? These are copper or copper alloy parts manufactured using precision stamping processes, specifically designed for use in circuit breaker assemblies within...read more
-
Copper Stamped Parts ComponentsCopper Stamped Parts Components are electrical metal parts manufactured from high-conductivity pure copper sheet using processes such as precision stamping, forming, coining, deburring, and...read more
-
Custom Copper Stamping For Electrical SwitchCustom Copper Stamping For Electrical Switch is a core structural component—manufactured from highly conductive oxygen-free copper via precision progressive die stamping—designed to provide...read more
Copper Materials, Tooling and Precision Stamping Processes
Copper stamping parts are used in electrical systems where electrical resistance, mechanical strength, and dimensional consistency affect component performance. Material selection should therefore consider more than copper purity. Electrical conductivity, sheet thickness, temper, forming direction, and contact geometry must be evaluated together.
Copper Material Selection
Apollo supports copper and copper-alloy material selection according to the electrical and mechanical requirements of each component.
| Material Grade | Material Characteristics | Typical Applications |
| C1100 / T2 | High electrical conductivity and good formability | Conductive terminals, relay parts, electrical connectors |
| C1020 | Oxygen-free copper with high conductivity | Electrical components requiring controlled oxygen content |
| C10200 | Oxygen-free electronic copper | Precision electrical and electronic components |
| C2600 Brass | Cu-Zn alloy with good forming properties | Terminals, brackets and formed electrical parts |
| C2680 Brass | Copper-zinc alloy suitable for precision forming | Electrical hardware and stamped connectors |
| C5191 Phosphor Bronze | Strength, elasticity and fatigue resistance | Spring contacts and conductive spring components |
Progressive Die Tooling and Forming Processes
Copper stamping production requires die design that accounts for the material's ductility, work hardening characteristics, and forming behavior.
Apollo's copper stamping process can include:
Blanking: Cutting copper sheet into the required component outline.
Piercing: Producing mounting holes, positioning holes and connection openings.
Bending: Forming terminals, brackets and electrical connection profiles.
Embossing: Creating ribs, locating features, and reinforcement structures.
Coining: Compressing selected areas to improve contact geometry and dimensional consistency.
Progressive Die Stamping: Integrating multiple operations into a continuous production sequence.
For complex electrical components, progressive die design can reduce repeated positioning errors between separate manufacturing operations.
Important tooling parameters include:
| Process Parameter | Engineering Consideration |
| Material Thickness | Defined by drawing and electrical requirements |
| Die Clearance | Adjusted according to copper grade and sheet thickness |
| Dimensional Tolerance | ±0.01–0.05 mm, subject to feature geometry and validation |
| Burr Height | Controlled according to assembly and insulation requirements |
| Hole Position | Checked against mounting and electrical connection datums |
| Bending Angle | Compensated for material springback |
| Surface Condition | Controlled to avoid scratches and contact-area defects |
Tolerance note: ±0.01 mm is a feature-specific precision target, not a blanket tolerance for every stamped component. Final acceptance limits must be confirmed through drawing review, tooling trials and measurement capability studies.
Copper Stamping Surface Treatments, Plating and Electrical Connections
Surface treatment influences oxidation resistance, solderability, contact resistance and the service performance of copper electrical components.
For copper stamping parts used in relays, switches, contactors, and circuit breakers, plating selection should be based on the contact interface, operating environment, and assembly process.
1. Available Surface Treatment Options
Common Copper Stamping Surface Finishes:
1. Tin Plating
Provides a solderable surface and improves oxidation resistance.
Suitable for electrical terminals, connection tabs, and wire interfaces.
Plating thickness is specified according to electrical and environmental requirements.
2. Silver Plating
Provides high electrical conductivity at contact interfaces.
Used in electrical components requiring low contact resistance.
Suitable for selected high-current and switching applications.
3. Nickel Plating
Provides a diffusion barrier and improves surface protection.
Can be used as an undercoat for other plating systems.
Suitable for applications requiring improved corrosion and thermal stability.
4. Selective Plating
Applies plating only to designated contact or connection areas.
Reduces unnecessary plating on non-functional surfaces.
Requires accurate masking or selective plating process control.
2. Plating Thickness and Quality Control
Plating thickness should be specified according to the component's operating conditions rather than applying a single thickness to every copper part.
| Surface Treatment | Primary Function | Inspection Focus |
| Tin Plating | Solderability and oxidation protection | Coating thickness, coverage, adhesion |
| Silver Plating | Conductive contact interface | Thickness, porosity, surface condition |
| Nickel Plating | Diffusion barrier and corrosion protection | Thickness, adhesion, coverage |
| Selective Plating | Functional-area protection | Plating position and boundary accuracy |
For applications requiring 3–10 μm silver or tin plating, the final specification should define the minimum local thickness, measurement locations, and applicable plating standard.
3. Copper Component Joining and Assembly
Copper stamping parts can be integrated into larger electrical assemblies through different joining methods.
Riveting: Mechanical fastening of copper components and electrical contact assemblies.
Resistance Welding: Joining compatible metal parts through controlled electrical resistance heating.
Laser Welding: Used for selected copper assemblies where joint geometry and process parameters permit stable welding.
Brazing: Joining conductive components using a suitable filler metal and controlled heating.
Mechanical Fastening: Bolted connections with defined contact pressure and surface requirements.
For copper-to-aluminum assemblies, joint design must account for differences in electrical conductivity, thermal expansion, and intermetallic compound formation. Laser welding Cu-Al requires process-specific validation of weld penetration, interface microstructure, and joint mechanical strength.
Request Custom Copper Stamping Technical Evaluation
Quality Control, Dimensional Inspection and Certifications at Apollo
Copper stamping quality is determined by dimensional accuracy, material consistency, surface condition, and electrical performance. Inspection procedures should focus on the functional features that affect component assembly and current transmission.
1. Dimensional and Visual Inspection
Apollo's copper stamping inspection requirements can cover the following characteristics:
| Inspection Item | Inspection Method | Quality Objective |
| Overall Dimensions | CMM / Optical Measuring System | Verify drawing dimensions |
| Hole Position | Optical Image Measurement | Confirm assembly alignment |
| Material Thickness | Micrometer / Thickness Gauge | Verify incoming material |
| Flatness | Precision Measuring Equipment | Control mounting and contact surfaces |
| Burr Height | Optical Inspection | Prevent assembly interference |
| Bending Angle | Angle Measurement | Verify formed geometry |
| Surface Defects | Visual Inspection | Identify scratches, dents, and cracks |
| Plating Thickness | Coating Thickness Measurement | Verify coating specifications |
For critical dimensions, inspection frequency and sampling plans can be defined through the control plan. Optical measurement is suitable for complex stamped profiles, while CMM inspection can be used for selected dimensional relationships and datum positions.
2. Electrical and Mechanical Testing
For copper stamping components used in electrical assemblies, the inspection plan can include:
Electrical Conductivity Testing: Verification of incoming copper material against specified conductivity requirements.
Four-Wire Resistance Measurement: Measurement of low electrical resistance across designated conductive paths or contact interfaces.
Contact Resistance Testing: Evaluation of electrical connection resistance under defined contact conditions.
Mechanical Strength Testing: Verification of bending integrity, fastening strength, or pull-out force where applicable.
Plating Adhesion Testing: Inspection of coating adhesion and surface integrity.
Environmental Testing: Corrosion, temperature cycling, and other environmental tests according to the application specification.
Not every test applies to every copper stamping component. The inspection plan should identify critical characteristics and define acceptance limits before production.
3. Quality Management and PPAP Documentation
Xiamen Apollo Electric Co., Ltd. was established in 1990 and manufactures electrical silver contacts, relay cores, metal stamping parts, and related electrical components. Its existing category information identifies 100% product testing before shipment as part of its quality-control approach.
For projects requiring automotive or electrical-equipment supplier documentation, the following records can be agreed during the quality-planning stage:
1. Material Mill Test Certificate (MTC).
2. Dimensional Inspection Report.
3. Initial Sample Inspection Report.
4. Process Flow Chart.
5. PFMEA (Process Failure Mode and Effects Analysis).
6. Control Plan.
7. SPC and CPK Process Capability Records.
8. PPAP Level 3 Submission, where contractually required.
Certification and measurement statement: IATF 16949:2016, ISO 9001, and specific CMM measurement accuracy claims should only be published against valid certificates, equipment calibration records, and the actual manufacturing site's approved scope. PPAP Level 3 is a project deliverable, not an automatic certification claim.
Frequently Asked Questions
Q: 1: Which copper materials are suitable for electrical copper stamping parts?
A: C1100 and T2 copper are commonly selected for conductive electrical components because of their high electrical conductivity and forming characteristics. C1020 may be considered where oxygen-free copper is specified. Brass and phosphor bronze are alternatives when strength, elasticity, or forming performance is more important than maximum conductivity.
Q: 2: What dimensional tolerances can Apollo achieve for custom copper stamping parts?
A: Dimensional tolerances depend on material thickness, feature geometry, die construction, and production conditions. Selected precision features can target ±0.01 mm, while other dimensions may require wider tolerances. Apollo reviews critical dimensions during DFM and confirms achievable limits through tooling trials and sample inspection.
Q: 3: Which surface plating is suitable for copper electrical terminals?
A: Tin plating is commonly specified for solderability and oxidation protection, while silver plating is used for conductive contact interfaces requiring low contact resistance. Nickel plating can provide a diffusion barrier. Final selection depends on operating temperature, mating materials, contact pressure, and environmental exposure.
Q: 4: Can Apollo manufacture custom copper stamping parts using customer drawings?
A: Yes. Apollo accepts customer 2D drawings and 3D CAD files for custom copper stamping projects. The engineering review covers material grade, thickness, die structure, forming feasibility, tolerances, and surface treatment. Prototype samples and mass-production tooling can be arranged according to project volume and validation requirements.
Request a Custom Copper Stamping Parts Quote
Are you sourcing precision copper stamping components for electrical switches, relays, contactors, or circuit breakers?
Send your engineering drawings and technical requirements to Xiamen Apollo Electric Co., Ltd. Our team can review the material grade, copper thickness, stamping geometry, dimensional tolerances, and surface treatment requirements before production.
Please provide the following information:
2D engineering drawings: .DWG, .DXF, or .PDF
3D CAD files: STEP, STP, or IGES
Copper material grade and sheet thickness.
Critical dimensions and tolerance requirements.
Required surface treatment and plating thickness.
Estimated annual demand and initial order quantity.
Applicable electrical and mechanical testing requirements.
Our Engineering Support:
1. Drawing review and DFM assessment.
2. Material and manufacturing process evaluation.
3. Tooling and sample production planning.
4. Dimensional inspection and quality documentation.
5. Factory-direct quotation and production scheduling.
Submit your drawings to discuss a manufacturing solution for your copper stamping project. DFM feedback and quotation can be arranged within 24 hours after receiving complete technical information and confirming project requirements.
