Metal Stamping Part

Custom Copper, Brass, Pure Iron & Steel Stamping Parts Manufacturer

Xiamen Apollo manufactures precision metal stamping parts for relays, contactors, circuit breakers, and electrical switching equipment. Our material range includes C1100 pure copper, H62/H65 brass, DT4C electric pure iron, carbon steel, and stainless steel. We produce conductive terminals, magnetic armatures, relay yokes, and structural components through precision die stamping and controlled forming processes.



Our manufacturing capabilities cover:
Copper Stamping Parts: Conductive terminals, relay connectors, and circuit breaker components.
Brass Stamping Parts: Electrical connectors, contact supports, switch terminals, and contactor components.
Relay Pure Iron Stamping Parts: Magnetic yokes, armatures, cores, and HVDC relay structural parts.
Steel Stamping Parts: Relay brackets, structural supports, mounting plates, and precision mechanical components.

Request a Factory Direct Quote

Explore Our Custom Metal Stamping Parts Product Catalog

Browse our copper, brass, pure iron, and steel stamping components below. Select a product to review its material specifications, applications, and manufacturing details.

  • Copper Stamping Part
    Xiamen Apollo provides high-reliability Copper Stamping Parts solutions: Relay Copper Stamping Parts, Contactor Copper Stamping Parts, Circuit Breaker Copper Stamping Parts, and Switch Copper...
    read more
  • Brass Stamping Part
    Xiamen Apollo provides high-reliability Brass Stamping Parts solutions: Relay Brass Stampings; Contactor Brass Stampings; Circuit Breaker Brass Stampings; and Switch Brass Stampings. The entire...
    read more
  • Aluminum Stamping Part
    Xiamen Apollo provides high-reliability Aluminum Stamping Parts solutions: Aluminum Accessories for Solar Mounting, Rooftop Photovoltaic Panel Clamps; Aluminum Electrical Boxes; and Aluminum...
    read more
  • Steel Stamping Part
    Xiamen Apollo provides high-reliability Steel Stamping Parts solutions: Relay Armature Stamping Parts, Relay Yoke Stamping Parts; Stainless Steel Stamping Parts; and Carbon Steel Stamping Parts....
    read more
  • Relay Copper Stamping Parts
    In low-voltage electrical appliances such as T90 general-purpose relays and industrial contactors, Relay Copper Stamping Parts are key components for current introduction and structural support....
    read more
  • Contactor Copper Stamping Parts
    These Contactor Copper Stamping Parts are high‑conductivity stamped conductive components for AC‑DC contactors. Precision progressive stamping ensures tight tolerances; optional plating improves...
    read more
  • Circuit Breaker Copper Stamping Parts
    In low-voltage circuit breakers, contactors, disconnectors, and new energy power distribution units, the circuit breaker copper stamping parts, as a key component of the main circuit conductive...
    read more
  • Switch Copper Stamping Parts
    Made of high‑conductivity copper strip via high‑speed precision stamping, these Switch Copper Stamping Parts deliver stable current transmission and good heat dissipation. Strict inline...
    read more

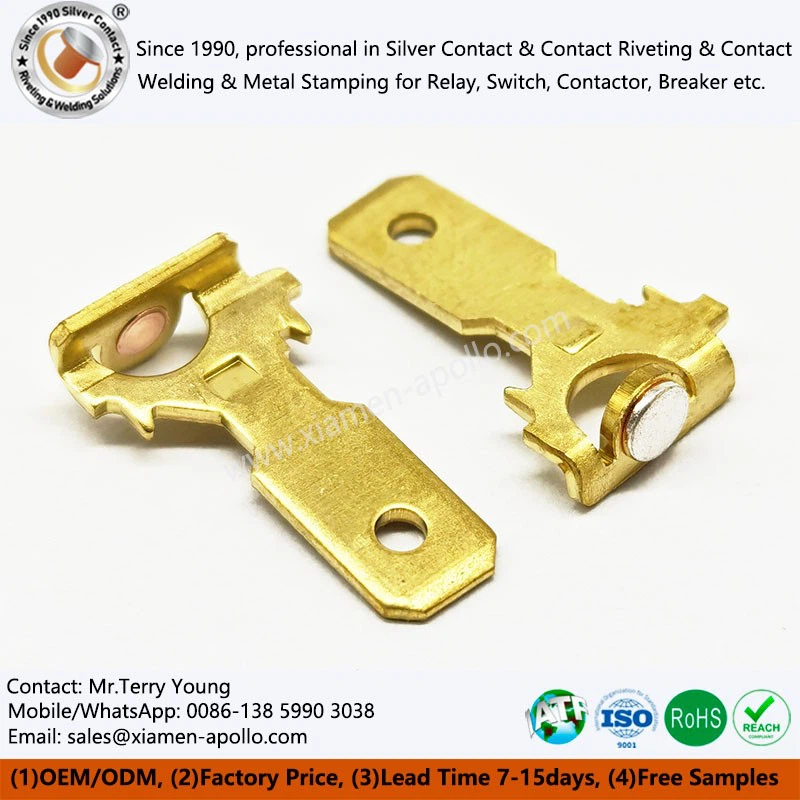

  • Relay Brass Stampings
    In the world of electrical connections and power conversion, every tiny stamped part is a lifeline for current transmission. Our Relay Brass Stampings are designed specifically for relays,...
    read more
  • Contactor Brass Stampings
    In the fields of industrial automation and energy distribution, contactors bear the heavy responsibility of frequently starting and stopping high-power equipment. As the key physical carrier for...
    read more
  • Circuit Breaker Brass Stampings
    In modern power distribution systems, circuit breakers are crucial for preventing overloads, short circuits, and electrical fires. As the physical core within a circuit breaker responsible for...
    read more
  • Switch Brass Stampings
    In the microscopic world of power control and signal switching, every "on" and "off" operation tests the limits of the toughness and conductivity of metal parts. Our Switch Brass Stampings are...
    read more
First 1234567 Last

Material Standards, Tooling & Precision Stamping Processes



Material selection determines the electrical, magnetic, and mechanical performance of stamped components. Apollo selects metal grades according to conductivity, magnetic response, tensile strength, hardness, formability, and the operating conditions of the final electrical assembly.


1. Copper Stamping Parts – Electrical Conductivity and Current-Carrying Performance

Copper Stamping Parts are primarily used in conductive paths within relays, contactors, circuit breakers, and electrical switches.



Available material options include:
C1100 / T2 Copper: High electrical and thermal conductivity for current-carrying components.
Oxygen-Free Copper: Used where high conductivity and controlled material purity are required.
Copper Alloys: Selected where additional spring properties or mechanical strength are needed.


Key manufacturing considerations:
Electrical conductivity and material temper.
Strip thickness and dimensional stability.
Punching clearance and edge burr control.
Bending radius and springback compensation.
Contact area flatness and surface condition.


For high-current applications, conductor cross-section, current density, contact resistance, and temperature rise must be evaluated together. A nominal copper grade alone does not determine the final current-carrying capacity.


2. Brass Stamping Parts – Formability and Electrical Contact Structures

Brass Stamping Parts are suitable for electrical connectors, relay terminals, switch components, and contactor structures requiring a balance of conductivity, strength, and forming performance.



Common material options:
H62 Brass: General-purpose brass for formed electrical components.
H65 Brass: Used for components requiring balanced strength and ductility.
H70 Brass: Considered for applications requiring good forming performance and electrical conductivity.


Important production controls include:
Strip thickness and material hardness.
Bend radius and forming angle.
Springback compensation.
Terminal insertion and retention dimensions.
Contact surface condition and plating compatibility.


For spring-loaded connectors, the material temper must be matched to the required contact force and repeated insertion cycles. Excessive forming strain can cause edge cracking or dimensional recovery after stamping.


3. Relay Pure Iron Stamping Parts – Magnetic Circuit Components

Relay Pure Iron Stamping Parts are used in electromagnetic relay and contactor magnetic circuits. Their function differs from copper and brass components: magnetic permeability, coercive force, and dimensional stability directly affect actuator performance.



Typical material:
DT4C / DT4E Electrical Pure Iron: Selected according to magnetic performance requirements.
Low-Carbon Magnetic Steel: An alternative where mechanical and magnetic requirements permit.


Key engineering considerations:
Iron purity and material composition.
Magnetic induction intensity.
Coercive force and magnetic hysteresis.
Armature air-gap dimensions.
Flatness and alignment of yoke surfaces.
Residual stress after punching and forming.


The stamping process may include blanking, piercing, bending and stacking. Where specified, post-stamping annealing helps reduce residual stress and restore magnetic properties.



Apollo's relay component range includes magnetic yokes, armatures, pure iron plates, and supporting structures for electromagnetic switching assemblies.


4. Steel Stamping Parts – Structural Strength and Dimensional Stability

Steel Stamping Parts are manufactured for applications requiring mechanical support, load-bearing capacity, rigidity, and dimensional consistency.



Material options include:
Q235 Carbon Steel: General structural brackets and support components.
SPCC Cold-Rolled Steel: Sheet-metal parts requiring consistent thickness and surface quality.
304 Stainless Steel: Components requiring improved corrosion resistance.
65Mn Spring Steel: Components requiring specific elastic and strength properties, subject to heat-treatment requirements.


Manufacturing considerations:
Tensile strength and yield strength.
Sheet thickness and blanking clearance.
Flatness and hole-position accuracy.
Burr height and edge quality.
Heat-treatment deformation.
Zinc, nickel, or other specified surface finishes.


For electrical equipment, steel parts may serve as mounting structures, brackets, magnetic supports, and protective mechanical components. Material selection should consider both the mechanical load and the installation environment.


Material and Process Specification Reference
The following table provides preliminary material and process references. Final values must be confirmed against the actual drawing, material certificate, and inspection plan.



Product category Typical material Key performance focus Reference dimensional tolerance
Copper stamping C1100 / T2 Electrical conductivity, contact resistance ±0.01–0.05 mm
Brass stamping H62 / H65 / H70 Formability, strength, conductivity ±0.05 mm
Relay pure iron DT4C / DT4E Magnetic permeability, coercive force ±0.03 mm
Steel stamping Q235 / SPCC / SUS304 Strength, flatness, corrosion resistance ±0.05 mm



Progressive Die Design and Tooling Development
Apollo uses single-station and multi-station stamping tooling according to component geometry, production volume, and dimensional requirements.

The tooling development process includes:


1. DFM Review: Evaluate material thickness, forming direction, bend radius, and critical dimensions.
2. Die Design: Define blanking, piercing, bending, coining, and forming stations.
3. Tool Manufacturing: Machine precision punches, dies, and locating components.
4. Trial Stamping: Verify part geometry, burr direction, springback, and material deformation.
5. Production Approval: Confirm samples against the customer's approved drawings.


For electrical components, punch-die clearance must be adjusted according to material thickness, hardness, and edge-quality requirements. Excessive clearance can increase burr height, while insufficient clearance may accelerate tool wear.



Advanced Forming, Joining & Surface Treatments for Electrical Stamping Components



Electrical metal stampings often require additional processes after blanking and forming. These processes affect contact resistance, corrosion resistance, mechanical retention, and long-term assembly stability.


1. Precision Forming and Secondary Machining
Depending on the component structure, Apollo can combine the following processes:


Precision blanking and piercing.
Multi-stage bending and forming.
Coining for controlled contact surfaces.
Tapping and threading.
Riveting and mechanical fastening.
CNC secondary machining where required.
Deburring and edge finishing.


For relay armatures and magnetic yokes, flatness and mating-surface geometry require particular attention because dimensional deviation can affect the magnetic air gap and actuator movement.


2. Surface Plating and Corrosion Protection
Surface treatment is selected according to the base material, electrical contact requirements, and environmental exposure.



Surface treatment Typical application Primary purpose
Tin plating Copper terminals and connectors Oxidation protection and solderability
Nickel plating Copper, brass and steel components Corrosion resistance and surface protection
Silver plating Electrical contact interfaces Low contact resistance
Zinc plating Carbon steel brackets Corrosion protection
Passivation Stainless steel components Improved corrosion resistance
Heat treatment/annealing Spring steel and pure iron Mechanical or magnetic property control



For plated electrical components, coating thickness must be specified by the drawing or customer standard. A typical engineering specification may define a 3–10 μm coating range, but the required thickness depends on the substrate, plating type, and operating environment.



Plating inspection should consider:
Coating thickness.
Surface coverage and uniformity.
Adhesion.
Contact resistance where applicable.
Corrosion performance under the specified test method.


3. Electrical Contact Assembly and Joining
For components integrated into electrical switching devices, mechanical and electrical interfaces must remain stable during repeated operation.



Available joining processes can include:
Mechanical riveting.
In-die riveting where compatible with the component design.
Resistance welding.
Silver contact riveting.

Precision welding for specified assemblies.


The joining method is determined by material compatibility, joint geometry, electrical resistance, and mechanical retention requirements.



For contact-bearing assemblies, inspection can include pull-off force, joint integrity, and contact resistance according to the customer's product specifications.



Request Custom Technical Evaluation



Quality Control, IATF 16949 & Production Traceability at Apollo



For electrical metal stamping, quality control must cover raw material, tooling condition, in-process dimensions, and finished-part performance.



Xiamen Apollo Electric Co., Ltd. was established in 1990 and focuses on electric silver contacts, relay cores, metal stamping parts, and related electrical components. Its published certification portfolio includes IATF 16949 and ISO 9001.


1. Incoming Material Inspection (IQC)
Raw materials are inspected according to approved purchasing specifications and product requirements.



Inspection items include:
Material grade and supplier identification.
Material thickness and dimensional consistency.
Material certificate and chemical composition.
Hardness and mechanical properties where required.
Electrical conductivity for conductive copper components.
Magnetic performance for electrical pure iron components.


2. In-Process Quality Control (IPQC)
During stamping production, inspection focuses on dimensions that directly affect assembly and functional performance.



Key inspection points:
Critical dimensions and hole positions.
Burr height and cutting-edge quality.
Bending angles and forming geometry.
Flatness and parallelism.
Part deformation and springback.
Tool wear and production consistency.


3. Finished Product Inspection (FQC)
Depending on the product specification, final inspection may include:



Inspection item Equipment / Method Quality objective
Dimensional accuracy CMM and optical measuring projector Drawing compliance
Thickness Digital thickness gauge Material consistency
Hardness Hardness tester Material condition
Surface quality Visual inspection Scratches, burrs, and plating defects
Magnetic performance Magnetic property testing Relay core performance
Electrical resistance Micro-ohmmeter Conductive interface performance
Coating thickness Coating thickness gauge Plating specification compliance



For critical dimensions, measurement frequency and sampling plans are defined in the control plan. Where customer requirements specify 100% inspection, the corresponding automated or manual inspection method is established before production.


4. Quality Management and Customer Documentation
Apollo's published IATF 16949 and ISO 9001 certifications support its quality management framework.



For automotive and electrical equipment projects, documentation can be prepared according to the agreed customer requirements:
Material Inspection Reports.
Dimensional Inspection Reports.
Control Plan.
PFMEA.
Process Flow Diagram.
CPK Process Capability Analysis.
PPAP Level 3 Submission Package.
Certificate of Conformity (COC).


The applicable documentation level, sample size, and process capability targets are confirmed during project review.



Frequently Asked Questions

Q: 1: What copper grades are available for custom Copper Stamping Parts?

A: Apollo can evaluate C1100/T2 copper, oxygen-free copper, and suitable copper alloys according to conductivity, hardness, thickness, and forming requirements. Material selection depends on current-carrying performance, contact resistance, bending geometry, and the operating temperature of the electrical assembly.

Q: 2: What is the difference between Brass Stamping Parts and Copper Stamping Parts?

A: Copper generally provides higher electrical conductivity, making it suitable for current-carrying terminals and connectors. Brass offers a balance of conductivity, mechanical strength, and formability. H62, H65, and H70 grades can be selected according to contact force, forming requirements, and component geometry.

Q: 3: How do you control the magnetic properties of Relay Pure Iron Stamping Parts?

A: Magnetic performance is controlled through material selection, stamping deformation, and appropriate annealing where specified. DT4C and DT4E grades can be evaluated according to magnetic induction, coercive force, and hardness requirements. Armature flatness and air-gap dimensions are also checked against approved drawings.

Q: 4: What dimensional tolerances can Apollo achieve for custom Steel Stamping Parts?

A: Typical reference tolerances range from ±0.01 mm to ±0.05 mm, depending on material thickness, geometry, tooling structure, and inspection method. Critical hole positions, flatness, and formed dimensions are reviewed during DFM. Final acceptance criteria are established through drawing review and sample approval.



Submit Your Drawings for Custom Metal Stamping



Are you sourcing precision Copper Stamping Parts, Brass Stamping Parts, Relay Pure Iron Stamping Parts, or Steel Stamping Parts for electrical equipment?

Work directly with Xiamen Apollo's engineering and manufacturing team to evaluate your component design, material specifications, and production requirements.



Send us the following information:
2D Drawings: .DWG, .DXF, or .PDF.
3D CAD Files: STEP, STP, or IGES.
Material Requirements: Copper, brass, DT4C pure iron, carbon steel, or stainless steel.
Technical Specifications: Thickness, critical dimensions, tolerances, and surface treatment.
Production Requirements: Prototype quantity, annual demand, and expected delivery schedule.


What you can expect from our engineering team:
1. Drawing and material feasibility review.
2. Initial DFM feedback within 24 hours for standard inquiries, subject to drawing complexity.
3. Tooling and manufacturing process recommendations.
4. Sample development and dimensional verification.
5. Factory-direct OEM quotation and production planning.

We're professional metal stamping part manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to buy high-grade metal stamping part from our factory.
