Products Description

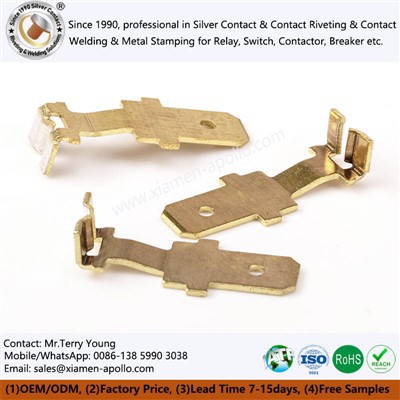

Switch Brass Stampings are high-precision functional metal components. Typical structures include terminal pieces, springs, connecting pieces, contact bases, conductive bridges, and fixing clamping structures. The product design considers both optimized conductive paths and mechanical stress distribution to ensure stable performance under frequent switching and long-term operation.
Compared to ordinary hardware stamping parts, electrical brass stamping parts emphasize the following characteristics:
Functional integration: Simultaneously meeting electrical conduction and structural support requirements.
High consistency requirements: Assembly and operational precision must be stable for batch products.
Controllable microstructure: Suitable for small sizes, multi-curved surfaces, and complex bending structures.
Optimized contact interface: Facilitates matching contact pressure and conductivity.
Products can be customized according to customer drawings or application scenarios, including multi-level bending structures, irregular contours, and embedded structures.
Technical Features: Solving System-Level Challenges in Switchgear Engineering
Local Hardening Technology
Through deformation control during precision stamping, localized work hardening is achieved at key stress points, improving wear resistance while retaining flexibility in other areas for easy assembly and bending.
Miniaturization Capability
For smart home and portable devices, we have the capability to process ultra-thin precision parts with a thickness of only 0.08 mm, maintaining extremely high precision in hole spacing.
Stress Distribution Simulation
During the mold design stage, finite element analysis (FEA) is introduced to optimize the distribution of bending fillets, ensuring that Brass Sheet Stamping Parts do not experience premature fatigue due to stress concentration during operation cycles.
Key Functions and Design Advantages
| Current Switching | Reliably connects or disconnects the circuit, acting as the carrier for the moving and stationary contacts. |
| Mechanical Transmission | Converts external pressing pressure into contact opening and closing forces, enabling circuit switching. |
| Elastic Support | Provides the contact pressure required for contact closure and stores energy for instantaneous reset. |
| Connection and Fixing | Provides soldering feet, pins, or wiring screw holes for connecting the switch to the PCB board or wires. |
| Modular Integrated Design | We have the capability to integrate multiple functions into a single component. For example, integrating the stationary contact bracket with the terminal block reduces the number of components, lowers contact resistance, and improves assembly efficiency. |
| Ergonomic Design | The design fully considers the user experience. By optimizing the radius of curvature and lever arm length of the spring, we provide customers with customizable "feel force values" (e.g., light touch, heavy touch) to meet the market positioning of different products. |
| Anti-accidental touch and self-locking structure | For rocker switches or DIP switches, we have designed precision positioning grooves and limit bosses on the Brass Sheet Metal Stampings to ensure that the switch has clear tactile feedback when switching positions and to prevent accidental operation. |
Detailed Showcase: Quality in the Minutes
Bend Corner Smoothness
Observing the bend, the metal fibers are continuous and free of micro-cracks. Even at stress concentration points from repeated bending, the material remains resilient, a testament to the high elasticity of the Electrical Brass Switch Socket Part and superior craftsmanship.
Contact Surface Flatness
The contact surfaces that bond with the silver contacts undergo high-precision flattening, resulting in extremely high flatness. This ensures surface contact, not point contact, when the contacts close, significantly reducing contact resistance.
Edge Chamfering Quality
Both the pins and clip edges undergo meticulous chamfering and deburring, resulting in a smooth, non-rough feel and protecting the PCB from scratches during Electrical Brass Press Parts For Switch Socket insertion.
Platinum Density
Under a microscope, the plating crystals are fine and uniform, without bubbles or burnt areas. This not only ensures aesthetics but also acts as a robust armor, protecting the Cold Stamping Brass for Switch from oxidation and corrosion.
contact us
For professional procurement and engineering teams, the key to selecting a metal stamping parts supplier lies not in the cost per unit, but in their engineering understanding, mold development capabilities, and consistent supply stability. A mature manufacturing system provides reliable support throughout the product lifecycle, reducing quality fluctuations and maintenance risks.
If your project involves electrical systems such as relays, switches, or contactors, please submit your drawings or technical requirements. We will prioritize engineering compatibility and manufacturing feasibility to provide sustainable structural and process solutions for your design.
