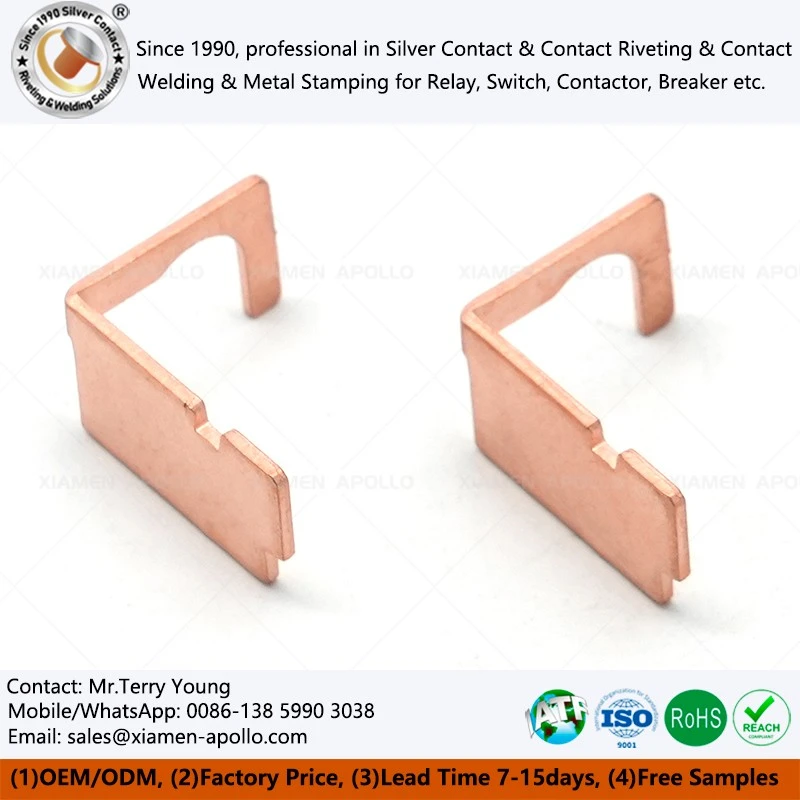

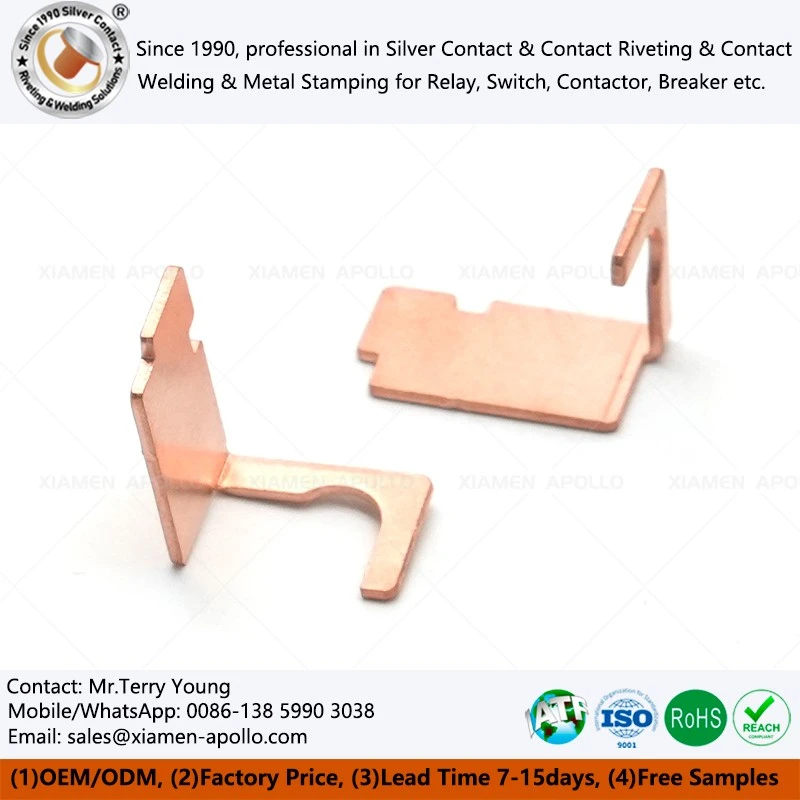

Custom Stamped Parts in Copper refers to conductive and structural functional components made from high-purity copper strip through precision stamping. These primarily include key components in molded case circuit breakers (MCCBs) and miniature circuit breakers (MCBs), such as stationary contacts, terminals, busbars, and electromagnetic system components. In circuit breakers, which are frequently operated, carry short-circuit currents, and need to maintain stable electrical performance over tens of thousands of operating cycles, the conductivity, dimensional accuracy, and surface quality of the copper stampings directly determine the circuit breaker's switching reliability, temperature rise level, and service life.
Manufacturing Advantages
Synergy Between Mold Design and Material Properties
- Work Hardening Effect: Copper hardens rapidly during cold deformation, requiring the mold to incorporate stress release mechanisms in continuous machining steps. Otherwise, delayed cracking for Custom Copper Stamping Components due to internal stress concentration will occur.
- Adhesion Challenges: Copper has a natural affinity for mold steel, easily leading to "seizing" or "accumulation." Therefore, special coating treatments (such as DLC diamond-like carbon coating) are needed to reduce the coefficient of friction.
- Springback Compensation Algorithm: Copper has a low elastic modulus, making the springback angle after bending difficult to predict. Reverse compensation via CAE simulation is required to ensure the final angle tolerance is controlled within ±0.5° for Copper Plate Sheet Metal Parts.
Process Capability Boundaries
- Minimum Inner Bending Radius: Up to 0.5 times the material thickness for Electrical Contactor Stamped Copper Parts (depending on copper grade and condition).
- Maximum Stamping Speed: 400-600 strokes per minute for simple geometries; 150-250 strokes per minute for complex, multi-step Metal Copper Stamping Parts Precision Sheet to ensure dimensional stability.
- Achievable tolerance grades: ±0.05mm for standard dimensions, and ±0.02mm for precision features (such as contact riveting holes).
Technical features
Mold gap control and section quality
The Custom Copper Stamping Components for circuit breakers directly affects contact resistance and assembly accuracy. By precisely controlling the gap between the concave and convex molds (5%-8% material thickness), a blanking surface with a finish Ra≤0.4μm can be obtained, reducing burrs and tear strips, and avoiding uneven plating in subsequent electroplating or damage to adjacent insulating parts during assembly.
Contact welding process integration
Some static contacts require pre-set silver alloy contacts on the Copper Plate Sheet Metal Parts, and the welding is completed through resistance brazing or induction brazing. The accuracy of the welding position and the fullness of the solder filling are directly related to the impact resistance and conductive reliability of the contacts. Customized stamping parts need to reserve contact positioning features in the mold design, and optimize the part structure in accordance with the rhythm requirements of the welding process.
Dimensional stability and heat treatment
For complex Metal Copper Stamping Parts Precision Sheet that have been bent or stretched multiple times, work hardening generated during the stamping process may cause dimensional springback and stress deformation. By optimizing the bend compensation angle or arranging stress relief annealing between processes, you can ensure that the final size of the part meets the assembly requirements.
Application Advantages
Temperature Rise Control Advantage: Low-resistance copper materials and optimized current path design for Electrical Contactor Stamped Copper Parts can control the terminal temperature rise of the circuit breaker under rated load to within 45K (IEC 60947 standard limit is 60K), providing a greater safety margin for the equipment, or increasing the rated current rating under the same temperature rise limit.
Breaking Capacity Advantage: During short-circuit breaking, the electrodynamic force and arc energy of the contact system exert a severe impact on the conductive structure. The elastic deformation of high-strength Custom Copper Stamping Components under electrodynamic force is controllable, avoiding contact overtravel loss and poor contact caused by permanent deformation.
Environmental Adaptability Advantage: Copper Plate Sheet Metal Parts exhibit stable corrosion resistance in humid, hot, salt spray, or industrially polluted environments. For power distribution systems in coastal or chemical plants, this advantage directly extends the maintenance cycle and service life of the circuit breaker.
