These Copper Stamped Electrical Contacts are fabricated from high‑grade copper via precision stamping. Tolerances reach ±0.01 mm, supported by CAD‑driven 3D simulation and multi‑stage quality inspection for diverse OEM electrical connection requirements.
Send Inquiry
What are the Copper Stamped Electrical Contacts?



Copper Stamped Electrical Contacts are conductive metal components used to establish electrical paths, connect terminals and support current transfer in relays, switches, contactors and fuse assemblies. Their material conductivity, cross-sectional area, contact geometry and dimensional accuracy directly influence connection resistance, local temperature rise and assembly fit. Precision copper sheet stamping, CAD-based component design and controlled die processing support custom OEM production according to customer drawings and electrical specifications.

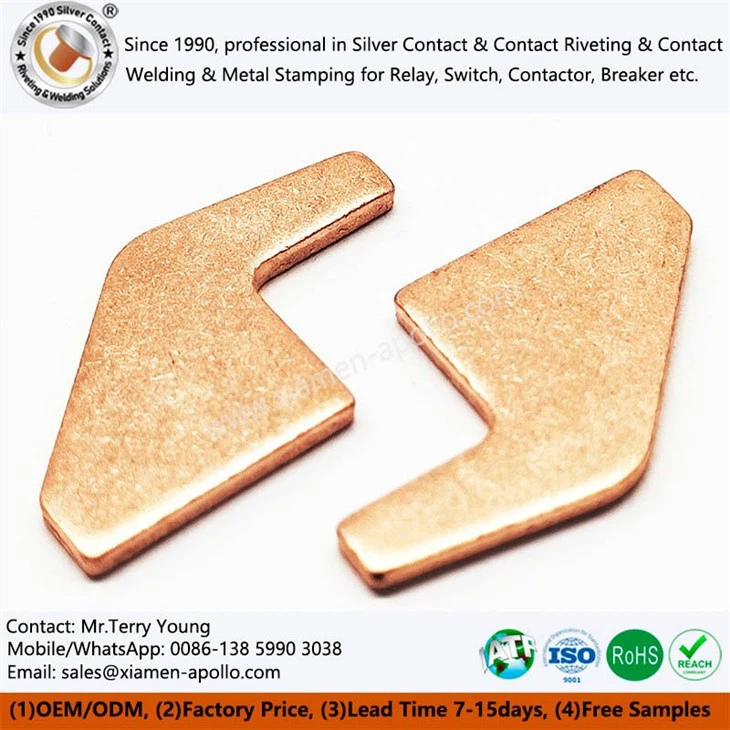

Copper Stamped Electrical Contacts

Complete Stamping Production Workflow of Copper Sheet Metal Parts
1

Incoming Copper Sheet Inspection

Incoming copper sheets are checked against the approved material specification. Inspection items include material identification, thickness, surface condition and available material certificates.

2

Die Setup and Stamping Preparation

The stamping die is installed and checked for alignment, clearance and component positioning. Stamping force, stroke and operating speed are adjusted according to the approved process parameters.

3

Continuous Stamping and In-Process Inspection

During production, copper stamped parts are checked for profile accuracy, hole position, surface defects and forming consistency.

4

Final Inspection and Batch Release

Finished components undergo inspection according to the approved control plan. Relevant checks include dimensions, burr condition, surface appearance, and mechanical characteristics.

Production process of Copper Stamped Electrical Contacts







Key Selection Notes for Customizable Copper Stamping Parts




Evaluating Current Density Limits

Engineers must calculate continuous and surge current requirements against cross-sectional area to prevent excessive Joule heating and thermal degradation of the copper substrate.




Matching Temper Hardness to Spring Requirements

Selecting the correct metal temper balance (such as soft annealed versus half-hard) is critical for parts requiring multiple complex bend angles without micro-cracking or springback fatigue.




Specifying Coating Types for Operating Environments

Choose silver plating for high-frequency switching contacts to prevent insulating oxide buildup, or select tin plating for cost-effective stationary bolted busbar connections.




Accounting for Thermal Expansion and Creep

Design configurations must accommodate thermal expansion differentials between copper components and surrounding molded housing materials during prolonged high-temperature operation.



Customizable copper stamping parts





Frequently Asked Questions about Copper Pressed Parts


What anti-corrosion plating options are available for C1100 copper parts?

Options include electroplated bright tin, matte tin, silver flash, or heavy silver plating ranging from 3 to 5 microns to suit specific environmental exposure requirements.

Do these copper stamped electrical contacts comply with international environmental regulations?

All manufactured parts are fully compliant with RoHS and REACH standards, backed by third-party laboratory material test reports supplied upon request.

How are bulk Copper Alloys Metal Stampings packaged to prevent oxidation during transit?

Components are packed in anti-corrosion VCI bags, vacuum-sealed with desiccants, and secured inside double-walled corrugated export cartons to eliminate moisture damage.

What methods are used to verify dimensional accuracy before shipment?

Quality assurance teams utilize optical comparators, micrometers, and CMM equipment to measure critical dimensions against 2D drawings for every manufactured batch.

Copper Stamped Electrical Contacts Packaging Process







contact us

Send your contact drawings, copper material requirements, and annual demand now to obtain a factory-direct quotation for Copper Stamped Electrical Contacts, covering CAD review, precision die development, stamping production, and quality inspection.
