Products Description

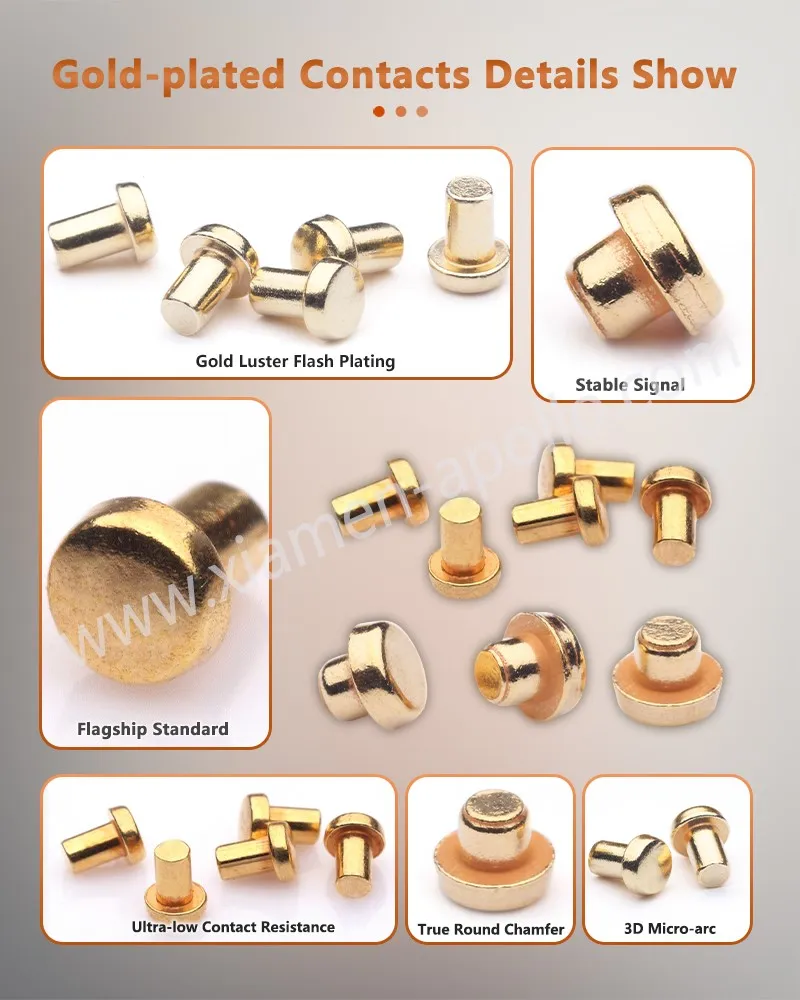

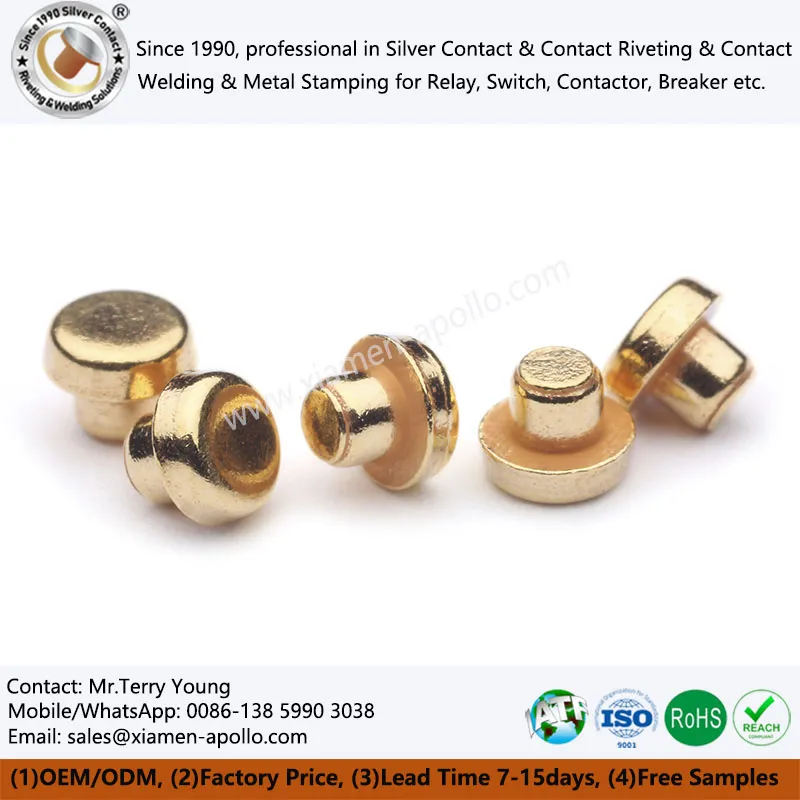

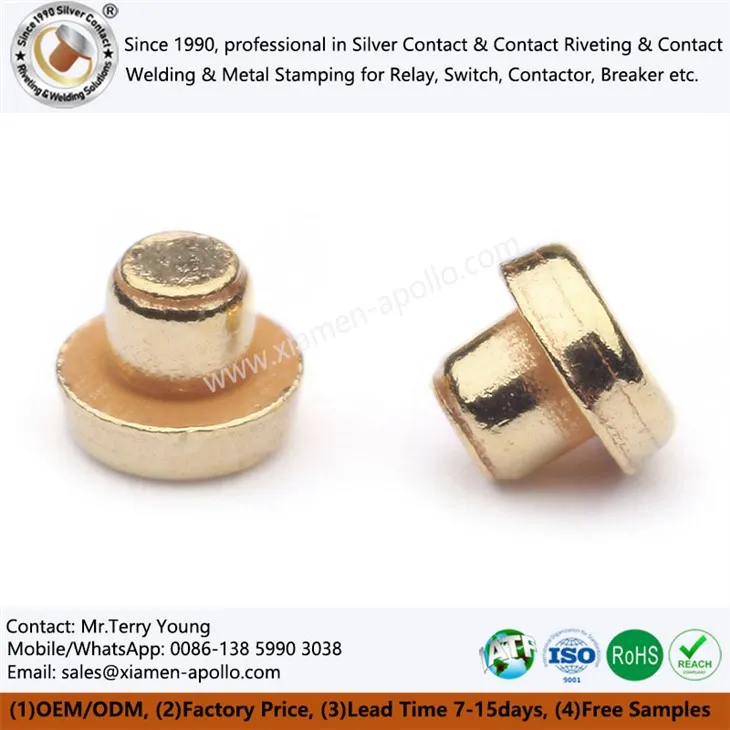

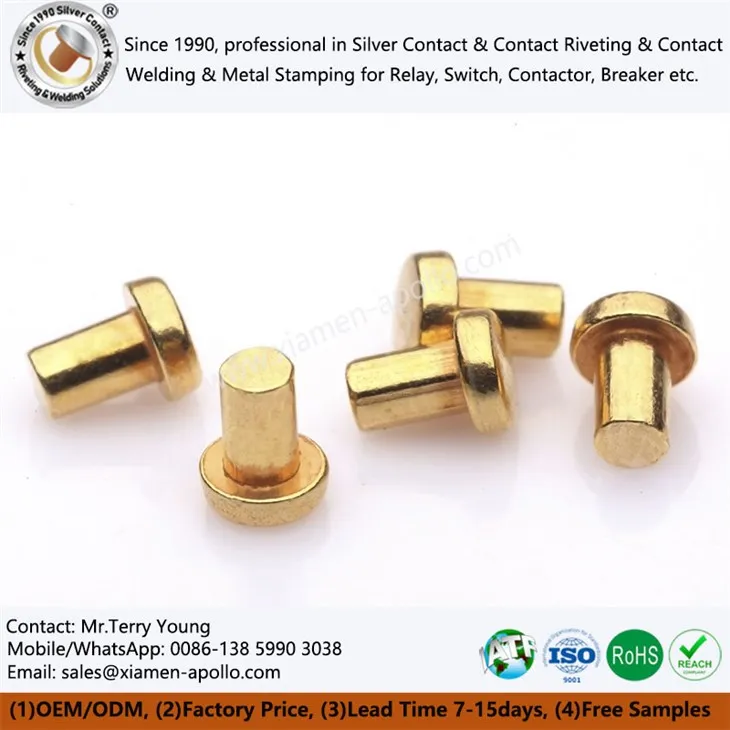

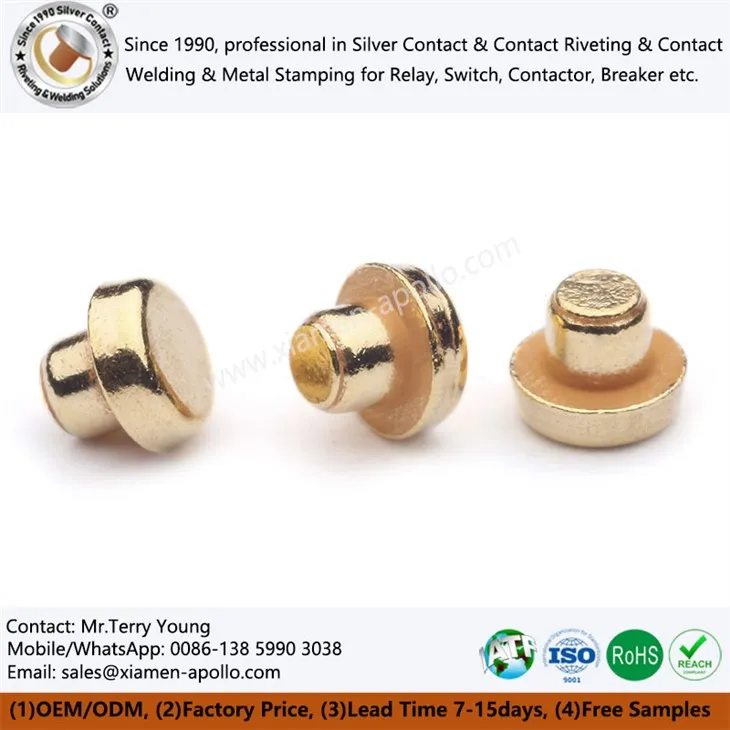

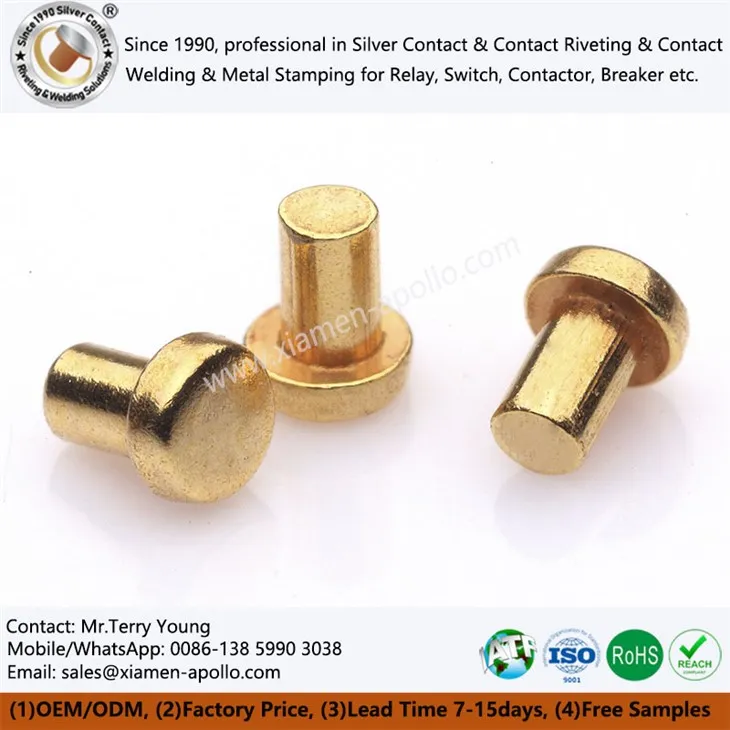

Gold Plated Contacts for Relays are cutting-edge functional components featuring a layer of ultra-thin (typically 1–3 μm) and exceptionally high-purity (99.99%) gold applied-via a precision electroplating process-to the working surfaces of high-performance silver or copper alloy contacts. Specifically engineered for relays subject to extreme demands regarding long-term contact resistance stability, signal integrity, and environmental resilience-such as the signal and power relays utilized in aerospace, aviation, high-precision test and measurement, high-end telecommunications, and medical equipment-their core value lies in delivering the ultimate reliability in circuit connectivity and signal fidelity at a remarkably low marginal cost.
Key Features
Exceptional Chemical Stability
The 99.99% pure gold plating is completely immune to oxidation and sulfidation, ensuring Au Plated Contacts' long-term reliability in harsh environments.
Ultra-Low Contact Resistance
Gold-plated electrical contacts provide a nearly lossless transmission path for microamp-level or millivolt-level signals.
Superior Resistance to Fretting Wear
A plating thickness of 1–3 μm for Gold Plated Relay Contacts effectively withstands surface abrasion caused by high-frequency vibration.
Highly Reliable Substrate Support
The composite or tri-composite structure ensures the mechanical rigidity of the contacts while simultaneously delivering excellent electrical conductivity.
Material Properties

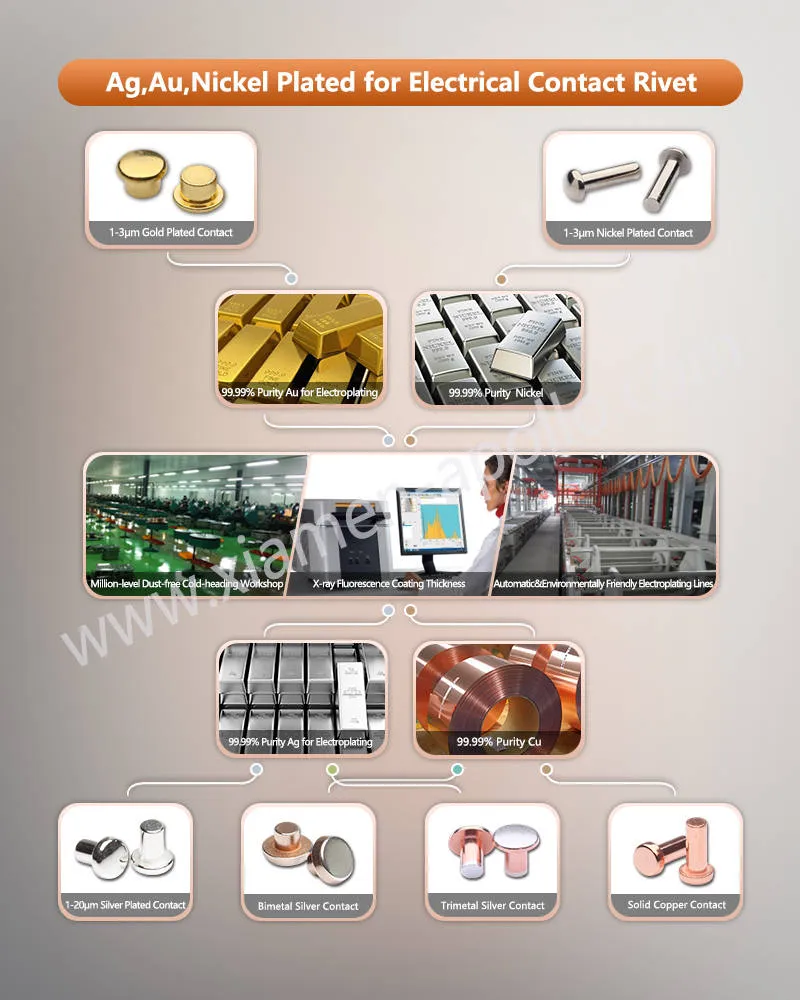

Substrate Material
Silver-nickel alloy or brass serves as the base material for the plating layers. Silver-nickel alloy offers high hardness and excellent conductivity, while brass provides good mechanical strength and low cost; the choice between the two is determined by the specific load requirements for Electrical Contacts Gold Plated.
Nickel Underlayer
With a thickness of 3–8 μm for Gold Plated Copper Contacts, the nickel layer establishes a strong chemical bond between the gold plating and the substrate. Simultaneously, it acts as a corrosion barrier, isolating the gold layer from the substrate to prevent potential electrochemical corrosion.
Gold Plating Layer
With a thickness of 1–3 μm for Au Plated Contacts and a purity of ≥99.99%, this layer provides the primary functional surface. If the gold layer is too thin, it loses its protective efficacy following wear; conversely, if it is too thick, the cost becomes excessive. A thickness of 1–3 μm represents the optimal engineering balance point.
Product Customization Process
Authoritative Certification for Special Processes
Electroplating processes for Gold Plated Electrical Contacts (including pre-treatment, plating, and post-treatment) must undergo rigorous process qualification and be subject to continuous monitoring of all critical parameters.

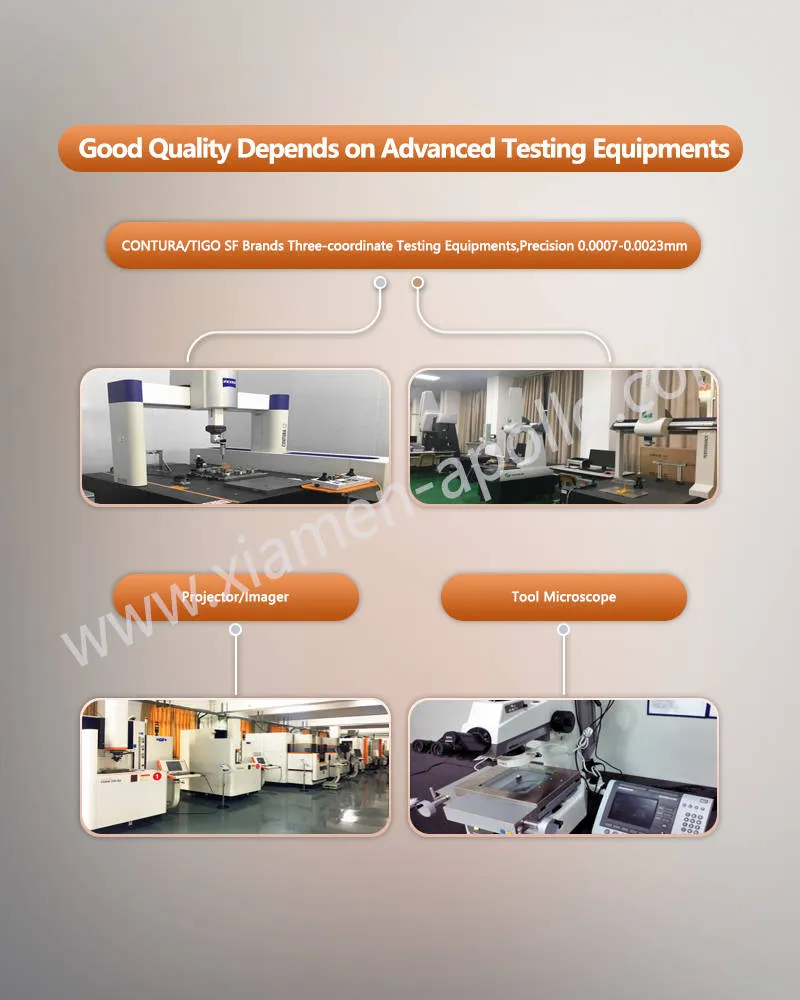

Destructive and Non-Destructive Testing of Plating Performance
In addition to routine inspections, periodic cross-sectional metallographic analysis for Gold Plated Relay Contacts, SEM/EDS compositional analysis, and porosity testing (e.g., via the nitric acid vapor method) are conducted.
Environmental Stress Screening and Life Verification
Electrical Contacts Gold Plated samples-either integrated within the complete relay assembly or tested independently-must undergo a comprehensive suite of environmental reliability tests (including temperature cycling, mechanical shock, vibration, steady-state damp heat, salt spray, mixed flowing gas, etc.) as well as life testing.
contact us
If you are seeking Gold Plated Contacts for Relays, military electronics, communication equipment, or precision switches, we invite you to contact us for samples, plating specifications, and customized contact solutions. We are ready to provide professional support tailored to your specific application requirements.
