What is Contact Welding?
For OEMs producing relays, switchgear, and LV apparatus, material selection alone does not define component suitability. The Contact Welding must preserve electrical continuity, with the carrier substrate simultaneously delivering the mechanical support and the necessary cross-section for load current.

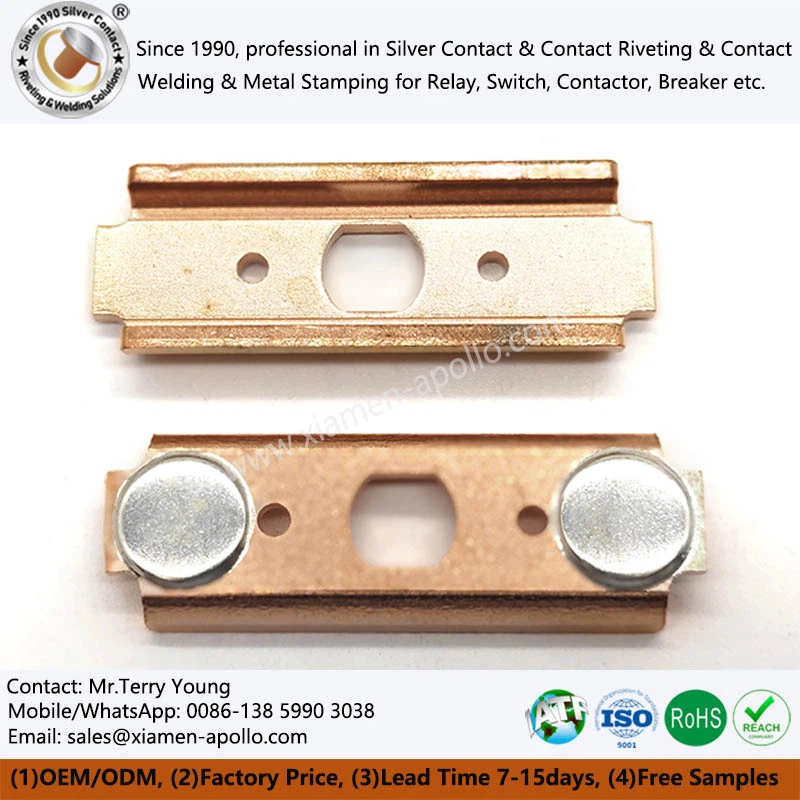

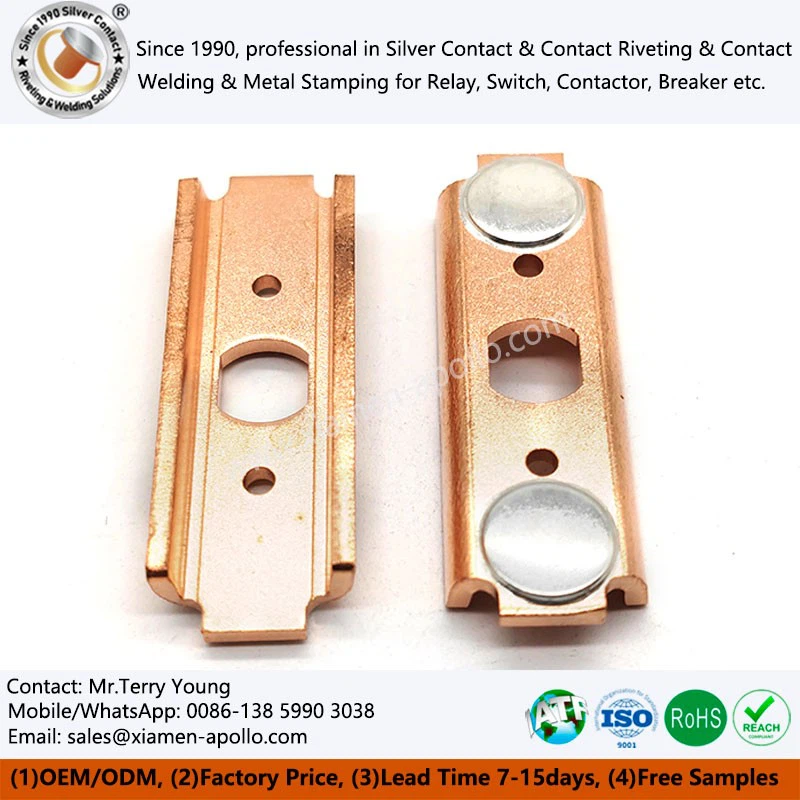

These welded subassemblies integrate a silver-based contact layer with a copper or brass terminal base. The optimal joining method is a function of the contact metallurgy, carrier shape, rated current, mechanical pull-off force, and production throughput. While resistance welding remains the standard approach for fastening contacts to conductive arms, repeatable outcomes depend upon managing weld pressure, heat input, timing, electrode wear, and the physical placement of each contact piece.

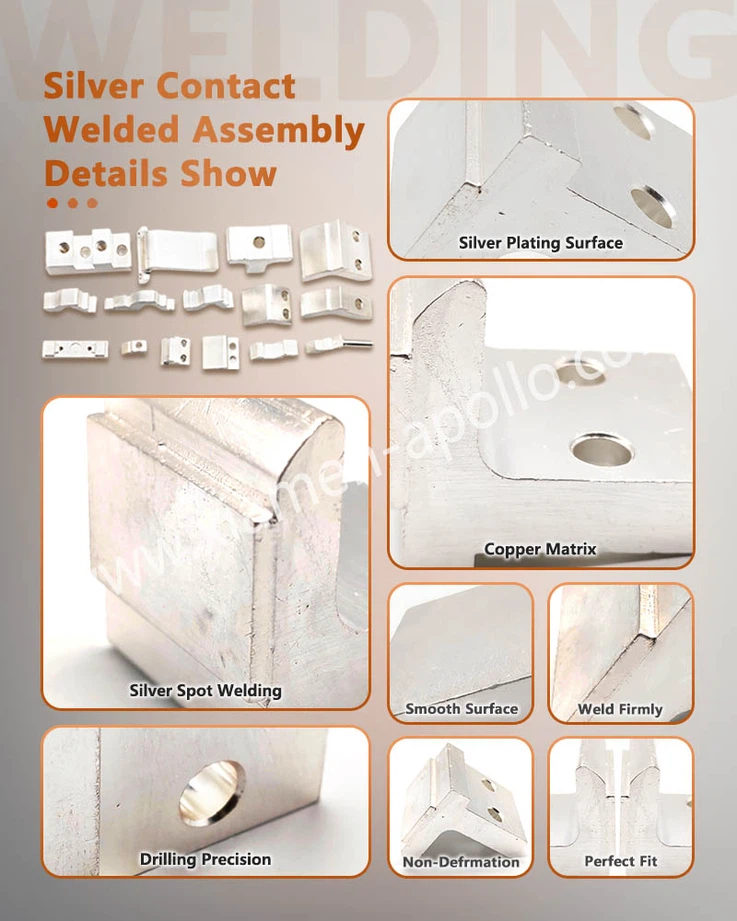

Technical Specifications & Materials of Silver Contact Welded Assembly for Contactor
| Technical Parameters | Specification Value |
| Electrical Conductivity | 80 − 95% IACS |
| Shear Strength (Bonding) | 150 − 220 MPa |
| Contact Hardness | 70 − 110 HV |
| Contact Resistance | 0.3 − 0.8 mΩ |
Manufacturing Process & Engineering Control of Copper Bars Silver Contact Joining
High‑Frequency Induction Heating: Utilizing localized medium‑frequency and high‑frequency induction generators (700 − 900 °C ), our Copper Contact Silver Welded process achieves rapid thermal input with a minimal heat‑affected zone, preventing metallurgical degradation of the precious metal tip.
Automated Feeding & Alignment: Production lines integrate high‑precision vibratory bowl feeders with closed‑loop optical sensors and robotic grippers, ensuring exact placement of silver buttons onto stamped copper bases before thermal joining.
Interfacial Metallurgy Optimization: Contact Joining Brazing filler metals flow uniformly via capillary action across the interface, eliminating micro‑voids, porosity, and delamination risks during high‑frequency mechanical cycling.
In‑Line Quality Assurance: Every batch of Precision Welding for Copper Part undergoes destructive shear testing, optical profile projection, and automated resistance screening to verify structural integrity and compliance with strict automotive and industrial standards.
Frequently Asked Questions about Welded Ag Contact Assemblies
Can Welded Ag Contact Assemblies be customized from drawings?
+
-
Yes. Contact geometry, substrate profile, material grade, welding position, and dimensional requirements can be developed from customer drawings or samples. For engineering review, the drawing should identify critical dimensions, material requirements, electrical ratings, and inspection criteria so the welding process can be evaluated against the finished component.
What information is required for a Copper Contact Silver Welded quotation?
+
-
A quotation normally requires the contact material, substrate material, component drawing, contact dimensions, welding position, electrical rating, expected order quantity, and inspection requirements. Providing these details at the RFQ stage reduces technical assumptions and allows tooling, process selection, sample development, and production requirements to be assessed together.
What is the typical minimum order quantity (MOQ) for wholesale orders?
+
-
Standard configurations have an MOQ starting at 1,000 pieces, while fully customized OEM prototypes can be scheduled with flexible batch sizes for initial R&D testing.
Are silver‑nickel or silver‑cadmium oxide options available?
+
-
We supply diverse contact material grades including AgNi10, AgNi15, AgSnO2, and AgCu, matched precisely to your electrical load requirements and environmental compliance mandates.
What lead time can engineering teams expect for custom tooling?
+
-
Custom stamping dies and automated welding fixture setups typically require 10 to 15 days from final drawing approval to the initial sample of Silver Contact Stamped Welding Assemblies.
contact us
Ready to upgrade your relay and switch manufacturing lines with factory-direct Contact Welding? Contact our engineering team today to submit your technical drawings, request material test data samples, or discuss custom wholesale volume pricing.
