Product Introduction
products description

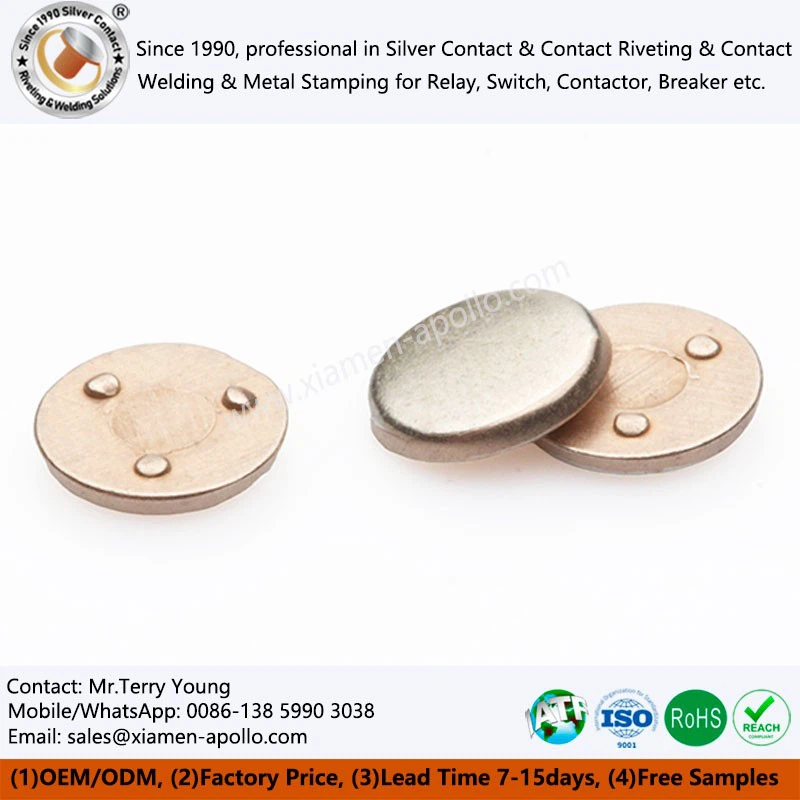

Brazed Silver Contact Points are integral to the efficient operation of numerous electrical and electronic systems. The button Contacts, typically made of silver or silver alloys, possess excellent electrical conductivity. Silver Contact Brazing is a sophisticated process that fuses these contacts onto terminals, creating Brazed Contact on Terminal. This results in Brazed Electrical Contacts that are highly reliable, ensuring seamless electrical transmission in a vast array of applications.
Product Parameters
| Material Composition | Silver alloys with carefully calibrated percentages of other elements such as copper or nickel. The silver content is optimized to balance conductivity and mechanical strength. For instance, a common alloy might have 92.5% silver and 7.5% copper. |
| Contact Size | Ranging from miniature buttons Contacts with diameters as small as 1mm for microelectronics to large ones exceeding 10mm for heavy-duty industrial applications. The thickness can vary from 0.5mm to several millimeters, depending on the current-carrying requirements. |
| Brazing Temperature | Controlled within a narrow range, usually between 650°C and 750°C for most silver alloys. This temperature is crucial as it affects the microstructure of the joint and the overall performance of the Brazed Silver Contact Points. |
| Rated Current and Voltage | Capable of handling currents from a few microamperes in sensitive electronic circuits to over 1000 amperes in industrial power systems. Voltage ratings can extend up to 10kV or more, depending on the insulation and design. |
Product Details
Surface Finish
The buttons Contacts are often electroplated with a thin layer of gold or palladium. This not only further improves conductivity but also provides enhanced corrosion resistance, especially in harsh environments.
Brazing Alloy Selection
The choice of brazing alloy is based on the specific silver alloy of the contact, the terminal material, and the application requirements. For example, a silver copper-phosphorus alloy might be used for joining silver contacts to copper terminals in a power distribution application.
Contact Geometry
The edges of the Brazed Silver Contact Points are carefully rounded or chamfered to prevent damage to the mating surface during installation and operation. This also helps in reducing the likelihood of arcing.
Product Usage Scenarios
Electrical Switches
In high-performance switches used in aerospace and defense applications, where reliability and long service life are crucial. The brazed silver contacts ensure precise switching action and minimal contact resistance.
Relays
In automotive relays that control various electrical functions, the Brazed Electrical Contacts can handle intermittent high currents and rapid switching cycles without overheating or failing.
Motor Starters
Industrial motor starters rely on these Welding Button Contacts to handle the inrush currents during motor startup. The robust brazed joint can withstand the mechanical and thermal stresses associated with this operation.
Power Distribution Systems
In high-voltage substations, the contacts are used in circuit breakers and disconnect switches. Their ability to handle high voltages and currents while maintaining a stable connection is vital for the safe and efficient distribution of electricity.
Trust in Our Team
Our team includes metallurgical experts who have in-depth knowledge of silver alloys and brazing metallurgy. Their expertise ensures the optimal selection of materials and brazing parameters.
Our customer service team is available 24/7 to address any inquiries or concerns. We provide technical support not only during the sales process but also throughout the product's lifecycle.
We have a history of collaborating with leading research institutions and universities. This partnership enables us to stay at the forefront of technological advancements and incorporate the latest research findings into our products.
We have a reputation for ethical business practices and strict confidentiality. Our customers can trust us with their proprietary designs and projects.
