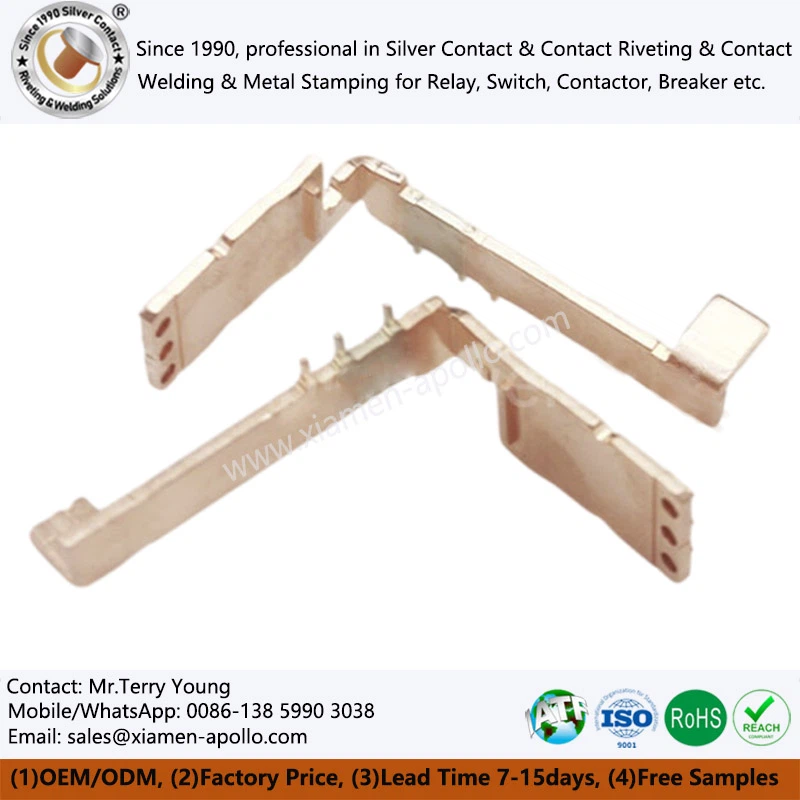

What is the Latching Relay Manganin Shunt?
The Latching Relay Manganin Shunt is a resistive current‑sampling part fitted within magnetic latching relays. It introduces precise resistance into the relay current loop; circuits measure operating current by detecting the voltage drop across the component. The resistive body adopts manganese‑copper alloy, while terminals can use copper or other specified conductive materials. Resistive and conductive sections can be optimized to match relay electrical and mechanical demands.
Its geometry must adapt to relay housing, terminal layout, current path, and sampling circuits. Assembly‑induced mechanical stress should be controlled, as deformation of the manganin zone will alter resistance. Manufacturing follows validated CAD drawings, engineering documents, or physical samples. Design parameters cover manganin grade, conductor material, resistance value, tolerance, terminal style, dimension, forming profile, connection points and inspection standards.
Structural Features of Latching Relay for Smart Energy Meter
Resistive Element
Bar Shape Shunt Resistor is fabricated from high‑purity copper manganese strip material, providing a stable resistivity of 0.48 × 10⁻⁶ Ω·m at 20℃.
Terminal Extensions
For Magnetic Shunt for Latching Relay, terminal extensions are formed from high‑conductivity C1100 electrolytic copper to minimize junction heating and contact resistance.
Transition Joint
For Latching Relay for Smart Energy Meter, the transition joint is formed through high‑energy electron beam welding to establish a uniform diffusion boundary layer without filler materials.
Surface Protection
Tin‑plated copper terminals (3 − 8 μm) prevent atmospheric oxidation and facilitate secure internal relay busbar connection.
Assembly & Operating Notes of Shunt Copper for Energy Meter
This shunt works as a built‑in sampling component inside magnetic latching relays; the latching state is achieved by the relay's internal permanent‑magnet mechanism, not by this shunt part.
For the Shunt Resistor of Electricity Meter, mechanical stress during relay assembly may shift shunt resistance values. Avoid applying mechanical deformation or bending forces on the manganin resistive zone.
For Shunt Copper for Energy Meter, final sampling performance depends heavily on the welding quality and assembly tolerance of the surrounding relay housing structure.
Manganin Copper Shunt for Electronics Energy Meter is not designed for standalone external use; it is engineered to integrate directly into complete latching‑relay internal assemblies.
Frequently Asked Questions about Manganin Shunt Resistor
What is the primary function of a Manganin Shunt Resistor?
+
-
It serves as a precision current‑sensing resistor that converts primary electrical load currents into a proportional millivolt voltage signal for internal measurement circuits.
Does this Shunt Resistor of the Electricity Meter provide the magnetic latching or holding function for the relay?
+
-
No, the physical latching and bistable holding state is generated exclusively by the relay's internal permanent‑magnet mechanism, while this component performs only current sampling.
How are the copper terminals joined to the manganin resistive strip?
+
-
The dissimilar metals are joined using high‑vacuum electron beam welding, creating a robust metallurgical diffusion bond with near‑zero joint resistance.
Can the resistance value and physical dimensions of Terminal Block Manganin Shunt be customized for specific relay designs?
+
-
Yes, our factory customizes ohmic values, terminal layouts, mounting hole positions, and strip thicknesses based on customer‑provided 2D/3D engineering drawings.
What resistance tolerance levels can be achieved during high‑volume production?
+
-
Standard production maintains ±1% resistance tolerance, with custom sorting down to ±0.5% available for precision metering applications.
