Shunt Terminal For Magnetic Latching Relay 100A
Shunt Terminal For Magnetic Latching Relay 100A

Shunt Terminal For Magnetic Latching Relay 100A

Shunt Terminal for Magnetic Latching Relay 100A is a copper‑manganin composite component made by electron‑beam laser welding and precision stamping. It performs current sensing and overload monitoring for magnetic latching relays. Strict process control secures stable thermal‑drift performance; drawing inspection and sample validation are offered for custom projects.
Send Inquiry

What is the Shunt Terminal for Magnetic Latching Relay 100A?



Shunt Terminal for Magnetic Latching Ralay 100A

The Shunt Terminal for Magnetic Latching Relay 100A is a copper‑manganin composite current‑sensing component fabricated by electron‑beam laser welding followed by precision stamping. This part converts high current into measurable voltage signals, supporting current sampling, overload protection, and circuit monitoring inside magnetic latching relays for smart energy meters. Controlled welding process delivers low contact resistance and stable thermal‑drift performance under 100A operating current. As a direct manufacturer, we carry out full‑range incoming material inspection and multi‑stage performance testing. We support structural dimension, resistance parameter, and surface‑finish customization against customer drawings or samples. Free pre‑production samples are available for verification, together with DFM analysis. We can fulfill both prototype and volume orders for metering‑device manufacturers.



Material advantages of  Manganin Shunt Resistor

Extremely Low Resistance, Low Heat Loss

Manganese copper possesses excellent electrical conductivity. Combining the high conductivity of copper with the strengthening effect of manganese, the terminals generate extremely low heat when transmitting currents up to 100A, effectively preventing poor contact or burnout due to overheating for Manganin Shunt Resistor.



High Strength and Wear Resistance

The addition of manganese significantly improves the alloy's hardness and wear resistance. This means that during high-frequency magnetic latching switch operations, the Electric Current Measure Manganin Shunt can resist minor mechanical shocks and friction, maintaining long-term structural integrity.



Corrosion and Oxidation Resistance

The oxide film formed on the surface of manganese copper in air is stable and dense, effectively preventing further corrosion and ensuring long-term reliability of the Micro Ohm Manganin Welding Shunt Resistor in humid or highly corrosive environments.



Manganese copper strip for Shunt Terminal For Magnetic Latching Ralay 100A





Core Advantages of Electron Beam Welding for Magnetic Shunt Customized




Deep Penetration and Narrow Heat-Affected Zone

The electron beam has extremely high energy density, achieving complete fusion with a penetration depth of 1.0-2.0 mm. This results in a large weld width-to-depth ratio and a heat-affected zone width of less than 0.5 mm. This minimizes performance degradation caused by heat input, particularly protecting the temperature-sensitive electrical properties of the manganese-copper layer for Magnetic Shunt Customized.





Pure Weld and High Strength

Welding in a high-vacuum environment effectively prevents oxidation of active metals such as copper and manganese. The weld zone has extremely low impurity content, and the bonding strength can reach over 95% of the base material strength, ensuring no interlayer delamination occurs under subsequent stamping and long-term current impact for Micro Ohm Manganin Welding Shunt Resistor.





Precise fusion control

High-precision beam current and scanning control ensure the uniformity of the manganese-copper layer thickness across the entire width of the composite strip. This is crucial for ensuring consistent sampling resistance in batch Electric Current Measure Manganin Shunt.



Shunt Terminal For Magnetic Latching Ralay 100A Production Process





Customized Services of Electric Current Measure Manganin Shunt



We support full-dimensional customization services. Based on the customer's Manganin Shunt Resistor drawings and samples, we can flexibly customize the terminal structure dimensions, manganese bronze/copper strip thickness, resistance parameters, output voltage, lead type (quick-connect, pin-type), surface treatment (passivation, tin plating, silver plating), installation method, etc., to accurately adapt to the customer's assembly and scenario requirements for the magnetic latching relay. We provide free sample verification before mass production to ensure that the Electric Current Measure Manganin Shunt sample's welding quality, resistance accuracy, size specifications, and assembly compatibility meet the customer's design requirements before starting mass production, thus mitigating procurement risks. We also provide DFM analysis and process optimization to help customers optimize the terminal and magnetic latching relay compatibility design and reduce costs.

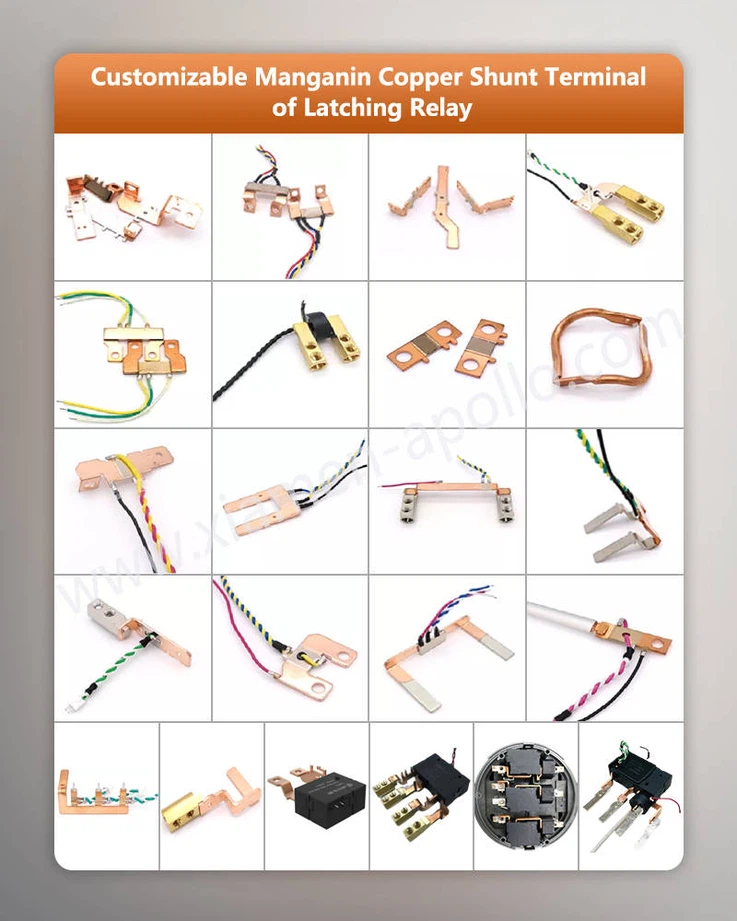

Customizable Shunt Terminal for Magnetic Latching Ralay 100A







contact us



For technical information, sample support, or customized solutions for the Shunt Terminal for Magnetic Latching Relay 100A, please contact our engineering team. We will respond quickly to your project needs and provide a professional evaluation.



Mr. Terry from Xiamen Apollo
