Products Description

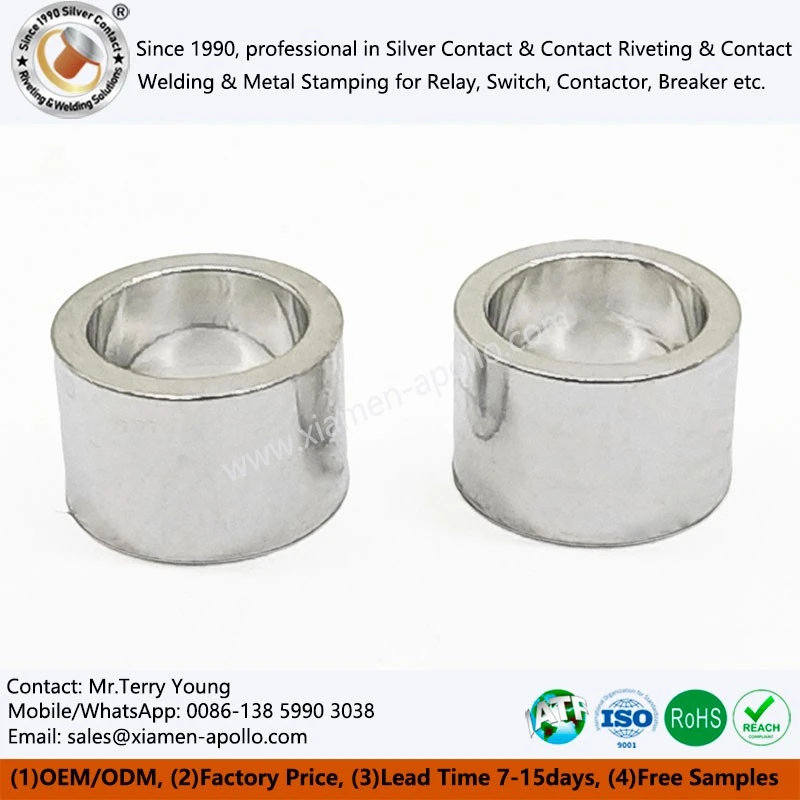

The Pump Shaft Sleeve is a critical component used to protect and extend the life of rotating shafts in a wide range of pump systems. This cylindrical metal component is designed to be mounted over the shaft, particularly in areas exposed to high friction, corrosive media, or wear caused by packing and seal rings. Acting as a replaceable surface, the shaft sleeve prevents direct contact between the pump shaft and the mechanical seals, packing, or abrasive fluids, thereby reducing shaft wear and simplifying maintenance.

Available in various styles such as Front Sleeve Bearing, Bearing Sleeve, Metal Bushing, and Rear Sleeve Bearing, pump shaft sleeves are tailored to meet a variety of hydraulic, mechanical, and environmental requirements. They are widely used in centrifugal pumps, chemical process pumps, vertical turbine pumps, and other types of rotating equipment operating under harsh conditions.

Material Advantages

Metal Bushings

Common materials include bronze, brass, and other alloys. These materials exhibit excellent wear resistance, capable of withstanding long-term friction from high-speed rotating shafts while maintaining good dimensional stability. They ensure precise fits with the Bearing Sleeve. Additionally, they possess high strength to withstand significant loads and shocks during operation. For example, bronze bushings have a low coefficient of friction and good embeddability, allowing them to accommodate minor contaminants in the operating environment and protect the shaft surface. Brass bushings offer good corrosion resistance and are suitable for use in humid or chemically corrosive environments.

Bearing Sleeves

Often made of materials like cast iron or steel. Cast iron bearing sleeves have good wear resistance and vibration-damping properties, effectively reducing noise and vibrations during operation. They also have relatively low costs. Steel bearing sleeves exhibit high strength and hardness, capable of providing strong support for rotating shafts. Through appropriate heat treatment, their performance can be further enhanced. Some Front Sleeve Bearings may also incorporate materials like plastic or composite materials. Plastic bearing sleeves have low friction coefficients, do not require lubrication, and are corrosion-resistant, making them suitable for applications where lubrication is difficult or in chemically corrosive environments. Composite material bearing sleeves combine the advantages of various materials, such as high strength, wear resistance, corrosion resistance, and good embeddability, offering excellent overall performance.

Stainless Steel Strip for Pump Shaft Sleeve

Multiple Models Customization

Size and Dimension Customization

Pumps come in various sizes, and the shaft sleeves need to be precisely tailored to fit the corresponding shafts. Manufacturers can customize the inner diameter, outer diameter, and length of the shaft sleeves, Front Sleeve Bearings, Rear Sleeve Bearings, and Metal Bushings to ensure a perfect fit. This customization is crucial for maintaining the proper clearance between the shaft and the sleeve, which affects the performance and efficiency of the pump. For example, in large-scale industrial pumps, the shaft sleeves may need to be significantly larger in diameter and length compared to those used in smaller domestic or commercial pumps.

Material and Surface Treatment Customization

As mentioned earlier, different materials have different properties. Manufacturers can customize the material of the shaft sleeve components based on the specific operating conditions of the pump. In addition to material selection, surface treatment options can also be customized. Surface treatments such as plating (e.g., chrome plating), coating (e.g., anti-corrosion coatings), and heat treatment can be applied to enhance the performance of the Metal Bushings. Chrome plating, for instance, can improve the wear resistance and corrosion resistance of metal bushings, while anti-corrosion coatings can protect the entire shaft sleeve assembly from chemical attack.

Design and Function Customization

The design of the shaft sleeve can be customized to meet specific functional requirements. For example, in pumps that operate in high-vibration environments, the design of the Front Sleeve Bearing and Rear Sleeve Bearing can be modified to better absorb and dampen vibrations. Some applications may require the integration of additional features such as sealing mechanisms within the Bearing Sleeve, to prevent fluid leakage. Custom-designed metal bushings can also be created to accommodate unique shaft geometries or to provide specific load-bearing capabilities.

Customized Stainless Steel Screw Blot Nut Washer Assembly Set of Hardware Fasteners

Terminal Applications

In the Water Pump Industry

Rear Sleeve Bearings are essential components of water pumps. They protect the pump shaft from wear and corrosion while reducing friction between the shaft and other components, improving pump efficiency and reliability. Bearing sleeves and metal bushings are also widely used in water pumps, providing support and reducing friction for the pump shaft. They help ensure the stable operation of the pump and extend its service life.

In the Oil Pump Sector

Bronze Bushings play a crucial role in oil pumps. They withstand the friction and wear caused by high-speed rotating shafts in harsh environments like high temperatures and high pressures. Their excellent material properties ensure the stable operation of the pump under such conditions. Bearing sleeves and metal bushings are also commonly used in oil pumps.

In Chemical Pumps

Sleeve Bearings must resist corrosion from chemicals in chemical pump applications. Bearing sleeves and metal bushings made of corrosion-resistant materials, such as certain plastic or composite material bushings, and metal bushings with special coatings or treatments, are often selected to ensure the pump operates normally in corrosive environments.

In Other Fields

Shaft Sleeves, bearing sleeves, and metal bushings are also used in various other mechanical equipment, such as compressors, blowers, and motors. They provide support and reduce friction for rotating shafts, ensuring smooth operation of the equipment and extending its lifespan.

Application of Pump Shaft Sleeve
