Products Description

Self-Clinching Bolt are high-reliability fasteners specifically designed for thin sheet metal materials and sheet metal structures. Through a clamping process, the bolt forms a strong mechanical locking structure with the base material during installation, achieving permanent fixation without the need for welding, tapping, or additional connectors. They are widely used in industrial applications where high structural strength, assembly efficiency, and aesthetic consistency are required. These fasteners are particularly suitable for thin sheet metals that are unsuitable for threading, such as aluminum, stainless steel, low-carbon steel, and surface-treated sheets. While ensuring connection strength, they significantly improve overall assembly reliability and production consistency.

Core Product Properties and Features

Cold-Pressure Locking Mechanism

Axial pressure is applied using specialized riveting equipment, causing the Self-Clinching Stud post to embed into the sheet metal and forcing localized plastic deformation. This creates a tight mechanical interlocking structure, eliminating the risk of loosening or slippage after connection. This differs from the thermal deformation issues of traditional welding and the fragile threads of tapping.

Integrated Assembly Effect

After riveting, the Self-Clinching Threaded Fastener is flush with the sheet metal surface, without protrusions or burrs. No secondary grinding is required, ensuring a clean appearance and avoiding interference with subsequent assembly processes. This is suitable for precision components with stringent surface flatness requirements.

Thin Plate Adaptability Optimized

The post structure, designed specifically for the characteristics of thin sheet metal, effectively distributes pressure, preventing cracking and deformation of the sheet metal during riveting. Even high-strength thin sheets with poor ductility can achieve stable connections.

Diverse Specifications and Forms

Covering multiple specifications including metric and imperial units, the head type for Self-Clinching Screw can accommodate countersunk, round, and cylindrical heads. Thread precision meets international standards, accurately matching the space and connection requirements of different thin sheet metal assembly scenarios.

Self-Clinching Compression Screw

Lean Manufacturing and Process Advantages

Precision Cold Forging

The Self-Clinching Compression Screw body is formed using a multi-station cold forging process, ensuring complete metal flow lines, high mechanical strength, and stable dimensional accuracy.

Special Materials and Heat Treatment

High-quality alloy steel or stainless steel is used, and precise heat treatment processes are employed to achieve the optimal balance between thread strength and Self-Clinching Screw body toughness, meeting the requirements for riveting deformation.

Advanced Surface Treatments

A variety of surface treatment options are available depending on the application environment, such as environmentally friendly galvanizing, Dacromet coating, and nickel plating, providing excellent corrosion resistance and wear resistance for Self-Clinching Threaded Fastener.

Production Process of Self-Clinching Bolt

Detailed Specifications

Material and Surface Details

High-quality substrate surfaces are free of oxidation spots, impurities, and cracks. After surface treatment, the coating is uniform and dense, without sagging or peeling. Self-Clinching Stud exhibit a uniform metallic luster, and electropolished products have smooth, clean surfaces free of scratches and burrs. Threaded surfaces are regular, without missing or misaligned teeth, ensuring smooth and seamless meshing.

Structural Precision Details

The column dimensions are precise, with clear and uniform multi-segment tooth profiles. Angles and depths meet design requirements, allowing for a tight fit with the sheet metal after riveting. The transition between the head and column is smooth, with no stress concentration points, preventing breakage during riveting. Countersunk products have a natural curved transition, becoming completely flush with the sheet metal after riveting, without any step-like feel.

Connection Quality Details

After riveting, the sheet metal shows no cracks or deformation, with a tight, gap-free interface. Pull-out and shear force resistance meet standards, and the preload attenuation rate is low during vibration testing. Thread concentricity is precise, ensuring no deviation in subsequent assembly and guaranteeing component positioning accuracy for Self-Clinching Threaded Fastener.

Compatibility Details

The product clearly indicates the applicable sheet thickness and material compatibility type, making it convenient for customers to quickly select the right model; the packaging uses anti-oxidation and anti-collision materials to ensure that the threads and surface coating are not damaged during transportation, and Self-Clinching Screw can be used immediately after opening the box.

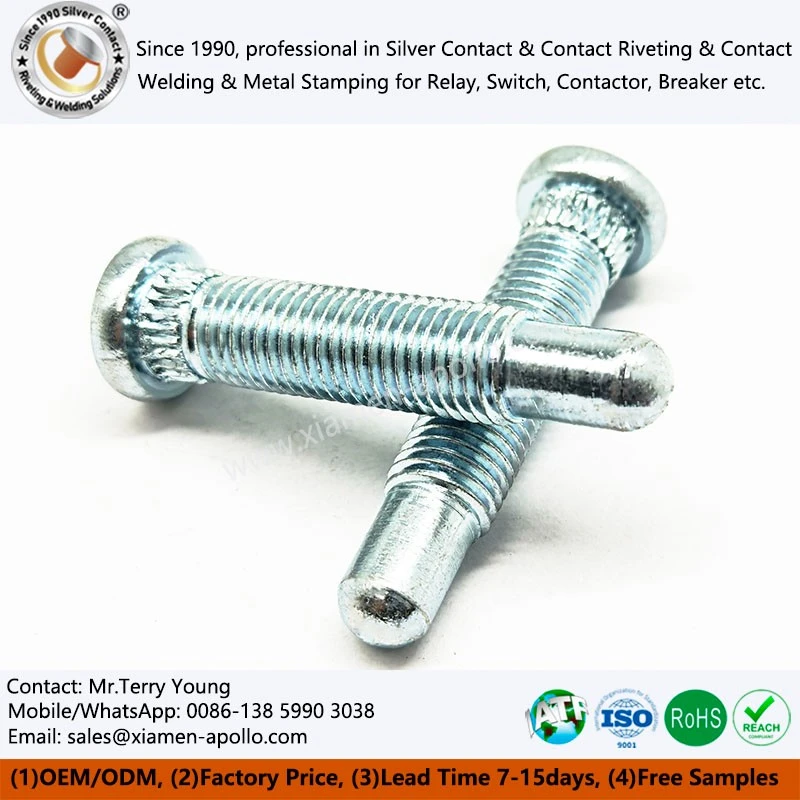

Self-Clinching Bolt Details Show
