Products Description
Aluminum Mounting Bracket Tube Clamps are widely used as structural connectors in new energy systems, photovoltaic mounting systems, power equipment, rail transit, and industrial automation. They are primarily used to secure pipes, brackets, frames, or equipment components, and feature robust structure, lightweight, corrosion-resistant, and weather-resistant properties. Our aluminum alloy bracket pipe clamps are precision-manufactured from high-strength aluminum using CNC stamping and automated assembly technology, ensuring excellent mechanical properties and longevity in a variety of challenging environments.
Typical Applications for Precision Stamped Aluminum Mounting Bracket Tube Clamp
| New Energy Field of Aluminum Alloy Solar Panel Mounting Bracket |
Aluminum Alloy Mounting Systems for Photovoltaic Power Plants Energy Storage System Battery Module Connection Components High-Voltage Direct Current Transmission Support Structures |
| Rail Transit of Aluminum Wall Bracket |
Car Body Frame Supports Cable Channel Fixing Fixtures Air Conditioning and Electrical Module Mounting Fixtures |
| Industrial Automation Equipment of Aluminum Accessories for Solar Mounting |
Frame Structure Mounting Connectors Pneumatic/Hydraulic Piping Fixtures Industrial Robot Motion Platform Brackets |
| Communication/Electromechanical Cabinet Equipment of Aluminum Solar Middle Clamp |
Cabinet Pipe Supports Communication Tower Cable Support Components Data Center Precision Wiring Auxiliary Structures |

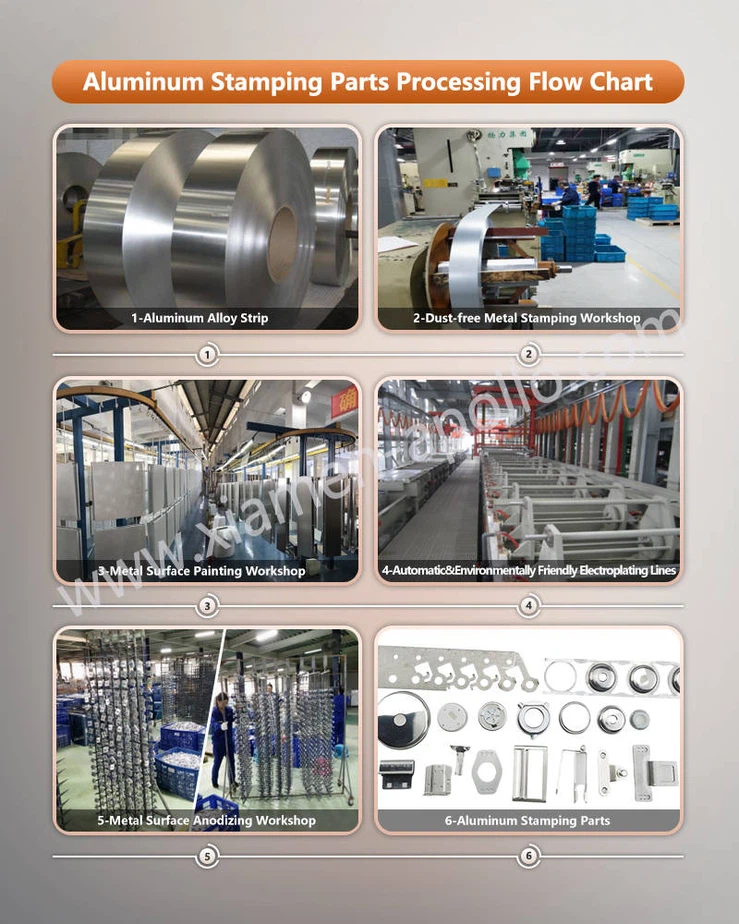

Production Process: CNC Precision, Strict Process Control, and Consistent Quality
1. Raw Material Cutting
High-quality aluminum alloy coils or sheets, such as 6061-T6 and 5052-H32, are selected and cut using precision slitting or CNC shearing to ensure accurate dimensions and neat edges.
All raw materials are accompanied by material certificates and are subject to spot checks for alloy composition and mechanical properties before delivery.
2. High-Speed CNC Stamping
Utilizing a high-speed punch press and specialized molds for multi-station stamping, shearing, forming, flanging, and punching are completed in a single process, ensuring structural integrity and zero deformation.
The molds are equipped with automatic feeding and positioning systems, effectively improving batch consistency and processing efficiency, with an average daily production capacity of over 20,000 pieces.
3. CNC Precision Machining and Tapping
Critical areas such as threaded holes and snap-in locations undergo secondary CNC milling and tapping to enhance Aluminum Accessories for Solar Mounting assembly accuracy and ensure secure fastening to external components.
Thread accuracy meets 6H standards, ensuring long-term stability during frequent assembly and disassembly in industrial equipment.
4. Surface Treatment (Anodizing/Spraying/Electrophoresis)
A variety of surface treatments are available based on customer needs, including anodizing, sandblasting, and electrophoretic coating, effectively enhancing corrosion resistance and appearance consistency.
All processes comply with RoHS standards, are chromium-free, and nickel-free, ensuring safety and environmental protection.
5. Assembly and Inspection
Pipe clamps that require component assembly are assembled manually or automatically, and 100% inspected for appearance, dimensions, threads, and functionality.
Precision equipment such as CMMs, salt spray testing, and hardness testing is used to ensure that finished Aluminum Photovoltaic Bracket Accessories meet customer drawings and specifications.
6. Packaging and Shipping
All products are packaged in moisture-proof and impact-resistant neutral packaging or customer-specified packaging. Standard pallet packaging is supported, and export customs documents are provided.
Each batch of Aluminum Alloy Waterproof Solar Rails is accompanied by a test report and barcode label, ensuring full traceability throughout the entire process.
Material Advantages
High-Strength Performance
6061-T6 aluminum alloy for Aluminum Solar Middle Clamp: With a yield strength of ≥240 MPa, it is widely used in aviation structures, industrial rail equipment, and new energy frameworks.
5052-H32 aluminum alloy: With excellent weldability and corrosion resistance, it is suitable for complex stamping parts and long-term outdoor use.
01
Lightweight Design
Aluminum alloy has a density of only one-third that of steel, resulting in a lighter weight for the same volume, significantly reducing system structural loads.
This reduces transportation costs and installation labor, making it particularly suitable for photovoltaic, new energy vehicle, and high-altitude structure projects with stringent lightweight requirements for the Aluminum Wall Bracket.
02
Excellent Corrosion Resistance
The material itself has excellent antioxidant properties, and surface treatment further enhances corrosion resistance, enabling long-term, stable use in coastal, high-humidity, and high-salt spray environments.
The neutral salt spray (NSS) test duration is ≥ 1000 hours, outperforming most comparable metal components.
03
Environmental Protection and Sustainability
The material is RoHS and REACH compliant, non-toxic, and complies with EU and North American export regulations.
The Aluminum Wall Bracket is 100% recyclable, aligning with global trends in green manufacturing and sustainable development.
04
