What is High-strength Beryllium Copper Stamping?

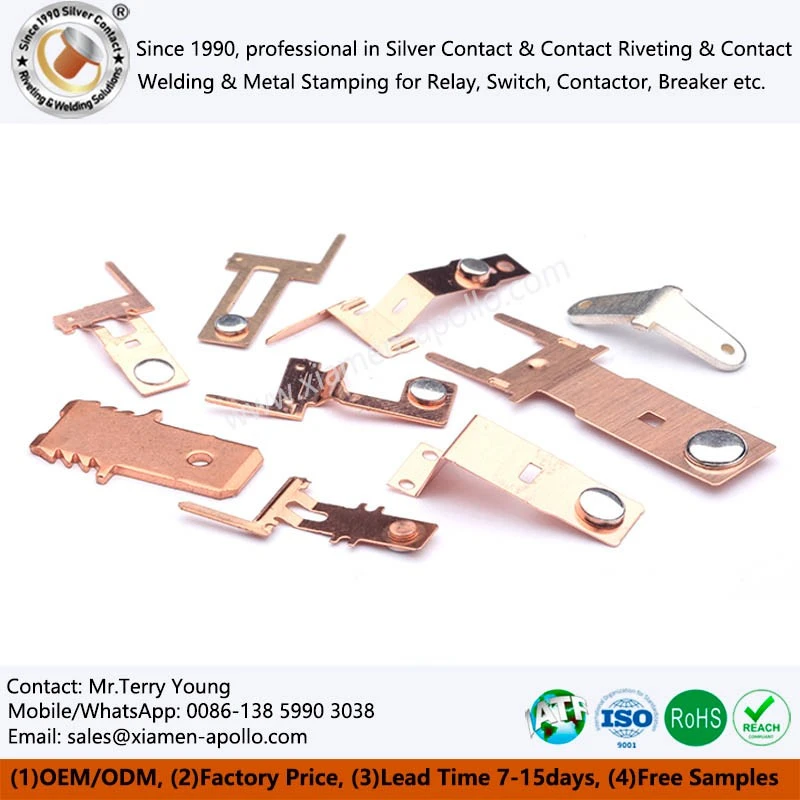

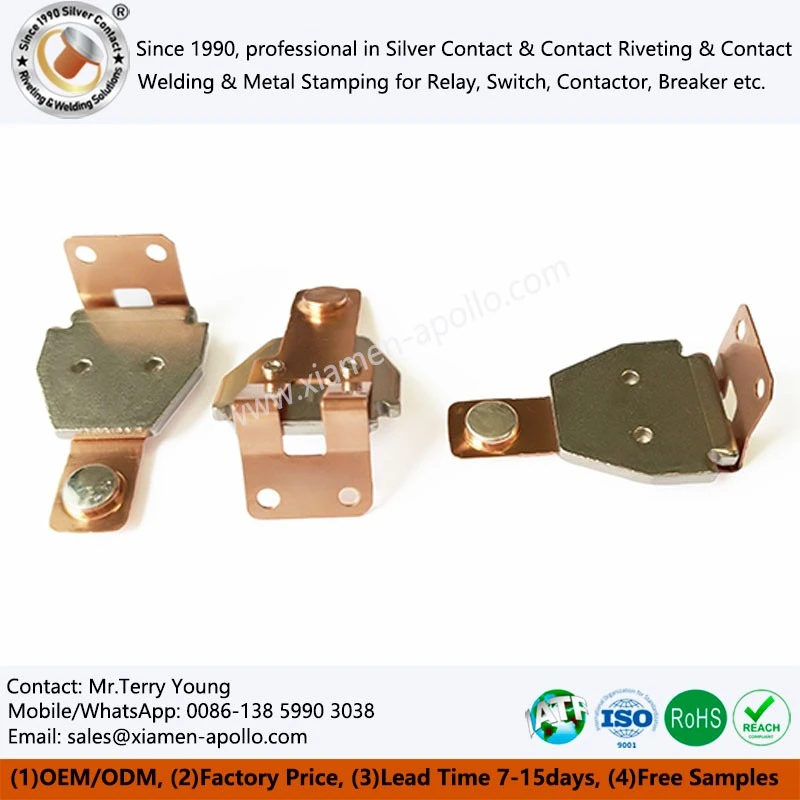

High-strength Beryllium Copper Stamping produces precision spring components from copper-beryllium alloy for relay moving springs, electrical spring contacts and compact switching mechanisms. The stamped BeCu structure provides the elastic restoring force required to maintain component position during repeated mechanical displacement. Unlike general-purpose copper stamping, this material selection focuses on the relationship between tensile strength, elastic limit, electrical conductivity and cyclic deformation. Available manufacturing operations include precision blanking, punching, bending and forming, with dimensional control down to ±0.02 mm for specified features. Components can be manufactured from customer drawings and supplied as flat stamped parts or formed spring profiles for relay, smart-meter and low-voltage control assemblies.
Detailed Technical Specification Data Sheet of Cu Beryllium Spring Contacts
| Technical Parameter | Specification Value |
|---|---|
| Electrical Conductivity | 22 - 30% IACS |
| Elongation Rate | 5 - 8% |
| Strip Thickness Range | 0.10 - 2.00 mm |
| Dimensional Tolerance | ± 0.01 mm |
| Operating Temperature | Up to 200 °C |
Our Custom Manufacturing Capabilities of BeCu Electrical Contact Spring
Custom dimensions & geometry according to drawings or physical samples
Optional heat‑treatment for different hardness & spring‑life requirements
Plating options: silver‑plating, gold‑plating upon request
Small‑batch prototype samples & mass‑volume production supported
Compliant with ISO, RoHS, REACH standards
Frequently Asked Questions about Beryllium precision stamping
Which downstream industries primarily utilize these Beryllium Copper Springs?
+
-
These precision-formed components are engineered specifically for direct integration into smart meter latching relays, automotive power window switches, miniature circuit breakers, aerospace sensor terminals, and heavy-duty industrial low-voltage contactor mechanism assemblies operating under stringent electrical conditions.
What international quality standards and material certifications are met?
+
-
All internal manufacturing processes comply strictly with ISO 9001 and IATF 16949 quality management protocols, with incoming raw material batches fully certified for RoHS and REACH compliance.
Are these stamped components resistant to high-temperature stress relaxation?
+
-
Yes, precipitation-hardened beryllium copper maintains up to 80 percent of its initial spring load capacity even when continuously exposed to elevated operating temperatures up to 200 degrees Celsius for extended operational durations without experiencing permanent mechanical stress relaxation or deformation.
What dimensional tolerances can be achieved during high-speed metal stamping?
+
-
Utilizing precision multi-station progressive stamping dies and advanced optical inspection systems, linear dimensions and bend angles are maintained within strict tolerances down to plus or minus 0.01 millimeters, ensuring precise alignment in automated miniature electromechanical component assembly lines.
How does heat treatment affect the hardness of C17200 copper alloy components?
+
-
Solution-annealed strip stock undergoes controlled thermal aging at precise temperatures between 315 and 340 degrees Celsius, precipitating micro-phase particles that permanently increase material hardness from initial soft rolled states up to 350 to 450 Vickers hardness units.
Send your engineering drawings and annual volume requirements now for a direct factory assessment of High-strength Beryllium Copper Stamping, including tooling development, ±0.02 mm precision stamping, and mechanical inspection.
