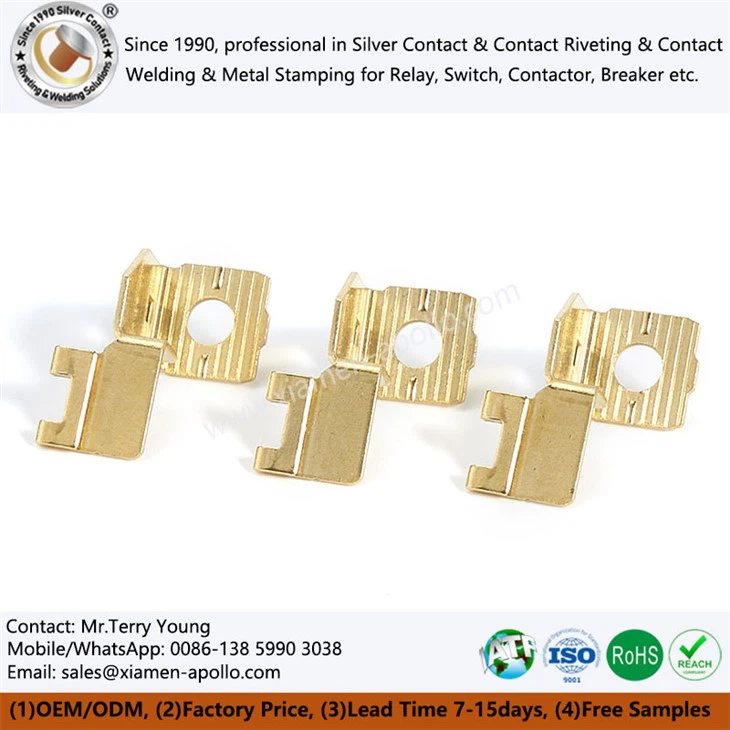

What are the Electrical Brass Press Parts For Switch Sockets?
Our Electrical Brass Press Parts For Switch Socket combines excellent quality with environmental protection. In terms of material, the selected brass has excellent environmental friendliness and high recyclability. Together with our production process that follows environmental protection standards, it greatly reduces the impact on the environment and conforms to the trend of sustainable development. Using advanced high-precision stamping technology, from mold design and manufacturing to precise control of the stamping process, complex shapes are accurately presented, ensuring the high stability and reliability of the product in electrical and mechanical performance, adapting to various types of switches and sockets, and setting an industry quality model.
Technical Specifications & Materials of Brass Sheet Metal Stamping
| Parameter | Specification / Value |
|---|---|
| Tensile Strength (Rm) | 370 – 540 MPa (depending on temper selection) |
| Yield Strength (Rp0.2) | 250 – 480 MPa |
| Hardness Level | 1/2H (HV 110–140) / H (HV 140–170) |
| Thickness Range | 0.20 mm – 2.50 mm |
| Dimensional Tolerance | Pitch ±0.01 mm, Hole ∅ ±0.015 mm, Overall ±0.03 mm |
High-precision stamping process for Electrical Brass Switch Socket Part
Advanced mold system: Using high-precision molds, carefully designed and manufactured using CAD/CAM technology, to ensure accurate dimensions, perfect molding of complex shapes, and extremely small tolerances, ensuring the high precision of Switch Terminal Accessories Brass Stamping.
Precise pressure control: Equipped with advanced stamping equipment, it accurately controls the pressure, size, speed, and stroke, optimizes parameters according to the characteristics of brass sheets, makes the stamping process stable, effectively avoids uneven material deformation, and ensures accurate dimensions.
Automated detection and correction: Introduce an automated online detection system to monitor the size and shape of Brass Pressed Contacts for Electrical Sockets in real time. Once a deviation is found, it will automatically provide feedback and adjust the stamping parameters immediately to efficiently ensure product accuracy and reduce scrap rate.
Frequently Asked Questions about Customized Brass Stamping Contact Parts
What dimensional tolerances are achievable on high-speed progressive stamping dies?
Our progressive dies maintain pitch tolerances within ±0.01 mm and bending angle tolerances within ±0.5°. Critical internal hole dimensions are routinely held to ±0.015 mm using optical vision feedback.
Can you supply customized brass press parts based on our CAD drawings?
Yes. We build custom progressive stamping tooling directly from DWG, STEP, or IGES files. Our engineering team reviews draw ratios and bend radii to optimize tool longevity before production.
What is the typical lead time for custom tooling and initial sample approval?
Progressive die design, manufacturing, and initial sample inspection reports (ISIR/PPAP) are completed within 10 to 15 calendar days, depending on part geometry and plating requirements.
How are Brass Sheet Metal Components packaged to prevent surface oxidation during ocean freight shipping?
Finished brass press parts are packed with VCI (Vapor Corrosion Inhibitor) desiccants inside heat-sealed heavy-duty polybags, shipped in corrugated cartons secured on export-grade heat-treated pallets.
contact us
Partner directly with a certified source factory for custom, high-precision Electrical Brass Press Parts for Switch Socket production. Contact our engineering team today to submit your RFQ and CAD drawings for a comprehensive technical proposal.
