Copper Sheet Stamping For Electric Relay

Copper Sheet Stamping For Electric Relay is a critical manufacturing process used to produce intricate, high-conductivity components for electric relays. By transforming pure copper or brass sheets into precision-engineered contacts, terminals, and connectors, this technique ensures optimal performance in relay systems where durability, conductivity, and reliability are paramount.

Send Inquiry

Product Standard Configurations

Surface Treatments: Standard surface finishes include cleaning, degreasing, and anti-tarnish coatings. These treatments protect the copper from corrosion, enhance solderability, and maintain optimal electrical performance over time.

Dimensional Stability: The Copper Sheet Stamping for Electric Relay is designed to maintain its shape and dimensions under varying temperature and humidity conditions. This stability is vital for long-term functionality in electrical devices that operate in diverse environments.

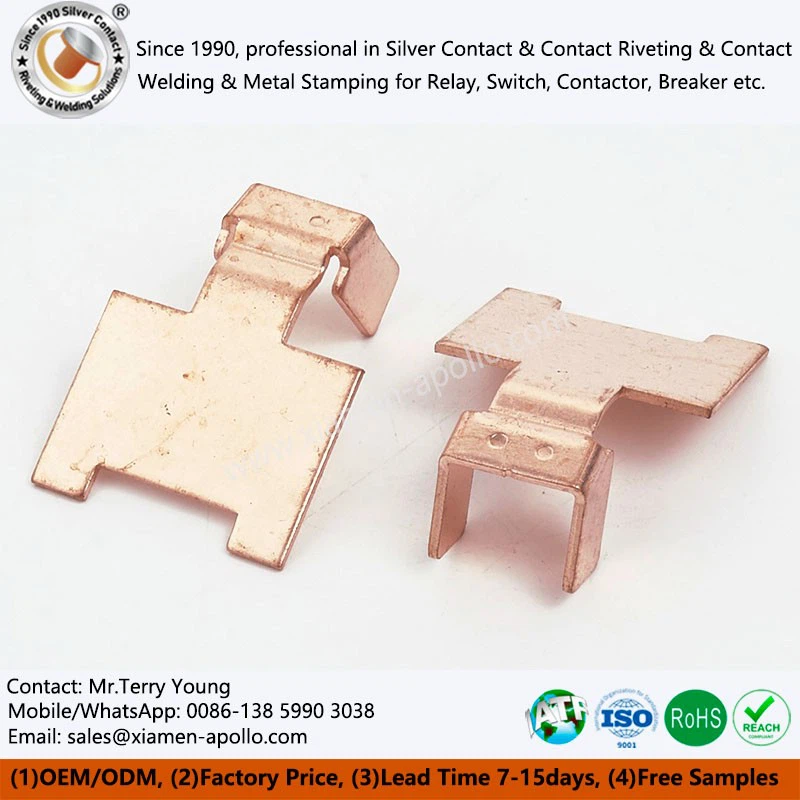

Copper Sheet Stamping for Electric Relay

Manufacturing Processes

Finishing Operations	After stamping, parts undergo deburring to remove sharp edges, followed by cleaning to eliminate contaminants. Additional processes, such as plating applied to improve conductivity, corrosion resistance, and solderability for High Precision Progressive Stamping Copper Parts.
Quality Inspection Protocols	Each batch of Copper Sheet Metal Stamping Bending Parts undergoes rigorous inspection using advanced measuring tools like coordinate measuring machines and optical comparators. Inspections cover dimensions, surface quality, and mechanical properties to ensure compliance with design specifications.

Copper Sheet Stamping for Electric Relay Characteristics

Forming Processes

Deep Drawing: Suitable for creating cup-shaped or hollow components, deep drawing involves stretching a copper sheet into a die cavity using a punch. The process of Copper Sheet Stamping for Electric relays requires careful consideration of material thickness and ductility to prevent wrinkling or tearing, resulting in seamless and durable parts.

Embossing and Coining: These processes are used to create raised or recessed patterns on the copper surface. Embossing adds texture or identification marks, while coining produces precise, high-quality surface finishes. Both enhance the functional and aesthetic properties of the stamped parts.

Application of Copper Sheet Stamping for Electric Relay Switches Circuit Breakers Contactors etc

Details Display

Joint Integrity	For parts with bent or folded sections, the joints are strong and well-formed. The bending radius is carefully controlled to avoid weak points, ensuring the Copper Sheet Stamping for Electric Relay can withstand repeated use and mechanical stress.
Marking and Identification	Clear and durable markings, such as part numbers or logos, are applied using methods like laser engraving or stamping. These markings facilitate traceability throughout the supply chain and simplify inventory management.

Copper Sheet Stamping for Electric Relay Details Show
