What are Precision Copper Stamped Parts?
Precision Copper Stamped Parts are critical electrical components used in low-voltage circuit breakers, electromechanical relays, automotive ECUs, and consumer electronics to ensure reliable current distribution and structural stability. They provide superior electrical conductivity, excellent thermal dissipation, and high mechanical formability. Our factory manufactures customized stamped parts with advanced progressive die stamping and CNC tooling capabilities, delivering consistent quality and cost-effective bulk supply for global OEMs and ODMs.
Technical Specifications & Materials of Precision Copper Stamped Parts
| Electrical Conductivity | ≥ 100% IACS |
| Tensile Strength | 200 - 380 MPa (Temperature-dependent) |
| Burr Height Limit | < 10% of material thickness |
| Plating Thickness | Tin: 3-5 μm; Silver: 2-8 μm |

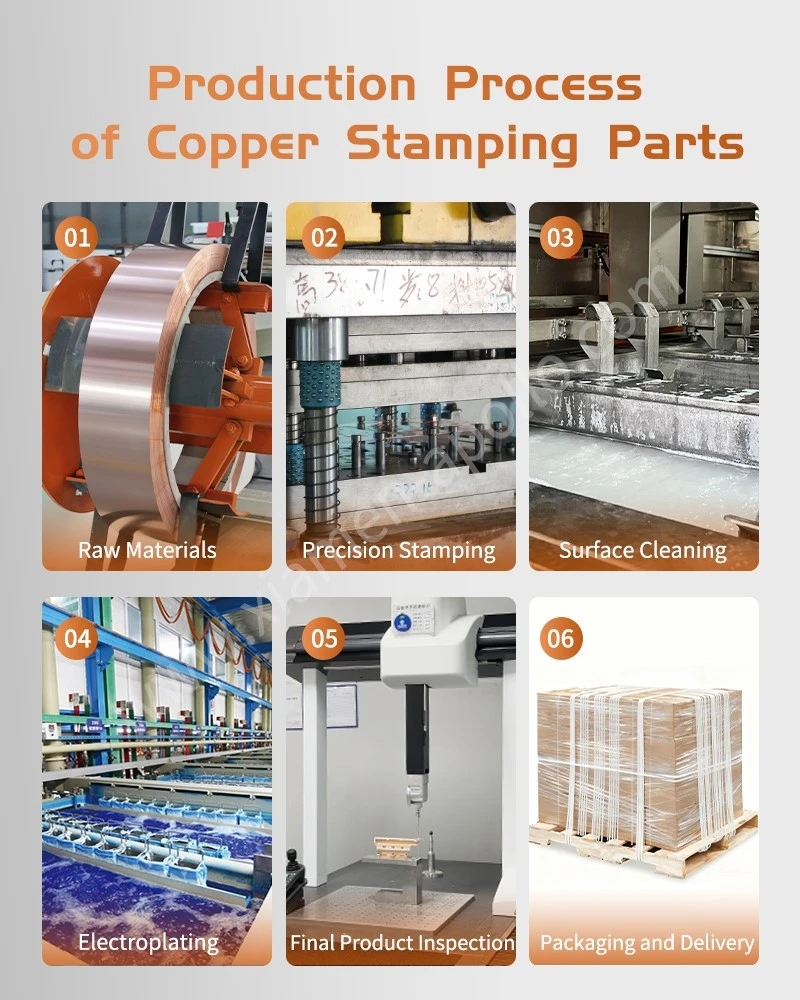

Precision Engineering & Stamping Capabilities of Precision Copper Stamped Parts
Advanced tooling design and high-tonnage mechanical presses allow us to produce Electrical Contact Copper Metal Stamping Terminal with tight geometrical tolerances and complex configurations without secondary operations.
Progressive Die Stamping
- Tooling Design: In-house CAD/CAM engineering teams design multi-station progressive dies utilizing carbide inserts for extended tool life and burr minimization.
- Press Capacities: High-speed mechanical presses range to accommodate complex bending, piercing, coining, and blanking sequences for Copper Alloys Metal Stamping.
- In-Line Inspection: Automated optical inspection (AOI) systems integrated into press lines monitor critical dimensions in real time to catch deviations instantly.
Dimensional Precision
We consistently maintain linear tolerances of ±0.01mm and angular tolerances within ±0.5°. The precision of Switch Socket Precision Custom Metal Stamping Parts guarantees seamless assembly into automated housing units for relays and miniature circuit breakers.
Frequently Asked Questions about Precision Copper Stamped Parts
What copper material is used for Electrical Contact Copper Metal Stamping Terminal?
+
-

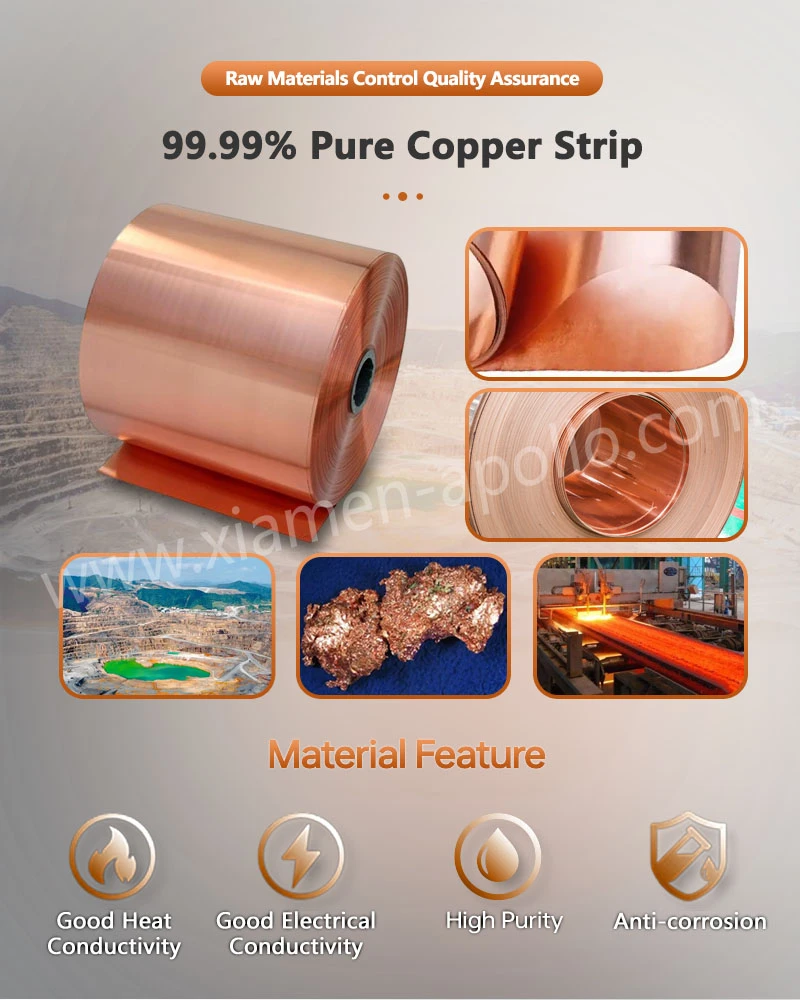

Products typically use high-purity copper materials such as C1100 or equivalent grades. The copper purity reaches ≥99.9%, providing high electrical conductivity, good thermal performance, and forming capability for electrical components.
Why are Copper Stamped Pressing Cutting Assembly Parts preferred for relay and switch applications?
+
-
Product provide efficient current transmission with low electrical resistance. Their excellent ductility also allows complex terminal and conductive structures to be formed while maintaining dimensional accuracy during assembly.
How do you control burrs on Copper Alloys Metal Stamping?
+
-
We utilize precision progressive dies with optimized clearance ratios matched to the material thickness. Automated in-line deburring and optical sorting ensure burr heights remain strictly below 10% of the material gauge.
Can you provide custom plating options for these Copper Stamped Components?
+
-
Yes, we offer custom electroplating services, including bright tin, matte tin, silver, nickel, and selective gold plating. Plating thickness ranges from 2 to 10 microns to suit specific corrosion resistance and solderability requirements.
Do your copper stamping operations comply with automotive quality standards?
+
-
Our manufacturing facilities operate strictly under IATF 16949 quality management systems. All raw materials and finished products of High Precision Connecting Copper Sheet Metal Stamping are fully certified and compliant with RoHS and REACH environmental regulations.
Contact Us
Partner with our engineering team to integrate high-reliability Precision Copper Stamped Parts into your next-generation electrical assemblies. Contact our direct factory engineering desk today to submit your CAD drawings, request material test reports, or schedule prototype sampling for your production line.
