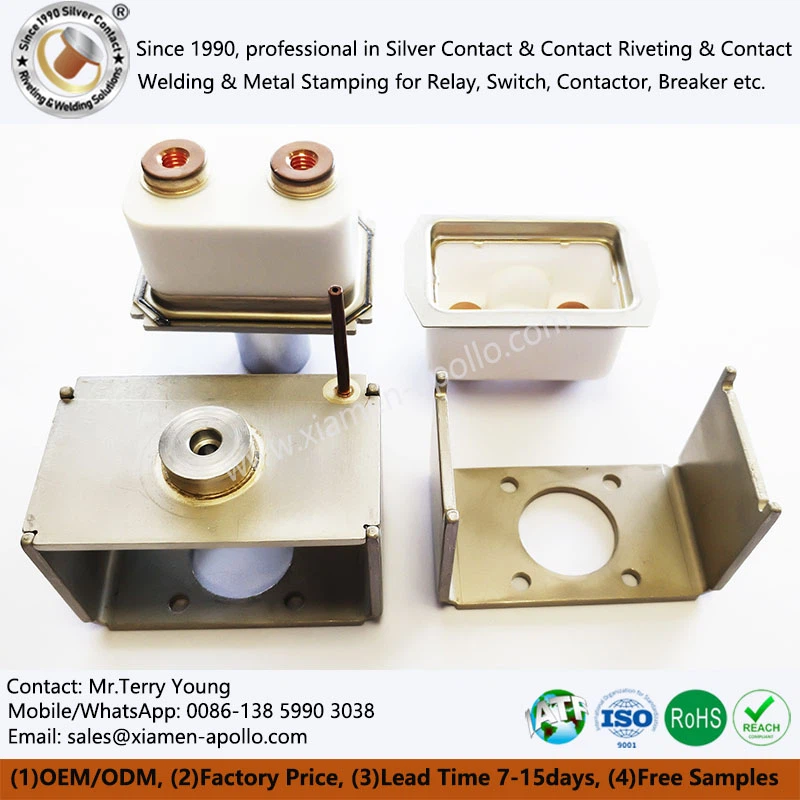

This EV Relay Bracket Pure Iron is precision‑stamped from high‑grade electrical pure iron. It delivers electromagnetic shielding & high mechanical strength, supports customisation, resists vibration & corrosion, widely used for EV, HEV, commercial vehicle and charging station DC relay systems.
Send Inquiry
What is the EV Relay Bracket Pure Iron?



Product Profile


EV Relay Bracket Pure Iron is a stamped support component for electric-vehicle relay and contactor assemblies, where mounting alignment, bracket geometry and magnetic-component positioning can affect downstream assembly. Producing parts to an approved drawing helps reduce fitting corrections, avoidable scrap and assembly-line interruptions. Material grade, thickness, hole positions, flatness and surface protection should be confirmed before tooling release. Factory-direct manufacturing supports prototype evaluation and production-volume planning, allowing purchasing teams to assess tooling, unit cost and inspection requirements together rather than comparing piece price alone.

EV Relay bracket Pure Iron

Working Environment Performance of Iron bracket for EV DC Relay



Environmental Parameter Operational Limit Material Response
Operating Ambient Temp. -40°C to +150°C Zero thermal degradation of core magnetic flux density.
Vibration Tolerance 20G, 10–2000 Hz High yield strength prevents mounting foot fatigue failure.
Humidity Exposure 95% RH at 65°C Trivalent Zn-Ni passivation stops intergranular moisture attack.
Thermal Shock Cycle -40°C to +125°C, 500 cycles Plating maintains strict adhesion without peeling or flaking.



Pure Iron Coil





Technological Innovation Strength of HVDC Relay skeleton Pure Iron



High-Precision Progressive Stamping

Our multi-station progressive stamping tooling maintains slot tolerances within ±0.01 mm across 1,000,000 stroke cycles. Tooling is constructed using ASP-23 powder metallurgy carbide inserts to eliminate burr formation beyond 0.02 mm, preventing mechanical interference inside high-voltage DC contactor enclosures.

01

Controlled Vacuum Decarburization Annealing

To eliminate internal stress and recrystallize grain boundaries, every customized EV relay bracket undergoes continuous atmosphere-controlled magnetic annealing at 850°C. This thermal process lowers coercive force below 40 A/m, guaranteeing rapid demagnetization upon coil de-energization.

02

Automated Inline Vision Inspection

Integrated optical vision camera systems verify 100% of critical planar geometries and hole pitch measurements directly inside the press line at speeds exceeding 100 parts per minute. Defective parts with warp or twist exceeding 0.05 mm are automatically ejected before surface treatment.

03

Fully Customized Surface Engineering

Engineering custom plating processes-including eco-friendly trivalent chromium passivation and zinc-nickel alloy deposition-allows our factory to control layer thickness within a strict 8 - 12 micron envelope. This eliminates post-plating thickness buildup that disrupts mechanical air gap specifications in sensitive relay armatures.

04

Dust-free Workshop of Metal Stamping

















Core Product Value of EV HVDC Contactor Pure Iron Bracket



Value Driver Engineering & Process Mechanism Commercial Benefit for Buyers
Zero Residual Magnetism High-temperature atmosphere annealing removes structural lattice strain. Eliminates armature release delay and sticking in high-voltage contactors.
Precision Mounting Fit High-tonnage stamping presses ensure structural flatness within 0.03 mm. Reduces automated assembly jam rates on relay manufacturing lines to near zero.
Corrosion Protection Zn-Ni coating acts as a sacrificial layer against harsh road salt environments. Prevents iron oxide formation that degrades magnetic flux paths over time.
Optimized Tooling Cost In-house progressive die design and wire EDM tooling fabrication. Lowers NRE tooling investments by up to 30% for custom OEM projects.



Electrician Pure Iron Cold Rolled Steel for Relay CoreYokeArmaturelogo

Partner directly with a specialized China factory to engineer high-precision EV Relay Bracket Pure Iron tailored to your exact physical and magnetic specifications-contact our engineering team today to receive a comprehensive technical proposal and competitive wholesale quote within 24 hours.
