Products Description
Product Profile

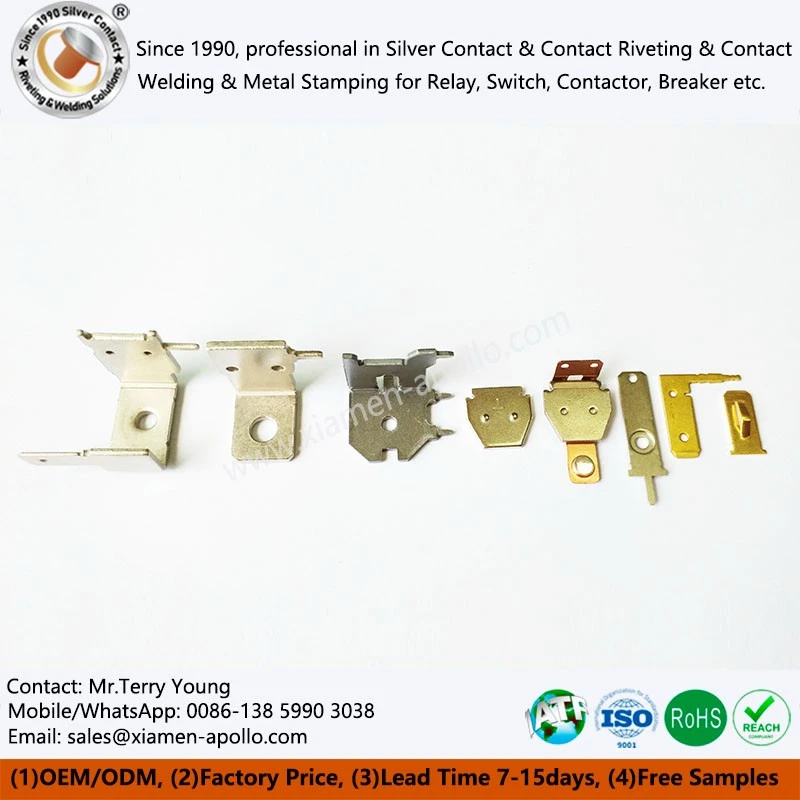

Our Pure Iron Plate Armature For Relay is a meticulously engineered component. It features a smooth and sleek metallic finish, similar to what one would expect from a high-quality Relay Armature Soft Magnetic Iron. The design is specifically tailored for optimal performance in relays, with particular emphasis on its application as the Armature for Electromagnetic EV Relay. These armatures play a pivotal role in the relay's operation, acting as the moving part that responds to the electromagnetic force.
Product Parameters
Material Purity
Composed of pure iron with a minimum purity level of 99.5%, ensuring excellent soft magnetic properties. This high purity allows for efficient magnetic flux conduction, which is crucial for the relay's functionality.
Magnetic Permeability
Exhibits a permeability value in the range of 5000 - 10000 μ₀ (where μ₀ is the permeability of free space), facilitating rapid magnetization and demagnetization. This property enables the armature to respond quickly to changes in the electromagnetic field.
Dimensions
Available in a variety of standard sizes to fit common relay housings. For example, the length can range from 10mm to 50mm, with a thickness of 0.5mm to 3mm, and a width adjustable according to specific application needs. Tolerances are held to within ±0.05mm for critical dimensions, ensuring precise fit and operation.
Hardness
Maintains a hardness level of approximately 80 - 120 HB (Brinell Hardness), providing the right balance between durability and machinability. This allows for easy shaping during manufacturing and reliable performance during the relay's lifespan.
Relay Armature Application in Relays
In conventional relay mechanisms, the Pure Iron Plate Armature For Relay functions as the pivotal element that facilitates the on-off switching operation. As electric current flows through the coil, the armature is drawn in, thereby either connecting or disrupting the electrical contacts to govern the electric current's path.
For electromagnetic relays used in Electric Vehicles (EVs), the Armature for Electromagnetic EV Relay assumes an especially critical function. It is designed to endure repeated switching operations and the rigorous demands of high-voltage, high-power environments inherent to EV technology. Its robustness ensures the continued reliability and efficiency of the vehicle's electrical system, which is vital for safety.
The armature's exacting motion and swift responsiveness are crucial for lessening contact bounce and curbing electrical arcing, phenomena that can hasten the wear and failure of the relay. Our Relay Terminal Armature is meticulously engineered to fine-tune these critical factors, thereby enhancing the overall dependability and longevity of the relay unit.
CNC and EDM for Pure Iron Stamping Dies
In our production workflow, we harness cutting-edge CNC (Computer Numerical Control) technology to fabricate the stamping dies for pure iron components. This sophisticated machinery guarantees an exceptionally precise and consistent formation of the die cavities, which is essential for the accurate reproduction of the Electrician Pure Iron Armature blueprint.
01
We incorporate Electrical Discharge Machining (EDM) for the intricate detailing and shaping of complex features that are beyond the capabilities of conventional machining techniques. EDM enables us to achieve geometrical precision at the micron level, thereby enhancing the operational efficiency and overall performance of the electromagnetic relay armature.
02
By combining the precision of CNC with the finesse of EDM, we produce dies that not only have an extended service life but also require minimal maintenance. This dual-technology approach ultimately leads to a reduction in manufacturing costs and maintains a uniform level of quality throughout the soft magnetic iron processing for relay armatures.
03
Our machining process is augmented with real-time monitoring and feedback systems. These systems are designed to immediately identify and rectify any discrepancies from the intended design parameters. This ensures that every single die manufactured adheres to the stringent quality benchmarks we set.
04
Packaging and Shipping
We take great care in packaging our Pure Iron Plate Armature For Relay to ensure it arrives at your facility in perfect condition. Each armature is individually wrapped in anti-static and moisture-proof packaging to protect against damage during transit.
For shipping, we partner with reliable logistics providers to offer a variety of options. Whether you need expedited shipping for urgent projects or standard shipping for cost-effective delivery, we have you covered. We provide tracking numbers so you can monitor the progress of your shipment at all times.
