What is Pure Iron Stamping for EV Relay Parts?

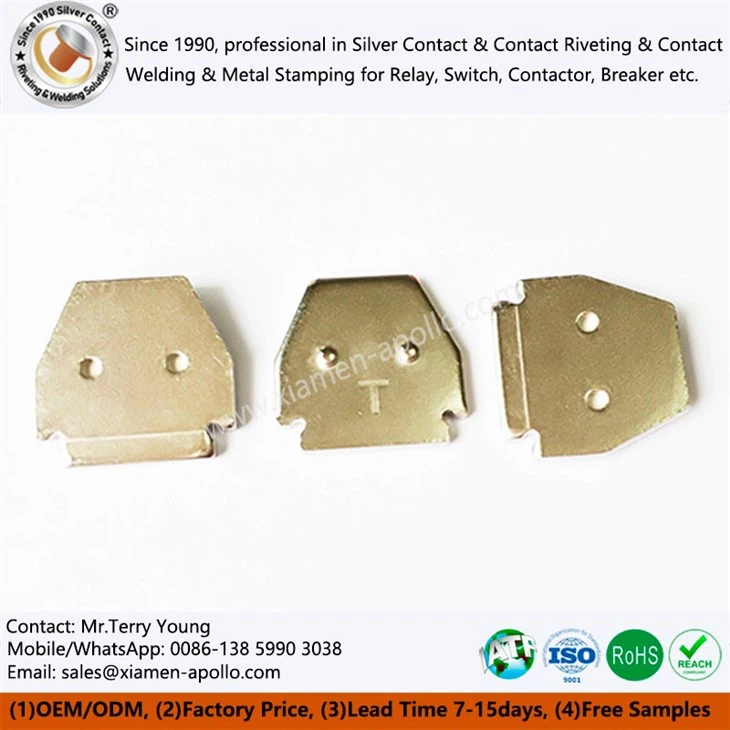

Pure Iron Stamping for EV Relay Parts is used to produce armatures and other magnetic components in electromagnetic relay mechanisms that control switching operations in electric vehicle auxiliary systems. Stamped parts can be manufactured to approved drawings, with material grade, thickness, magnetic requirements, forming geometry, and inspection criteria established during engineering review. For EV relay designers and procurement teams, material traceability, dimensional fit, magnetic response, and consistency between production batches should be confirmed before component approval.
In-Process Quality Inspection of steel part for EV relay
Shape Accuracy Inspection
Inspect the stamped armature profile against the approved drawing, including overall dimensions, mounting features, pole-face geometry, and flatness. Bending angles or curvature should be checked only where these features exist in the design.
01
Machining Allowance and Edge Inspection
Where secondary machining is specified, the drawing should define the required machining allowance and final dimensions. For stamping-only parts, inspection should instead focus on material thickness, sheared edges, burr height, burr direction and any specified edge condition.
02
Process Consistency Detection
Repeat production should use an approved process sequence and controlled tooling conditions. First-piece approval, periodic dimensional checks, and tool-wear monitoring help identify process drift.
03
Inspection Records and Nonconformance Control
The inspection plan should identify measurement equipment, sampling frequency, critical dimensions and acceptance criteria. Nonconforming parts should be identified and segregated according to the agreed quality procedure.
04
Custom Service & Supply Chain Capabilities of Electrician Pure Iron Armature
Progressive Tooling & Precision Stamping
In-house toolmakers build high-speed multi-stage progressive dies equipped with carbide inserts to support high-volume OEM automotive requirements. Stamping rates exceed several hundred strokes per minute while maintaining strict profile tolerances on intricate geometries, reducing per-unit costs for large-scale electric vehicle platforms.
Thermal Processing & Magnetic Restoration
To counteract work hardening caused by punching operations, stampings undergo high-temperature protective atmosphere annealing. Controlled cooling cycles optimize the grain size of the DT4C matrix, restoring nominal soft magnetic characteristics and ensuring batch-to-batch consistency in dynamic relay operating parameters.
Scalable B2B Supply Chain
Manufacturing operations feature dedicated automated assembly lines, custom tray packaging to avoid physical distortion during transport, and full material lot traceability. Logistics management supports VMI (Vendor Managed Inventory) and JIT (Just-In-Time) deliveries for global Tier 1 relay manufacturers and automotive system integrators.
Frequently Asked Questions about Electrical Pure Iron Stamping for EV Relay
How does DT4C pure iron compare to cold-rolled steel for Electrician Pure Iron Armature?
+
-
DT4C pure iron contains over 99.8% iron with minimal carbon content, offering higher magnetic permeability and significantly lower coercivity than standard cold-rolled steel. This ensures faster magnetic response and prevents residual magnetic sticking in high-voltage EV relays.
Why is vacuum hydrogen annealing necessary after stamping relay armatures?
+
-
Stamping and shearing induce mechanical stress that distorts the metal crystal matrix, degrading magnetic permeability and raising coercivity. Hydrogen annealing relieves internal strain, coarsens grain structure, and fully restores the soft magnetic properties required for stable relay operation.
What planar flatness tolerances can be maintained on thin pure iron stampings?
+
-
Through precision progressive tooling and flattened strip preparation, planar flatness is routinely held within ±0.02 mm. This level of precision eliminates air-gap variances that cause pull-in voltage fluctuations in automotive contactors.
What surface platings are recommended for soft magnetic pure iron relay parts?
+
-
Bright nickel (3-5 μm) or zinc-nickel alloys are standard options. These coatings provide robust corrosion protection against automotive atmospheric conditions while remaining thin enough to avoid increasing non-magnetic air gaps in the magnetic circuit.
Can pure iron stampings be customized for movable reed assemblies requiring riveted contacts?
+
-
Yes, progressive tooling accommodates integrated stamping, piercing, and in-die riveting of bimetal silver contacts onto pure iron reeds or spring supports, delivering complete sub-assemblies ready for relay insertion.
