Products Description

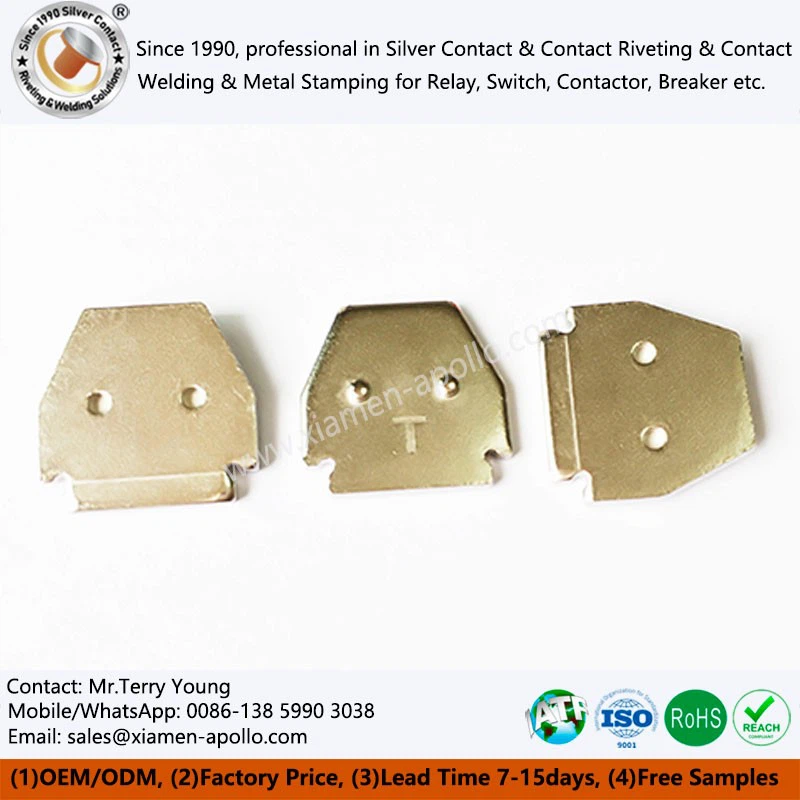

The Relay Armature Plate is an essential magnetic component in electromagnetic relay systems, enabling the mechanical switching action that lies at the heart of electromechanical signal control. As a key Armature for the Electromagnetic Relay, this part is responsible for converting the magnetic energy produced by the relay coil into mechanical motion, which opens or closes the relay's contact points.
The Role of the Armature in an Electromagnetic Relay
Magnetic Circuit Conduction
When an electric current passes through the coil of a relay, it generates a magnetic field. The soft magnetic iron armature acts as a movable core that completes the magnetic circuit, increasing flux density and maximizing magnetic force.
01
Mechanical Motion
Under the influence of the electromagnetic field, the armature pivots, bends, or shifts, physically moving to make or break the contact set. This motion causes the electrical contacts to open or close, depending on the relay's design.
02
Energy Conversion
The armature efficiently converts electromagnetic energy into mechanical displacement. The smoothness, speed, and accuracy of this conversion are crucial for relay sensitivity, response time, and reliability.
03
Contact Pressure Control
In many relays, the armature's shape and position determine the contact force, affecting the resistance, wear, and lifetime of the electrical contacts.
04
Return Action
When the current stops, the armature returns to its original position by spring force or magnetic repulsion, ensuring stable switching cycles.
05
Advantages of Pure Iron Raw Materials
High Magnetic Permeability
Pure iron has excellent magnetic permeability, allowing it to efficiently conduct magnetic flux. This property ensures that the Relay Armature Soft Magnetic Iron can effectively interact with the magnetic field generated by the relay coil, resulting in reliable and responsive operation.
Low Core Loss
Pure iron exhibits low core loss, meaning that it loses less energy as heat during the magnetization and demagnetization processes. This leads to improved energy efficiency and reduced heat generation within the relay, enhancing Armature for Electromagnetic Relays overall performance and lifespan.
Mechanical Strength and Durability
Pure iron is a relatively strong and durable material, capable of withstanding the mechanical stresses experienced during the relay's operation. Armature Metal Parts of Relays can endure repeated cycles of movement without significant deformation or wear, ensuring the long-term reliability of the relay.
Why Choose Our Armature
Superior Raw Material Quality
We source pure iron raw materials from renowned suppliers and strictly inspect each batch to ensure material purity and performance consistency. This guarantees the quality of our Armature Metal Parts of Relays.
Excellent Product Performance
Our Armature in relays undergoes rigorous testing and optimization in magnetic conductivity, mechanical strength, and dimensional accuracy. They demonstrate fast response, stable operation, and long service life, meeting the high-performance requirements of electromagnetic relays.
Professional Technical Team
Our team of experienced engineers and technicians specializes in Electrician Pure Iron Armature research and development. They can quickly address customer needs and provide customized solutions. We also offer technical support and services to help customers select the most suitable armature plates.
Strict Quality Control System
A comprehensive quality management system is implemented throughout the production process. From raw material inspection to finished product testing, every step is meticulously controlled. Advanced testing equipment is used to evaluate parameters such as magnetic properties and dimensional accuracy, ensuring that each Relay Terminal Armature meets high-quality standards.
