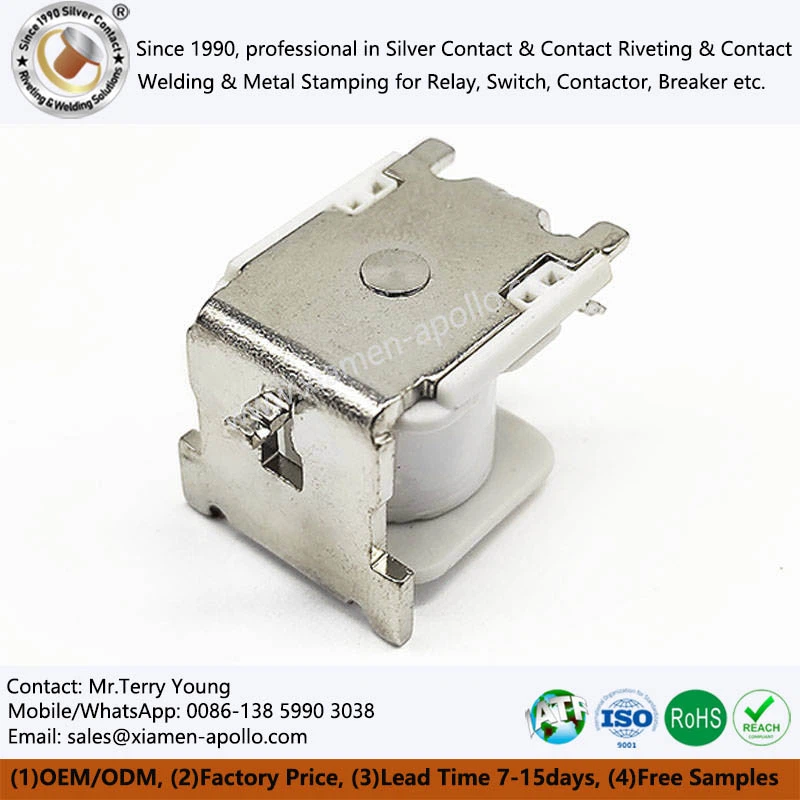

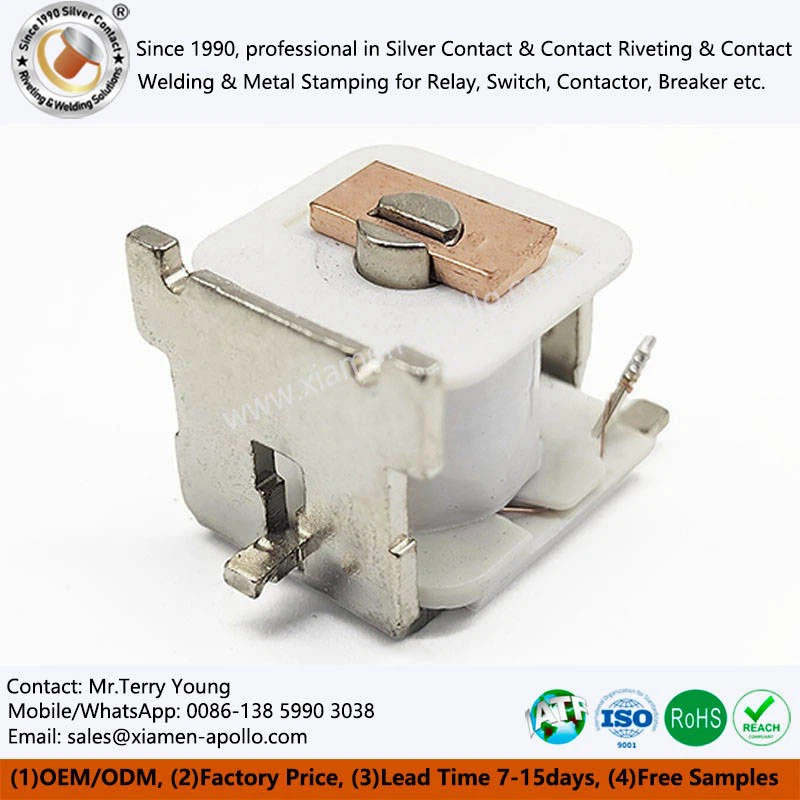

What is the Relay Yoke?
The Relay Yoke serves as the primary magnetic return path in electromagnetic switching assemblies, conducting magnetic flux from the energized coil to the movable armature. Stamped from high-purity DT4C electric iron, this precision component minimizes excitation losses and prevents mechanical sticking caused by remanence. As an integrated Chinese factory, our facility provides OEM engineers with fully customized coil-framing solutions designed to fit subminiature signal switches, automotive latching circuits, and heavy-duty power relays.

Core Performance Advantages of Magnetic Yoke
Optimized Magnetic Path Integrity
The structural density of our DT4C magnetic frames eliminates air gaps inside the flux domain. Precision stamping reduces internal grain strain, allowing domain walls to shift rapidly when coil currents energize or de-energize.
Rapid Demagnetization Dynamics
Post-stamping hydrogen magnetic annealing lowers coercive force below 48 A/m. This thermal step drives off trapped interstitials, preventing unwanted magnetic retention that causes relay drop-out delays.
Tight Mechanical Tolerances
Critical mounting holes and pin slots are stamped with punch clearance tolerances controlled within 0.015 mm. This accuracy maintains air-gap uniformity between the armature interface and core pole face.
Surface Finish & Corrosion Defense
Automated barrel plating applies uniform trivalent passivation across all shear edges and tapped holes. The protective barrier halts oxidation during tropical field operations without altering magnetic flux pathways.

Wide Application Coverage of Electrician Pure Iron Yoke
Smart Meter Latching Relays
Our components support bi-stable latching mechanisms operating under high pulse currents. High magnetic permeability ensures immediate switching under microsecond pulse inputs.
Automotive Electronics
Automotive starter switches and horn modules rely on robust magnetic frames capable of enduring continuous vibration levels up to 20G without physical displacement or fatigue cracking.
Industrial Circuit Breakers
Miniature circuit breakers (MCBs) and molded case circuit breakers (MCCBs) utilize low-coercivity iron frames to drive trip mechanisms instantly during overcurrent conditions.
Telecommunication Signal Relays
Miniature signal-switching units require exact air-gap alignment. Custom thin-gauge stamping maintains low contact resistance and quiet mechanical operation over millions of switching cycles.

Frequently Asked Questions about Relay Coil Yoke
What iron grade is selected for this Yoke Mount Kit for Relay?
+
-
We utilize cold-rolled DT4C electro-pure iron containing less than 0.008% carbon. This ultra-low carbon level suppresses magnetic aging and yields the high magnetic permeability required for sensitive relay operations.
What tooling options support high-volume OEM orders?
+
-
We construct carbide-inserted progressive dies in-house. High-durability tooling withstands over 5,000,000 punch cycles, providing stable component geometry for high-volume automated assembly lines.
How do you prevent burrs on functional contact edges?
+
-
Clearance between punch and die matrices is maintained at 5% of material thickness. Mechanical vibratory tumbling and electro-polishing steps further reduce burr height below 0.02 mm.
Can component geometry be adapted to non-standard relays?
+
-
Yes. We manufacture customized variants directly from customer CAD files (STEP/IGES/DWG). Prototyping options via wire EDM allow sample validation before multi-station tooling fabrication begins.
What quality documentation is included with shipments?
+
-
Each batch includes a material test report (MTR) with heat-number traceability, dimensional inspection reports, plating thickness measurements, and RoHS/REACH compliance documentation.

Partner directly with an established wholesale Relay Yoke manufacturer to streamline your core component sourcing and lock in stable volume pricing today.
