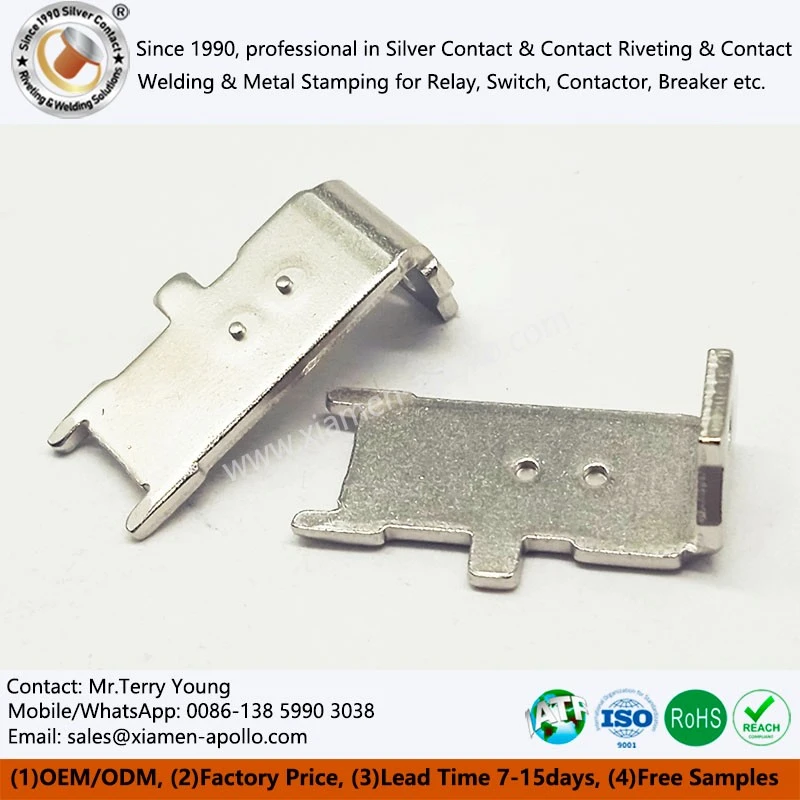

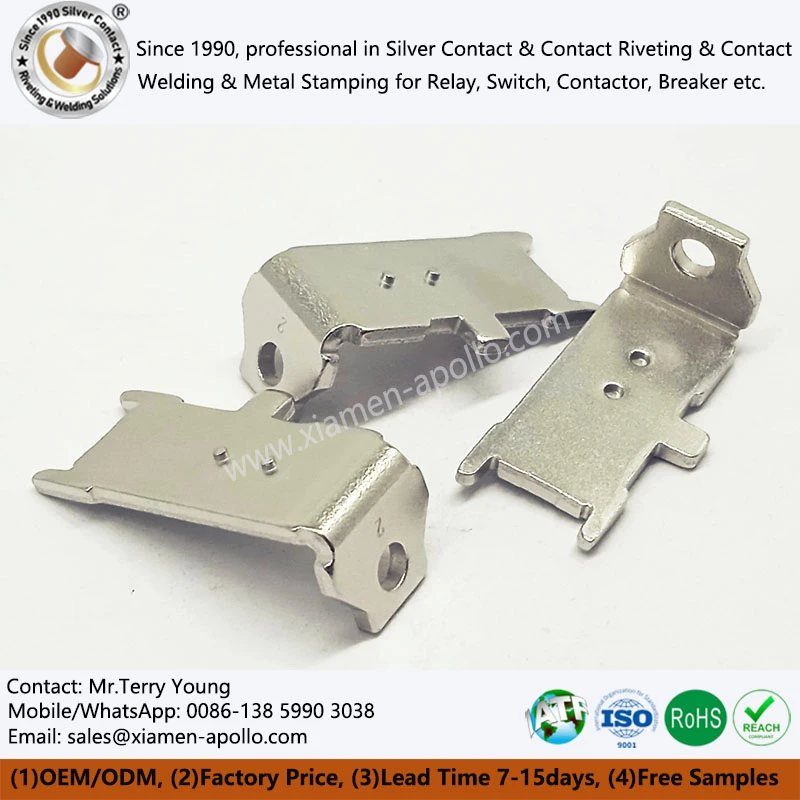

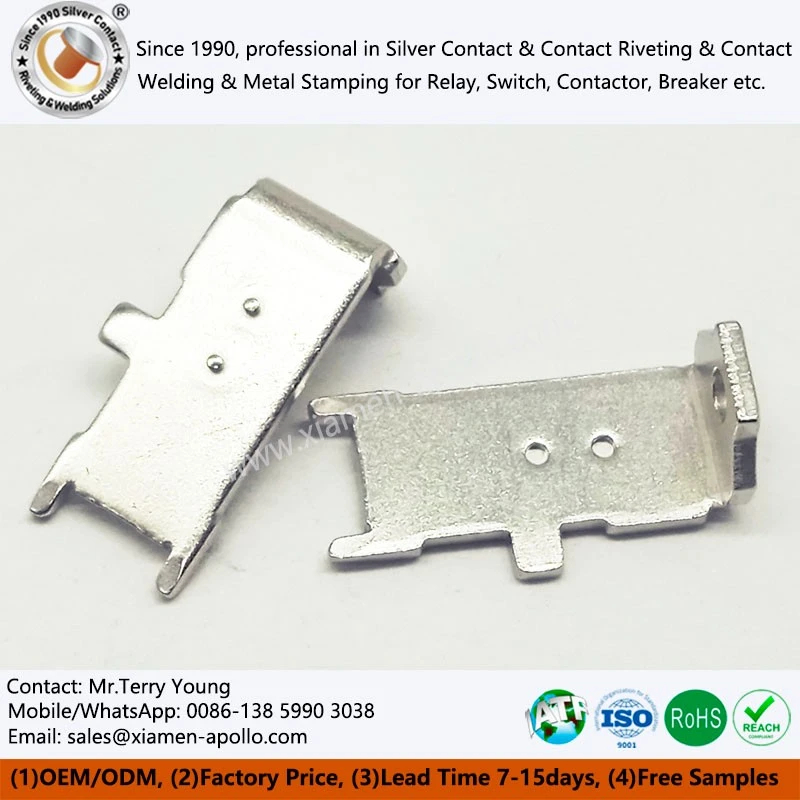

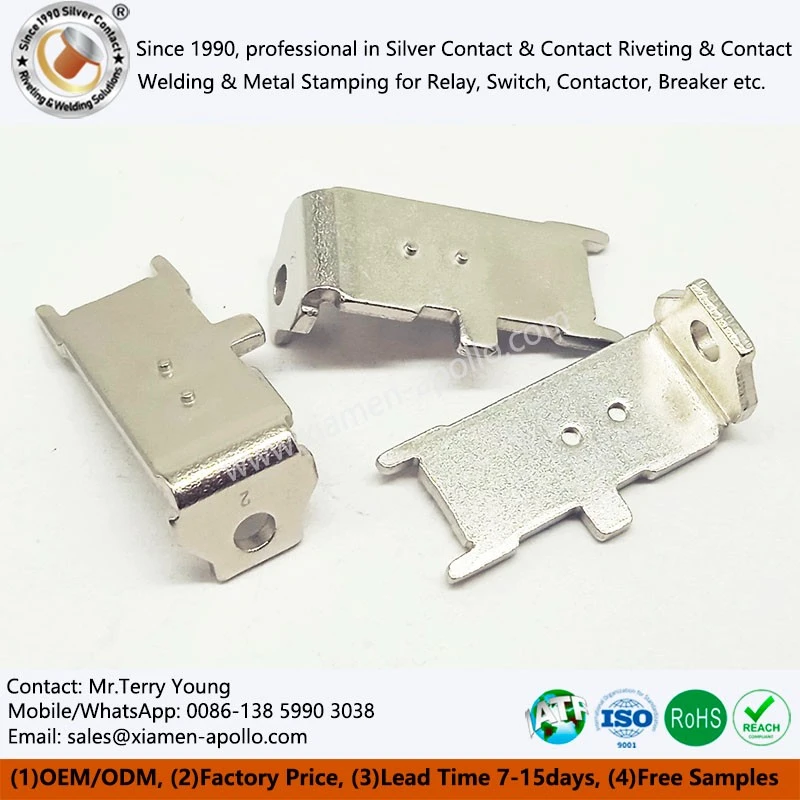

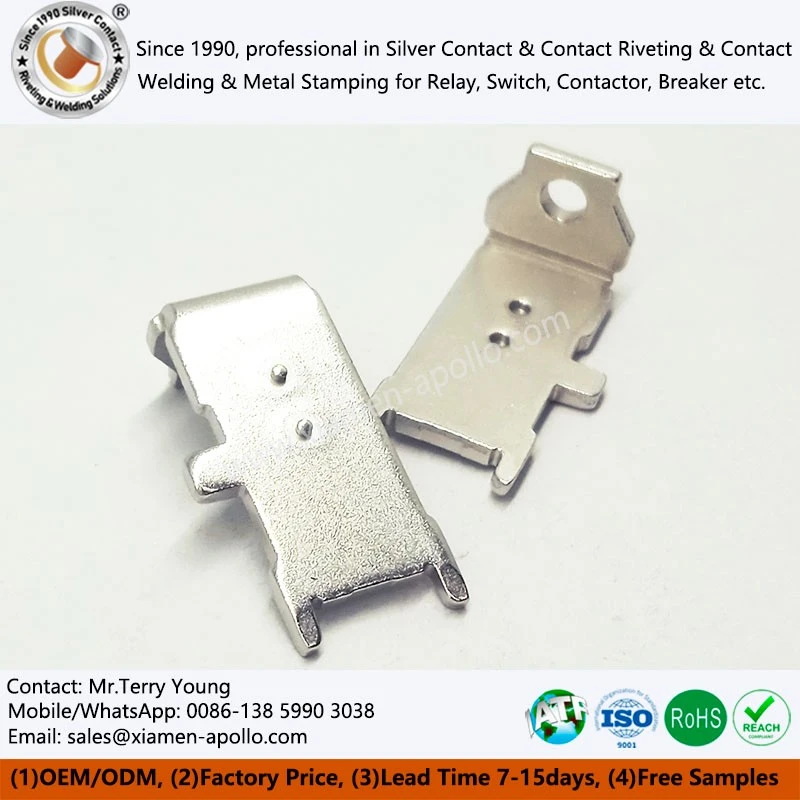

What is the Relay Iron Yoke Bracket?
In electromagnetic relays such as the 62F series, the iron yoke bracket serves a dual mechanical and magnetic function: it acts as the robust structural chassis while completing the critical low‑reluctance magnetic circuit for the armature and core. Utilizing substandard low‑carbon steel or unverified soft magnetic materials introduces unpredictable flux leakage, leading to pull‑in voltage drift, inconsistent drop‑out characteristics, and premature thermal degradation under high‑frequency switching cycles. This engineering‑grade DT4E electrical Relay Iron Yoke Bracket is specifically engineered to eliminate magnetic hysteresis losses and mechanical misalignment. Manufactured via high‑precision progressive stamping and protected by a tightly controlled 3‑5μm electrolytic nickel coating, it delivers predictable flux distribution, corrosion immunity, and dimensional stability for demanding industrial control systems.
Technical Specifications & Material Characteristics of Relay Yoke Stamping
| Parameter | Specification / Value |
|---|---|
| Material Grade | DT4E Electrical Pure Iron (Soft Magnetic Iron) |
| Initial Permeability (μi) | ≥ 4.5 × 10⁻³ H/m (High initial response) |
| Coercivity (Hc) | ≤ 48 A/m (Ultra‑low residual magnetism) |
| Surface Treatment | Electrolytic Nickel Plating (3 ~ 5 μm) |
Core Material Advantage of Power Relay Yoke: DT4E vs. Standard Low‑Carbon Steel
Low Coercivity and High Initial Permeability
DT4E electric pure iron has significantly higher purity and a controlled grain structure than commercial low‑carbon steels (e.g., SPCC or Q235). This molecular composition yields an extremely narrow hysteresis loop, resulting in minimal coercive force and rapid magnetic saturation decay when the relay coil is de‑energized.
01
Elimination of Armature Sticking and Drop‑Out Delay
In high‑frequency power switching, residual magnetism in inferior Sheet Metal Relay Yoke materials can cause the relay armature to retain contact or release slowly. DT4E's low residual induction prevents magnetic latching anomalies, ensuring instantaneous and crisp break actions across millions of switching cycles.
02
Reduced Core Iron Losses and Operating Temperature
By optimizing magnetic domain mobility, eddy current and hysteresis losses within the Power Relay Yoke structure are substantially suppressed. This thermal optimization prevents localized coil overheating inside closed industrial control cabinets during continuous energized states.
03
Lot‑to‑Lot Magnetic Property Verification
Raw wire and strip materials undergo rigorous batch testing before tool loading. Permeability and coercive force parameters are logged to guarantee that bulk production maintains identical magnetic responsiveness as prototype samples of Precision Relay Yoke Stamping Part.
04
Downstream Application Scenarios & Engineering Fit of Relay Yoke
62F Series Industrial Control Electromagnetic Relays
Engineered specifically as the primary magnetic return path and structural backbone, this Electromagnetic Relay Yoke Frame serves standard 62F general‑purpose power relays operating on AC/DC control voltages.
Industrial Automation Control Panels and MCCB Modules
Deployed within heavy‑duty industrial switchgear, motor control center (MCC) auxiliary blocks, and programmable logic controller (PLC) output interface modules requiring high reliability.
Power Distribution and Smart Meter Latching Modules
Suited for auxiliary power supplies and switching subsystems, this Pure Iron Stamped Relay Yoke meets requirements where low magnetic drop‑out tolerance and stable mechanical alignment are mandatory under continuous vibration.
Custom OEM Electromagnetic Actuators and Solenoids
Adaptable for custom solenoid valves, auxiliary contactors, and miniature locking actuators, this Relay Metal Skeleton Yoke fits applications where magnetic circuit efficiency dictates overall actuation speed.
Frequently Asked Questions about Precision Relay Yoke Stamping Part
Why is DT4E electrical pure iron chosen over standard SPCC low‑carbon steel for 62F relay yokes?
+
-
DT4E offers significantly lower coercivity and higher initial permeability. This reduces residual magnetism, prevents armature sticking, and ensures immediate drop‑out when coil current ceases, which standard low‑carbon steel cannot guarantee under heavy duty cycles.
How does the 3‑5μm nickel plating thickness affect the magnetic performance of the Relay Yoke?
+
-
A controlled 3 ~ 5 μm thickness provides robust corrosion protection and stable surface contact without expanding the magnetic air gap, thereby preserving designed flux efficiency and coil pull‑in voltage thresholds.
What dimensional tolerances can be maintained during high‑volume progressive stamping of these Relay Steel Yokes?
+
-
We maintain critical mounting dimensions and hole centers within ±0.02 mm using multi‑stage progressive dies and automated optical sorting, ensuring flawless interchangeability on automated assembly lines.
Can these yoke brackets be customized according to proprietary customer engineering drawings?
+
-
Yes, we provide full custom OEM/ODM manufacturing based on your CAD drawings or physical samples, including tailorable material selection, thickness variations, and specialized plating specifications.
What quality inspection and testing procedures are performed before bulk shipment?
+
-
Every production lot undergoes magnetic property sampling (coercivity and permeability), 96‑hour neutral salt spray corrosion tests, coating thickness measurement via X‑ray fluorescence, and 100% optical dimension screening.
contact us
Request engineering samples of Relay Iron Yoke Bracket for your relay magnetic circuit validation today, or submit your CAD drawings to our engineering team for a competitive OEM quotation within 24 hours.
