The biggest difference between a magnetic latching relay and a regular relay lies in its bistable characteristic, and our Latching Relay Iron Cores is the physical basis for achieving this characteristic.
Stepped Geometry: This unique geometry is not merely for fixation; it is the result of precise magnetic circuit calculations designed to optimize air gap reluctance, ensuring a uniform electromagnetic force distribution in the armature during engagement and disengagement.
Low Coercivity: This ensures the magnetic circuit can quickly respond to the holding force of the permanent magnet after the drive pulse disappears, achieving precise state locking.
High Saturation Magnetic Induction: Provides extremely high electromagnetic thrust within a limited volume, meeting the switching requirements of high-voltage, high-current contacts in relays.
Material Advantages: From Microscopic Grains to Macroscopic Magnetic Properties
High-Purity Soft Magnetic Alloy Selection
We select high-purity low-carbon electrical steel or precision soft magnetic alloys as the base material. These materials possess extremely high saturation magnetic induction (Bs), meaning that our Pure Iron Rod for Relay provides stronger electromagnetic attraction within the same volume, aiding in the miniaturization of relay designs.
Excellent Frequency Characteristics and Low Losses
For high-frequency applications such as smart meters, we strictly control the grain orientation of the materials to minimize eddy current and hysteresis losses. This not only improves the relay's response speed but also significantly reduces the heat generated by the Soft Magnetic Iron Rod for Relay under alternating magnetic fields, enhancing the overall thermal stability of the relay.
Extremely Low Remanence and Coercivity
The Core Pin for Relay principle of a self-locking relay lies in the "game" between the permanent magnet and the coil's magnetic field. If the core material has excessively high coercivity, it is prone to residual magnetism after activation, leading to difficulty in relay release or inaccurate reset. Our material formula is specially formulated to ensure that the iron core has "soft magnetic" characteristics-that is, "responsive to incoming and disappearing without a trace," perfectly matching the permanent magnet circuit to achieve highly reliable bistable switching.

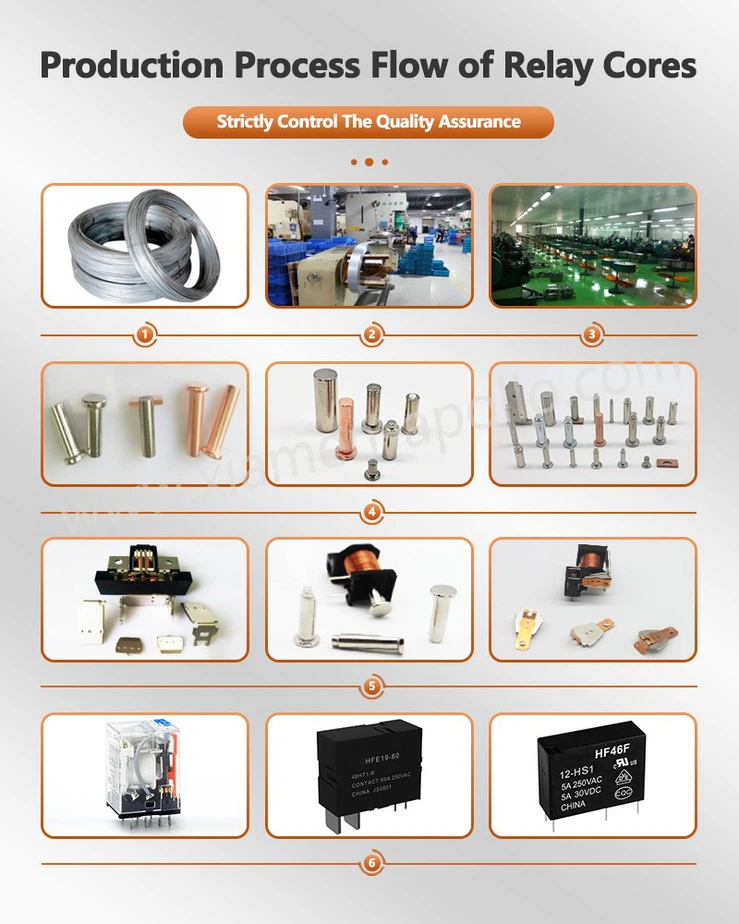

Manufacturing Processes: From Micro-Forging to Precision Forming
Multi-Station Cold Heading
The stepped sections are not machined by cutting, but rather formed integrally through cold extrusion. This process preserves the continuity of the metal fibers, significantly improving the mechanical strength and magnetic circuit consistency of the Core for the latching relay.
Ultra-Precision Grinding
The flatness of the DT4C Iron Core for the Latching Relay's end faces directly affects remanence and attraction. We employ a double-end-face grinding process to ensure a mirror-like surface roughness, minimizing instability caused by the air gap.
Vacuum Hydrogen Annealing
A critical production step. Long-term annealing in a high-temperature hydrogen environment eliminates internal stresses from the forming process, allowing magnetic domains to rearrange and achieve optimal electromagnetic properties.
Application Advantages: High Reliability in Multiple Scenarios
1. Smart Meters and AMI/AMM Systems
As the core actuator of smart meters, our iron core ensures operational accuracy over tens of thousands of billing cycles. Its low power consumption contributes to long-life operation powered by batteries, while high stability prevents "electricity theft" or "missed meter readings" caused by residual magnetism in the Pure Iron Core for Electric Meter Relay.
2. New Energy Vehicle Charging Piles and BMS
In high-voltage DC relays or pre-charge magnetic contactors, the double-stepped iron core can withstand the severe vibrations during vehicle operation and has an extremely wide temperature adaptability range (-40℃ to +125℃), ensuring reliable switching of the charging circuit in extremely cold or hot environments.
3. Photovoltaic Inverters and Energy Storage Systems
In inverters, magnetic latching relays are used for grid-connected control and islanding protection. Our nickel-plated Relay Core has an extremely fast response speed, cutting off the circuit within milliseconds of a grid fault, protecting equipment safety. Its low-loss characteristics also help reduce the inverter's self-consumption and improve system efficiency.
contact us
If you are evaluating the supply system for the core magnetic circuit components of a magnetic latching relay, we can provide engineering-level optimization suggestions and stable mass production solutions based on your structural drawings and magnetic performance requirements. You are welcome to submit your project parameters to the inquiry page to connect with our technical team.
