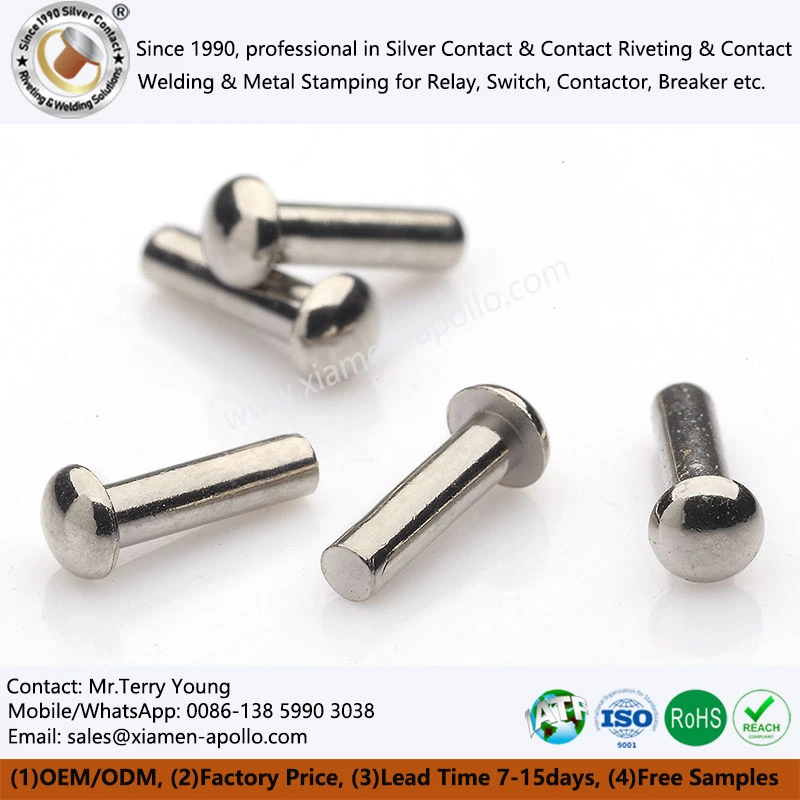

What are Electroless Nickel Plating Rivets?
Our Electroless Nickel Plating Rivets provide users with excellent solutions with their excellent electrical properties and multiple advantages of nickel-plated materials. The contacts exhibit excellent conductivity and stable electrical contact, ensuring low contact resistance and high-frequency signal transmission capabilities, while also having good arc resistance and oxidation resistance. The excellent corrosion resistance and wear resistance of the nickel plating layer further enhance the durability and reliability of the contacts. Our strict quality control process ensures that every product meets high standards, from plating uniformity to processing accuracy; all are carefully tested to ensure that users are provided with stable and reliable high-quality contacts.
Key Electrical Performance of Nickel-Plated Contacts
Low Contact Resistance Variation
The autocatalytic nickel deposition prevents surface oxidation on the substrate, keeping contact resistance stable and preventing voltage drops in miniature switching circuits.
Rapid Thermal Conductivity
Optimized copper and alloy substrates efficiently dissipate Joule heat generated during continuous high‑amperage loads in smart meter latching relays.
High‑Frequency Signal Transmission Capability
Smooth surface topographies minimize skin effect losses and signal distortion across sensitive low‑voltage electronic control boards.
Low Contact Potential Difference
Controlled metallurgical composition eliminates galvanic corrosion risks when mated with diverse bimetallic busbars and stamped terminals.
Main Advantages of Electrical Contact with Nickel Plating
Uniform Thickness on Complex Geometries
Autocatalytic plating baths deliver uniform Nickel Coating Copper Contacts, depositing evenly across deep recesses, radii, and sharp edges of formed rivet heads without edge buildup.
01
Superior Surface Hardness and Wear Resistance
As‑plated nickel layers provide high surface hardness that resists mechanical deformation and micro‑welding during repetitive physical contact.
02
Excellent Corrosion and Oxidation Defense
Dense, pore‑free phosphorus‑nickel structures protect underlying copper from atmospheric tarnishing in humid industrial environments.
03
Enhanced Solderability and Brazing Prep
Provides a stable intermediate diffusion barrier that improves subsequent silver brazing and lead‑free soldering reliability.
04
Frequently Asked Questions about Nickel Plated Contacts Contact Rivets
What substrate is suitable for Nickel Plated Contacts Contact Rivets?
+
-
Copper is a practical substrate when the rivet must provide an electrical conduction path. The final material should be selected according to conductivity, forming behavior, mechanical strength, and contact requirements. The substrate grade should be specified on the drawing before tooling and production are released.
Why use electroless nickel plating on contact rivets?
+
-
Electroless nickel plating provides a metallic surface layer that helps protect the substrate from oxidation and surface wear. It is useful when the exposed rivet surface needs controlled coverage over a formed three-dimensional geometry rather than an untreated substrate surface.
Can Nickel Plated Contacts be used in relay moving contacts?
+
-
They can be considered for relay moving-contact assemblies when the electrical load, contact force, switching frequency, and mating material are compatible with the plated surface. Final validation should use the complete relay assembly because contact resistance depends on the entire interface.
Does nickel plating change the rivet dimensions?
+
-
Yes. Any plating process adds material to the original formed surface, so coating thickness must be included in dimensional engineering. Critical head and shank dimensions should therefore be specified with the plating condition clearly identified in the production drawing.
Can the rivet dimensions be customized from a sample?
+
-
Yes. A physical sample can be used as an engineering reference for dimensional analysis and tooling development. For production approval, a controlled drawing or approved sample should define critical dimensions, material, plating condition, and inspection requirements.
contact us
Request a quotation for custom Electroless Nickel Plating Rivets from a China factory and include your drawing or sample specification for technical review.
