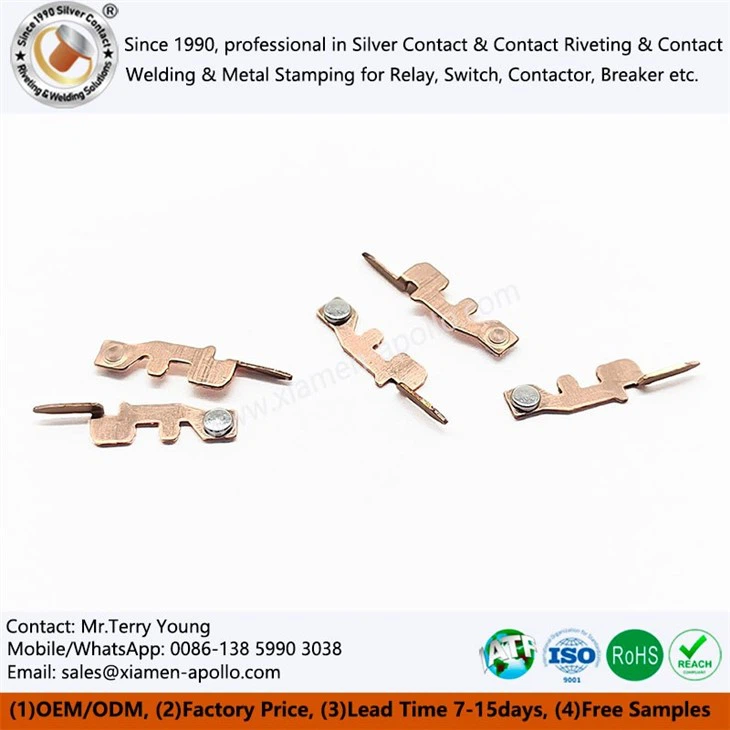

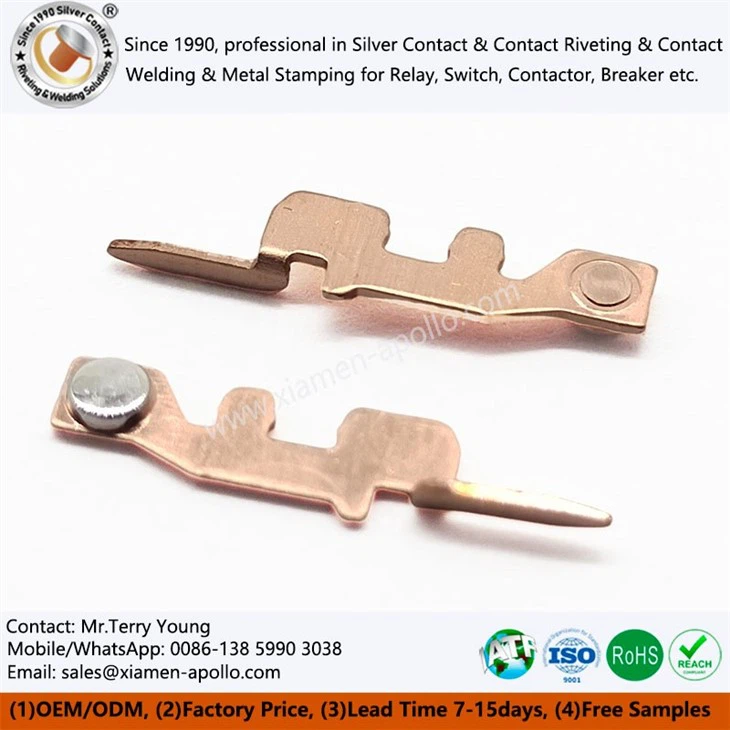

What is the Beryllium Copper Rivet Assembly?
Beryllium Copper Rivet Assembly production starts with controlled material preparation, precision forming, and mechanical riveting rather than simple component supply. C17200 beryllium copper is used where the riveted joint requires a combination of mechanical strength, hardness, electrical conductivity, and corrosion resistance. The production line supports customized contact dimensions, assembly geometry, and riveted structures for relay moving springs, armature assemblies, low-voltage switching components, smart-home electrical controls, and automotive electrical systems. The current product specification supports customized contact sizes and assembly dimensions, with production capacity arranged according to drawing, material, and order requirements.
Key Riveting Performance Advantages of Beryllium Copper
Superior Resistance to Stress Relaxation
Beryllium copper maintains over 90% of its initial contact force even when subjected to elevated operating temperatures up to 150°C for extended periods, preventing intermittent connection failures.
Exceptional Fatigue and Bending Endurance
The high elastic limit of C17200 allows the rivet assembly to endure high-frequency repetitive deflection in sensitive snap-action switches without permanent deformation or structural fatigue.
Optimized Thermal and Electrical Path
Precise interfacial bonding minimizes constriction resistance at the rivet junction, significantly reducing localized Joule heating within high-density miniature relay architectures.
Mechanical & Environmental Test Options for Copper-Beryllium Riveting Silver Contact
Contact Force and Deflection Verification
Using high-resolution digital force gauges, we measure insertion, withdrawal, and contact actuation forces to verify compliance with customer-specified spring characteristic curves.
Salt Spray Corrosion Resistance Testing
Assemblies are exposed to neutral salt spray (NSS) chambers for 48 to 96 hours in accordance with ASTM B117 to validate the corrosion resistance of plated protective layers.
Metallographic Cross-Section Analysis
Sample Silver Contact Riveting Assemblies are mounted, polished, and etched to inspect internal grain structure, rivet head fill factor, and interfacial bonding integrity under optical microscopes.
Frequently Asked Questions about Beryllium Copper Stamping Spring
What is the typical lead time for custom Armature Beryllium Copper Riveting Assembly?
+
-
Standard tooling samples are produced and shipped within 10 to 15 days. Full-scale production runs generally require 10 to 15 days, depending on raw material availability and order volume.
Can you supply material test reports with our shipment?
+
-
Yes, every production lot includes a complete Material Test Report (MTR) detailing chemical composition, tensile strength, hardness test results, and plating thickness measurements.
What is the minimum order quantity for custom dimensions?
+
-
Our minimum order quantity typically starts at 1,000 pieces for standard custom configurations, allowing R&D teams to validate prototypes efficiently before scaling up mass production.
Do you provide free engineering samples for prototyping?
+
-
We offer evaluation samples for qualified industrial projects, with freight costs borne by the buyer. Contact our engineering team with your 2D/3D CAD drawings to initiate sample requests.
Can the riveting design be modified from our existing blueprints?
+
-
Our engineering department provides free DFM (Design for Manufacturing) reviews to optimize rivet head geometry and reduce overall production costs without sacrificing mechanical performance.
contact us
Ready to optimize your relay and switch designs with high-performance Beryllium Copper Rivet Assembly? Connect directly with our engineering team today to request custom engineering drawings, material data sheets, or a competitive wholesale quotation tailored to your production volume.
