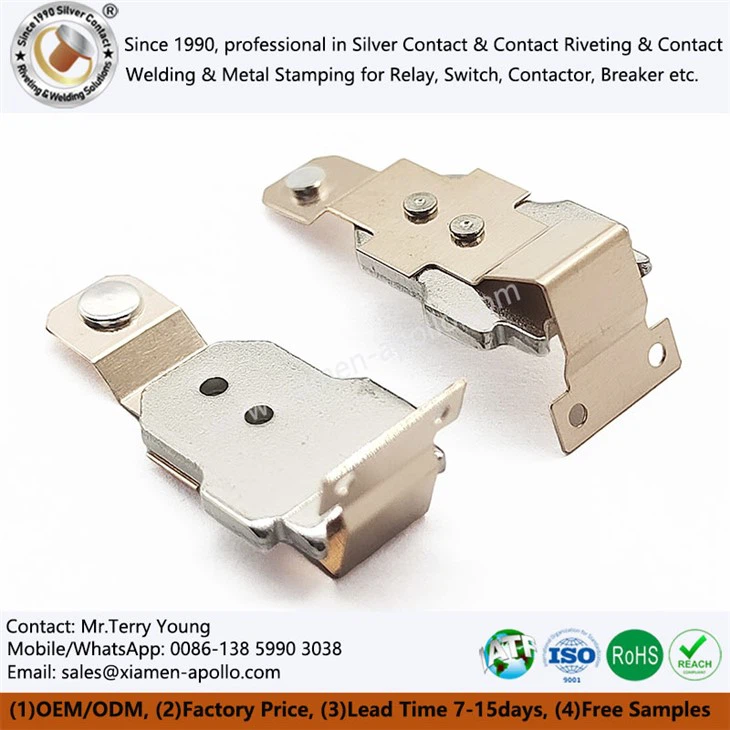

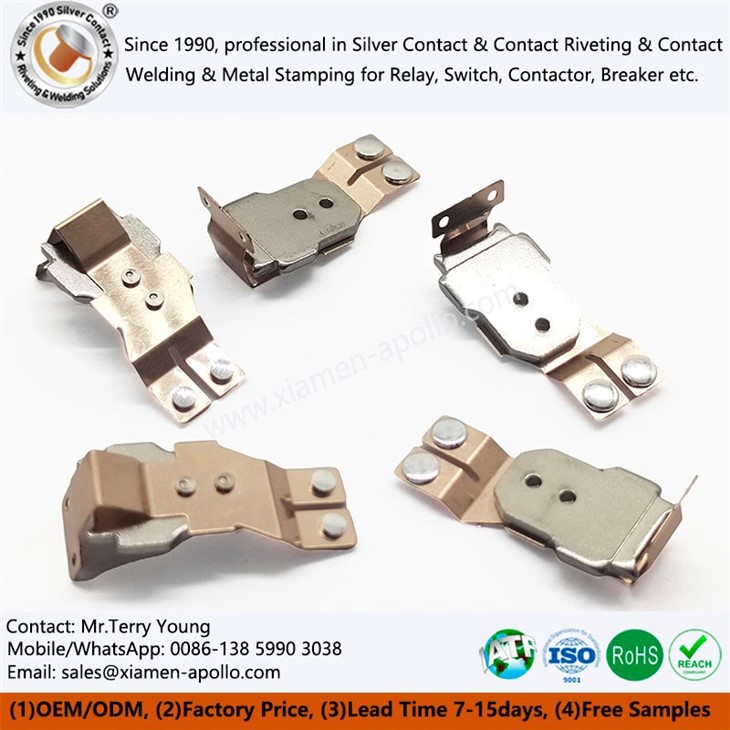

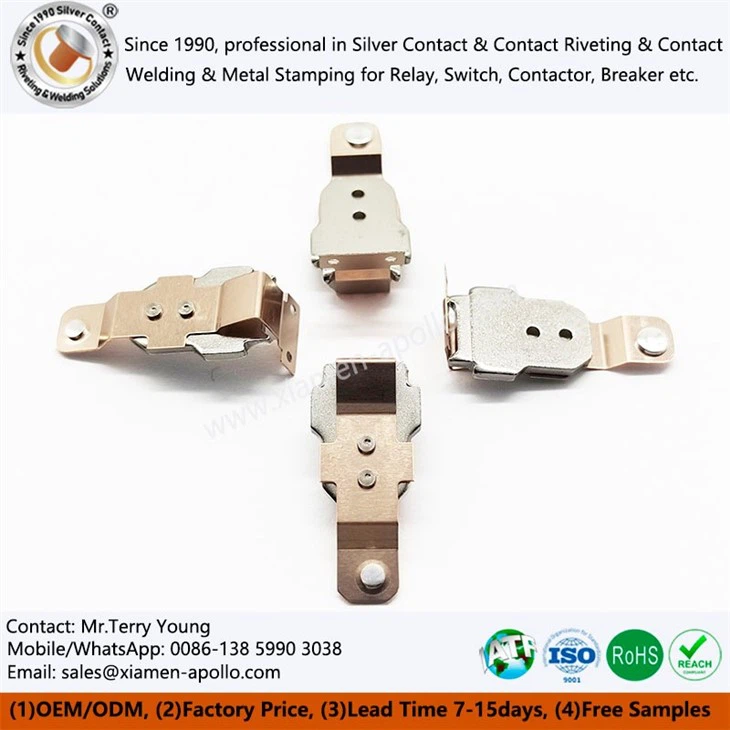

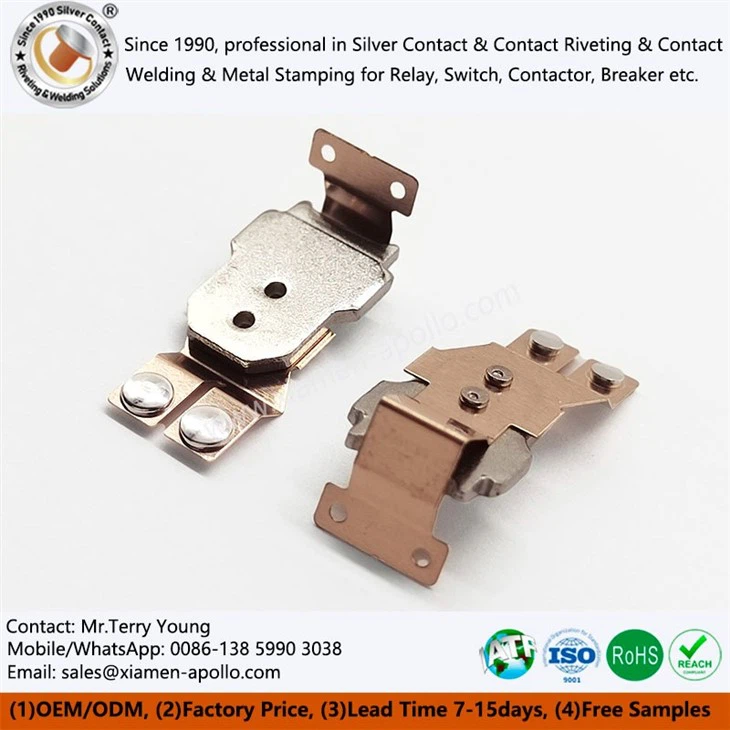

What is the Beryllium Copper Riveted Armature Assembly?

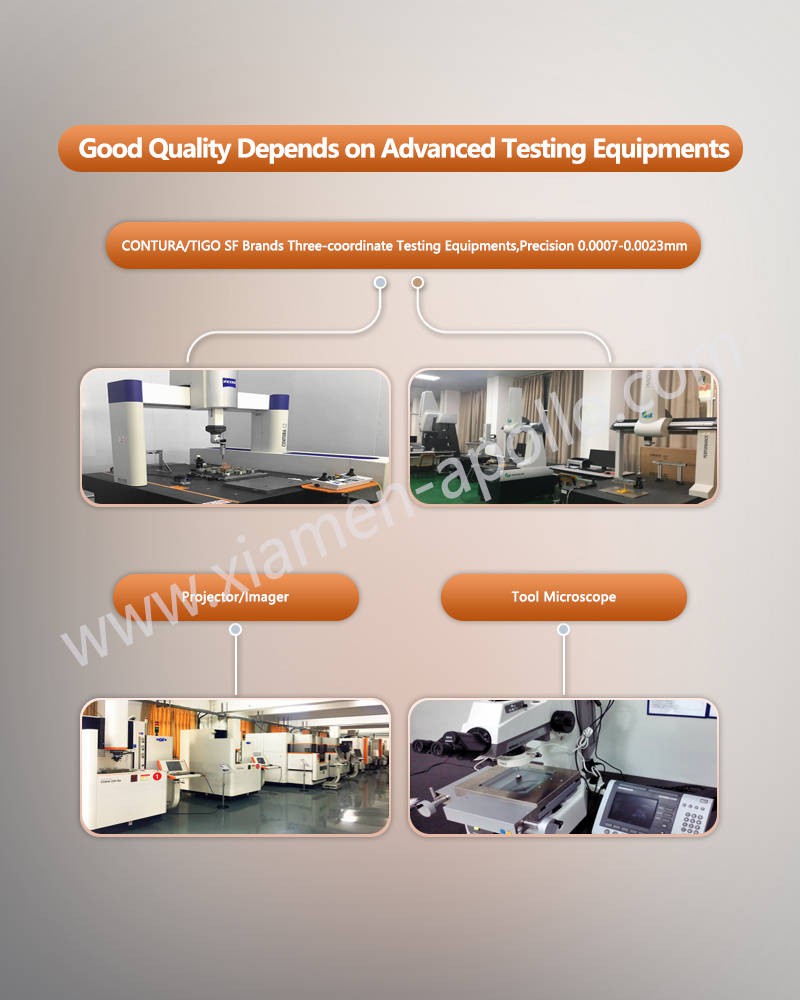

Beryllium Copper Riveted Armature Assembly production combines C17200 beryllium copper forming, precision riveting, and armature integration for relay mechanisms requiring controlled spring force and mechanical retention. The assembly is intended for relay moving springs, low-voltage control mechanisms, smart-home electrical equipment, and automotive relay structures where the moving spring and armature must remain accurately positioned through repeated operation. C17200 beryllium copper provides the material basis for high strength, hardness, electrical conductivity, and fatigue resistance, while the riveting process establishes the mechanical connection between the functional parts. The production process supports drawing-based dimensional development, prototype trial runs, and volume production. Hardness, tensile, fatigue, and metallographic inspection are available as part of production quality evaluation.
Technical Specifications & Material Compliance of Beryllium Copper Stamping Spring
| Parameter Description | Technical Specification Value |
|---|---|
| Electrical Conductivity | 22% - 25% IACS (Solution Heat Treated & Aged) |
| Rivet Pull-Off Force | ≥ 180 N (Shear/Tensile validation) |
| Contact Resistance | < 0.5 mΩ at 10 A DC |
| Quality Management | IATF 16949, RoHS, REACH, ISO 9001 |
Manufacturing & OEM-ODM Services of Silver Contact Riveting Assembly
Professional engineering consultation for relay contact design, material selection, and riveting-process feasibility evaluation to optimize performance.
Custom development support based on customer 2D/3D CAD drawings or physical prototypes, moving smoothly from trial-run samples to high-volume production.
Rapid engineering change implementation and rigorous batch traceability for all automotive and industrial electronic OEM accounts.
Advanced tooling design built in-house to reduce lead times and guarantee high repeatability across millions of stamped components.
Packaging Solution for Riveted Electrical Connection Components
Armature Beryllium Copper Riveting Assemblies belong to precision electronic contact parts. Our standardized packaging mitigates risks during long-distance logistics and storage:
Components are packed in PET round cans to shield riveted contact points from mechanical impact and bending forces during transit.
Outer cartons with strapping secure the cans, and pallet stretch wrapping provides dust and moisture protection for copper-alloy parts to reduce oxidation risk in warehouse storage.
Reinforced pallet strapping stabilizes stacked cargo to prevent shifting during handling.
Clear batch marking indicates exact model specifications, material lot numbers, and production dates for complete supply chain traceability.
contact us
Secure your supply chain with direct‑factory engineering support and competitive wholesale pricing. Contact our technical team today to submit your drawings, request material samples, or discuss custom specifications for Beryllium Copper Riveted Armature Assembly for your next relay manufacturing project.
