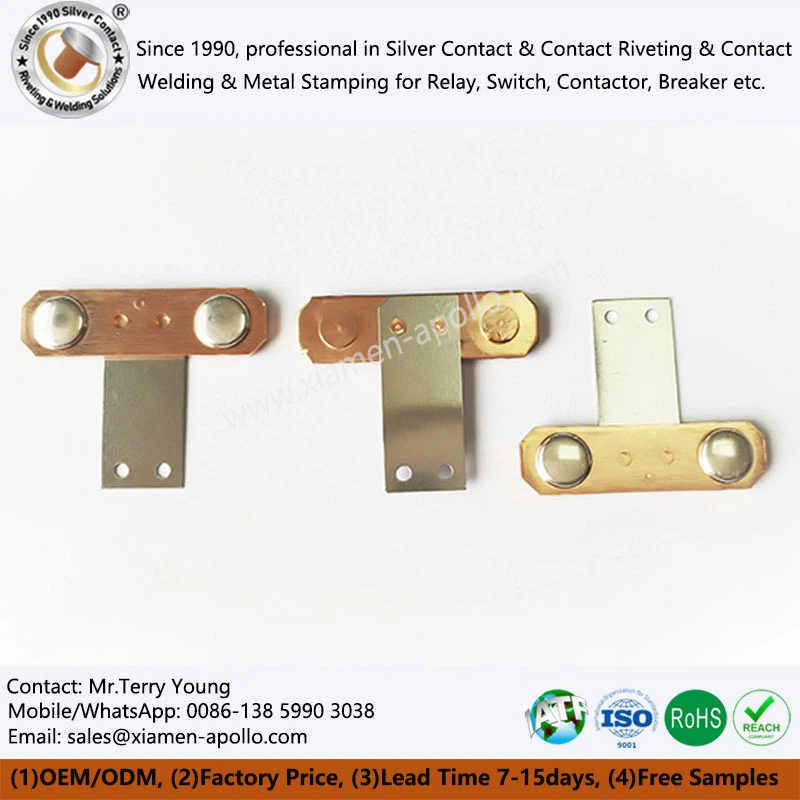

Contact Copper Stainless Steel Riveted Assembly for PV Relay
Contact Copper Stainless Steel Riveted Assembly for PV Relay

Contact Copper Stainless Steel Riveted Assembly for PV Relay

Contact Copper Stainless Steel Riveted Assembly for PV Relay is a core photovoltaic‑system component. Combining conductive copper and corrosion‑resistant stainless steel via riveting, it delivers stable switching performance. Optional silver plating boosts conductivity. Suited for PV relays, solar inverters and renewable‑energy projects with balanced reliability and cost‑effectiveness.
Send Inquiry
What is the Contact Copper Stainless Steel Riveted Assembly for PV Relay?





Contact Copper Stainless Steel Riveted Assembly for PV Relay is a custom electrical contact component engineered for photovoltaic relays and solar inverter relays. This assembly combines high-conductivity copper contact parts and a corrosion-resistant stainless steel base via solid in-die riveting. It maintains stable switching performance under cyclic high-current loads and outdoor temperature fluctuations and is widely used in solar energy management systems. As an OEM manufacturer, we support drawing-based customization for dimensions, plating, and riveting structure.

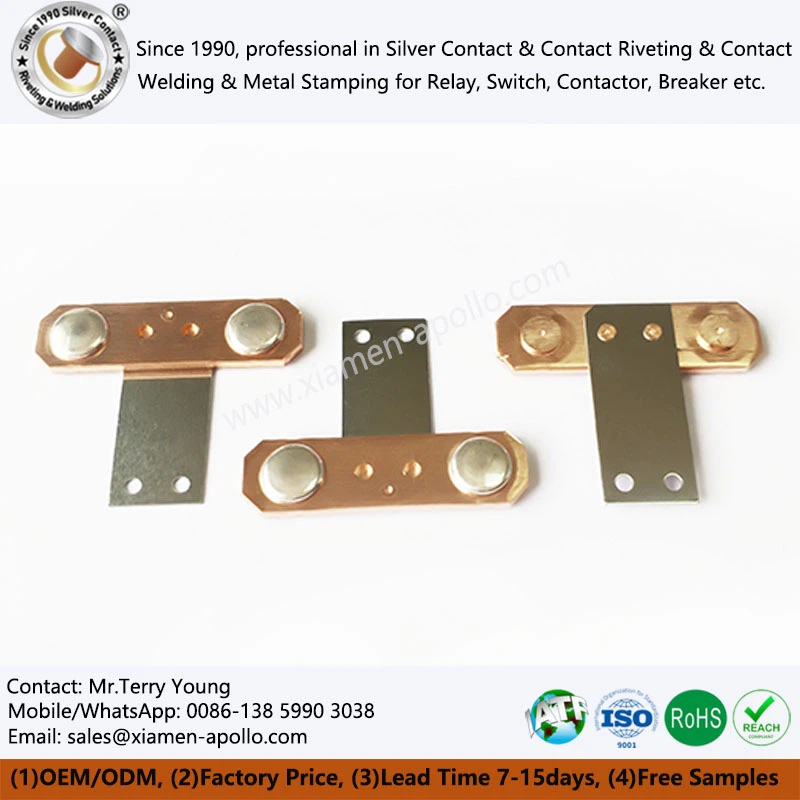

Contact Copper Stainless Steel Riveted Assembly for PV Relay




Key Advantages of Electrical Contacts for Photovoltaic Relay




High Electrical Conductivity

Oxygen-free copper contact material minimizes contact resistance and heat buildup during repeated switching cycles, ideal for high-current PV relay circuits.




Corrosion-Resistant Substrate

Stainless steel carrier delivers good mechanical strength and anti-rust properties, suitable for long-term outdoor solar equipment operation.




Reliable In-die Riveting

Integrated riveting process avoids loose contact separation under vibration. Consistent rivet tension ensures stable electrical connection over service life.




Customizable Surface Plating

Optional silver plating on contact surface reduces arc erosion and lowers contact resistance to meet different relay electrical requirements.



Stainless Steel Strip for Contact Copper Stainless Steel Riveted Assembly for PV Relay





Core Product Specifications of Electrical Contacts for Solar Panel Relay



Process Stamping + in-die riveting
Tolerance ±0.005mm for critical contact dimensions
Application PV relay, solar inverter relay, power switching components
Service OEM, custom drawing, sample support



In-die Riveting & Contact Copper Stainless Steel Riveted Assembly for PV Relay



Production Process of Fixed Silver Contact for Solar Power Relay



Material Selection

High-quality copper and stainless steel are chosen for their respective properties of conductivity and strength.

01

Precision Stamping

The copper contacts are precision-stamped to achieve the desired shape and size, ensuring a perfect fit within the relay mechanism.

02

Riveting

The assembly process involves riveting the copper contacts to the stainless steel base, creating a secure and durable connection.

03

Quality Control

Each assembly undergoes rigorous testing to ensure it meets the required standards for performance and reliability.

04

Silver Plating

For enhanced conductivity, some contacts may undergo a silver plating process, which adds a layer of silver to the copper contacts.

05

Contact Copper Stainless Steel Riveted Assembly for PV Relay production and testing equipment







contact us

Submit your drawings or requirements to get a quotation for a Contact Copper Stainless Steel Riveted Assembly for PV Relay. Our engineering team supports OEM customization for contact components.
