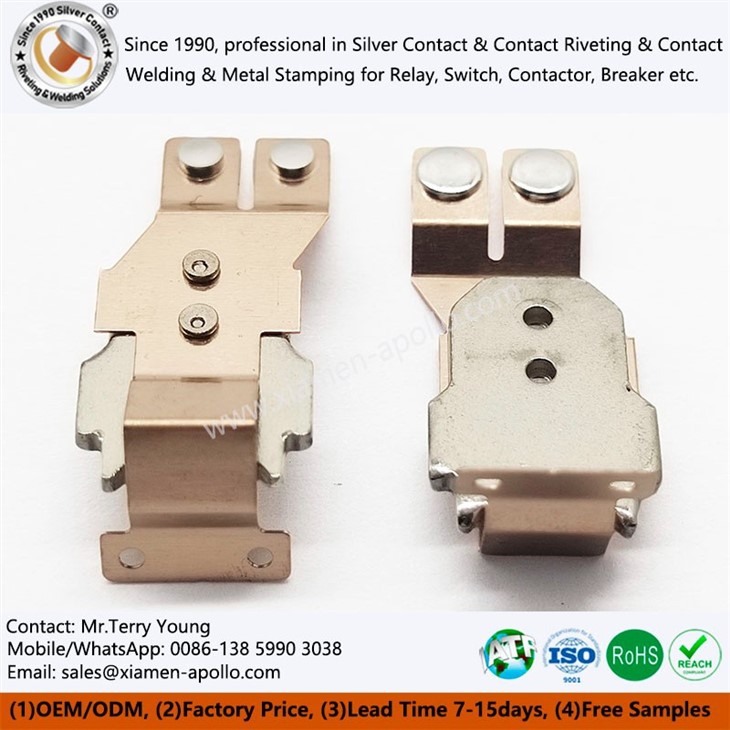

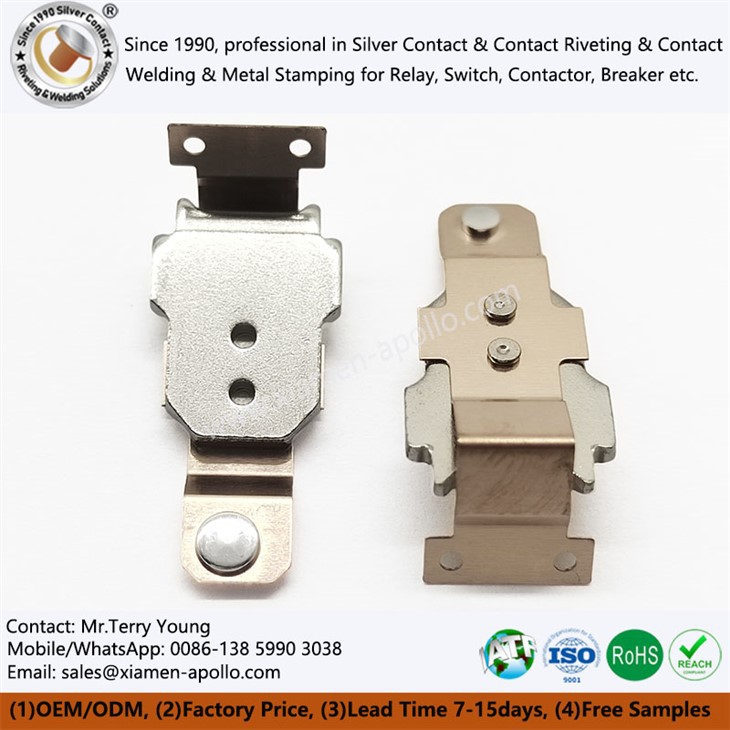

what are Electrical In-Die Riveted Connections?
Procuring precise Electrical In-Die Riveted Connections for high-frequency switching devices requires strict metallurgical bonding and tight dimensional control to prevent thermal runaway. As a direct manufacturing source in China, we deliver wholesale custom components engineered specifically for low-voltage switchgear, smart meter latching relays, and automotive power distribution units. Utilizing automated progressive tooling and advanced cold-heading integration, our components eliminate secondary assembly variance, ensuring stable contact resistance and exceptional mechanical durability over millions of switching cycles.
Stable electrical properties of Beryllium Copper Stamping Spring
High conductivity
C17200 beryllium copper achieves a conductivity of 18% IACS or higher. The material delivers low resistance and lowers power dissipation. Products made from this material are used in connectors and other electronic assemblies to maintain steady equipment operation.
Low contact resistance stability
Beryllium copper sustains consistent contact resistance over extended service cycles. This characteristic fits frequently switched parts, including relay contacts. Steady low contact resistance minimizes heat and arc generation from poor contact. In-Die Electrical Riveting Contacts improve reliability and service life for electrical hardware.
High-temperature electrical stability
Beryllium copper retains stable electrical performance under elevated temperatures. Its high melting point and oxidation resistance preserve material structure without performance degradation. It supports reliable current transfer for high-temperature circuits such as aircraft engine and industrial furnace control systems.
Structural Integrity of In-Die Riveted Assemblies
Metallurgical Cold-Heading Bonding
The rivet head and substrate form a solid-state cold-weld lock under high tonnage press action, preventing thermal loosening during continuous high-current loads.
Elimination of Secondary Assembly Error
Inline automated feeding positions the silver alloy tip directly into the stamped copper strip, eradicating human alignment variance and boosting production yield.
Optimized Thermal Dissipation Path
Continuous metal grain structures from the contact face through the carrier strip facilitate rapid heat transfer away from the switching arc zone.
Micro-Vibration Fatigue Resistance
Rigid mechanical interlocks withstand repetitive mechanical shock and high-frequency contact bouncing without interfacial micro-gap formation.

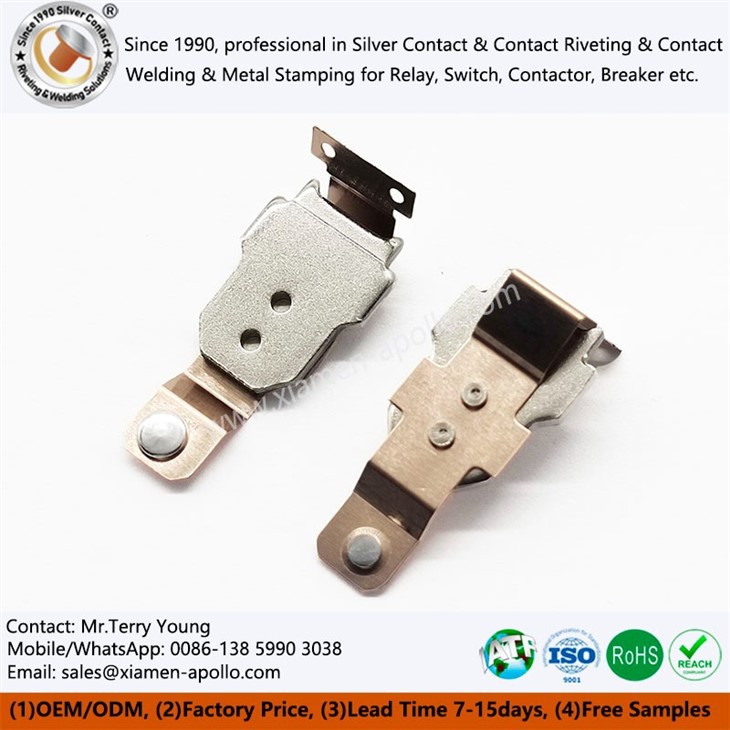

Manufacturing Efficiency via In-Die Technology of In-Mold Riveting Electrical Contacts
High-Speed Progressive Stamping
Single-stroke processing combines blanking, bending, piercing, and rivet insertion, drastically reducing cycle times for large-scale volume production.
Material Scrap Optimization
Advanced nesting software and precision strip feed layouts minimize raw copper and precious metal waste, yielding direct cost savings for wholesale buyers.
Automated Optical Inspection (AOI)
Every production batch undergoes 100% inline vision scanning to detect height deviations, surface pitting, and improper rivet head seating.
Scalable Tooling Maintenance
Modular progressive die designs allow rapid tool servicing and configuration changes for custom OEM design modifications.
contact us
For active relay or switch projects, submit your drawings now for engineering review, in-die tooling assessment, sample validation, and production scheduling of Electrical In-Die Riveted Connections directly with the factory manufacturing team.
