What is the Moving Spring Riveted Assembly For Relays?
Moving Spring Riveted Assembly For Relays meets engineers' demand for metallurgical consistency and mechanical durability when sourcing precision components for heavy‑duty switching systems. Our custom assembly integrates high‑conductivity beryllium copper stampings with silver alloy contact tips through high‑tonnage cold‑heading technology. Engineered specifically for latching relays and industrial contactors, this factory‑direct assembly eliminates micro‑cracking and thermal drift under high switching frequencies. We provide tailored manufacturing and competitive wholesale pricing for global low‑voltage electrical equipment manufacturers.

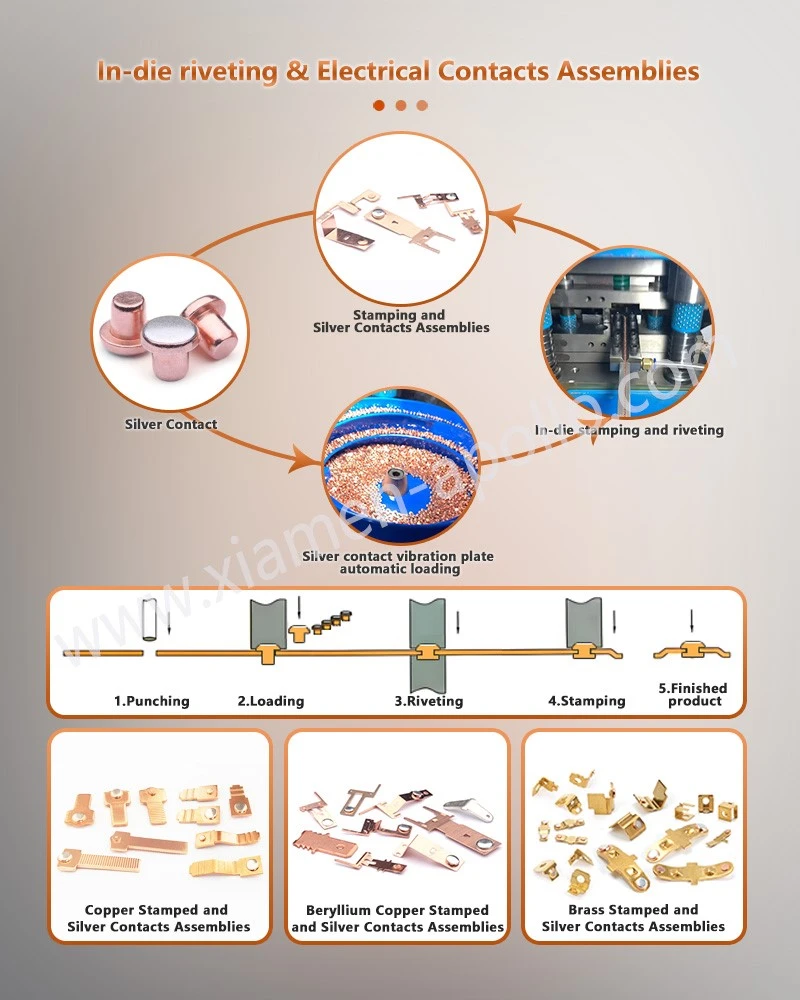

Realistic Process Tolerances for Electrical In-Die Riveted Connections
Blanking and Stamping Tolerances
Progressive die stamping maintains linear dimensions within ±0.02 mm and angular tolerances within ±15′. Hole locations for terminal positioning are held to ±0.015 mm to ensure precise alignment within relay housings.
Riveting Depth and Coaxiality
Cold-headed rivet positioning and head height are controlled within ±0.05 mm. Coaxiality between the contact tip center and the spring centerline deviates by no more than 0.03 mm to prevent asymmetric contact wear.
Spring Force Calibration
Each batch undergoes deflection testing to guarantee spring force output within a ±5% window of the designated design load, ensuring consistent pickup and dropout performance.
Burr and Debris Management
Edge burrs are strictly limited to less than 5% of the material thickness via precision deburring, eliminating internal debris risks inside hermetically sealed relay enclosures.
Application Scope of Electrical Moving Contact Relays
Smart Meter Latching Relays
Designed for high-current pulse switching in single-phase and three-phase smart electricity meters, handling transient switching surges up to 100 A.
Automotive Power Relays
Deployed in 12 V to 48 V vehicle electrical distribution boxes, window lift motors, and auxiliary heating control circuits exposed to constant mechanical vibration.
Industrial Control Contactors
Integrated into auxiliary switching modules and safety contactors requiring high switching frequency and extended operational lifespans exceeding 1,000,000 cycles.
Home Appliance Power Boards
Utilized in heavy-load appliance switching relays for air conditioner compressors and washing machine heating elements, operating safely under elevated ambient temperatures.
Frequently Asked Questions about Electrical Spring Contacts
What is the primary advantage of using a beryllium copper base for Beryllium Copper Stamping Spring?
+
-
Beryllium copper provides exceptional fatigue resistance and high yield strength, allowing the spring arm to flex millions of times without permanent deformation or loss of contact pressure.
How does cold-heading ensure the secure retention of silver contact tips?
+
-
Cold-heading applies mechanical pressure to force the silver rivet shank into the pre-punched spring hole, creating an interference fit and cold-weld bond that prevents loosening under high vibration.
What is the standard minimum order quantity for custom Relay Moving Spring assemblies?
+
-
Our standard minimum order quantity starts at 1,000 pieces, with scalable production capacity available for high-volume OEM annual blanket orders.
What is the typical lead time for prototype samples versus mass production?
+
-
Custom prototype samples are typically completed and shipped within 10 to 15 days, while standard mass production orders require 10 to 15 days depending on volume.
How are parts packaged to prevent oxidation during international transit?
+
-
Parts are vacuum-sealed in anti-static blister trays with desiccant packs, then packed into reinforced corrugated cartons to prevent moisture ingress and mechanical damage.
contact us
Contact our engineering team today to submit your drawings or request material samples of Moving Spring Riveted Assembly for Relays for your next low-voltage switchgear project. Benefit from direct source pricing and strict IATF 16949 quality assurance.
