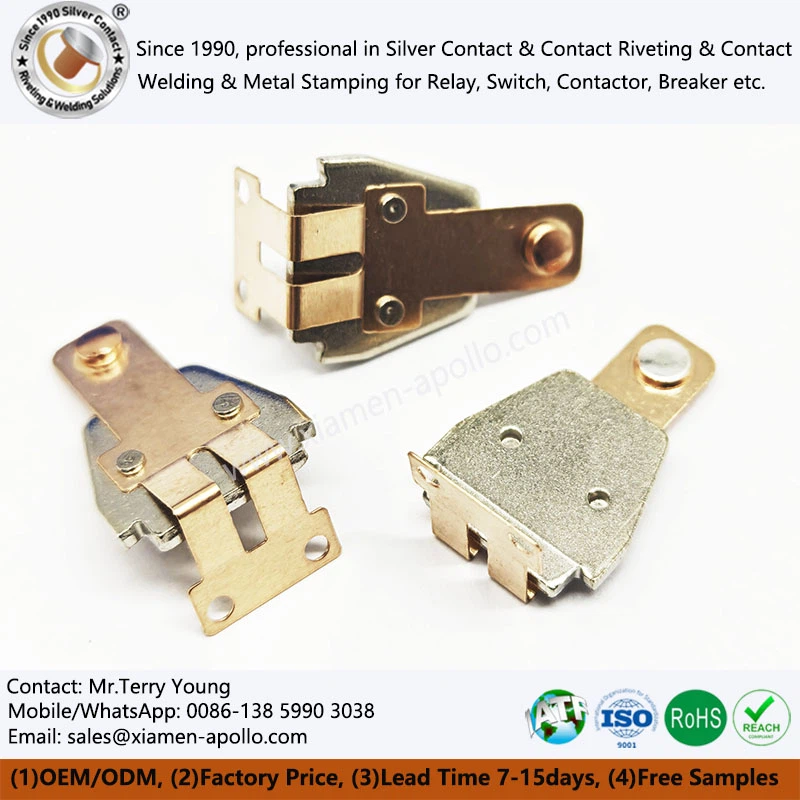

Riveted Silver Electrical Contacts

Riveted Silver Electrical Contacts integrate highly elastic beryllium copper springs, high-performance silver contacts, and precision armatures into a single functional module through automated precision riveting. This not only forms the physical basis for the mechanical action of the relay but is also a key subsystem that determines its contact resistance, operating speed, mechanical life, and electrical life.

Send Inquiry

Products Description

Riveted Silver Electrical Contacts are moving spring riveting assemblies developed for T90 general-purpose relays and high-reliability switching systems. They integrate beryllium copper springs, silver contacts, and armatures with high precision, forming a directly assembleable functional module. This solution ensures low contact resistance and arc resistance in the contact area while achieving a high degree of synergy between elastic drive and magnetic attraction, making it suitable for new energy, battery systems, and industrial control relay platforms.

Three-in-One In-Die Riveting Process

Beryllium Copper Moving Spring Stamping

Utilizing high-precision continuous die stamping equipment, ultra-thin BeCu strips of 0.05-0.3mm are stamped, achieving a dimensional accuracy of ±0.01mm. This effectively prevents cracking and deformation of the strip during stamping, ensuring the dimensional accuracy and shape stability of the In-Mold Riveting Components.

Automatic Silver Contact Riveting

Automated riveting equipment precisely rivets silver contacts to designated positions on the stamped beryllium copper moving spring. This process achieves a low-resistance connection, ensuring stable current transmission between contacts and reducing the impact of contact resistance on system performance for In-Die Electrical Riveting Contacts.

Armature Stamped Component Precision Assembly

The armature stamped component is precisely assembled with the Electrical In-Die Riveted Connections. Rigid support positioning ensures accurate fit between components, improving the mechanical stability and electrical performance of the entire moving spring assembly.

In-die Riveted Silver Electrical Contacts

Application Areas

T90 General Purpose Power Relay	Main circuit switching in industrial control and HVAC systems for In-Die Rivet Electrical Contacts.
Automotive Control Relay	Engine management, battery disconnection, and lighting control modules for Electrical In-Die Riveted Connections.
New Energy BMS Contactor	Signal feedback and safety disconnection within the battery pack for In-Die Electrical Riveting Contacts.
Smart Home Micro Switch	Low-force actuation unit in door locks and sensors.

Applications of Riveted Silver Electrical Contacts

Quality Control and Industry Certification

Defect-Free Inspection

100% CCD inspection before shipment to ensure every In-Mold Riveting Components is free of visual defects.

Magnetic Performance Testing

Dedicated magnetic performance testing equipment ensures In-Die Electrical Riveting Contacts magnetic parameters meet international standards.

Industry Certification

Certified by ISO9001:2015 Quality Management System and IATF16949 Automotive Industry Quality Management System for Electrical In-Die Riveted Connections.

Authoritative Certificates for Riveted Silver Electrical Contacts

contact us

If you are looking for a high-precision, high-reliability Riveted Silver Electrical Contacts solution for your relay projects, please contact our engineering team. We will quickly assess your application requirements and provide professional advice on mass production.
