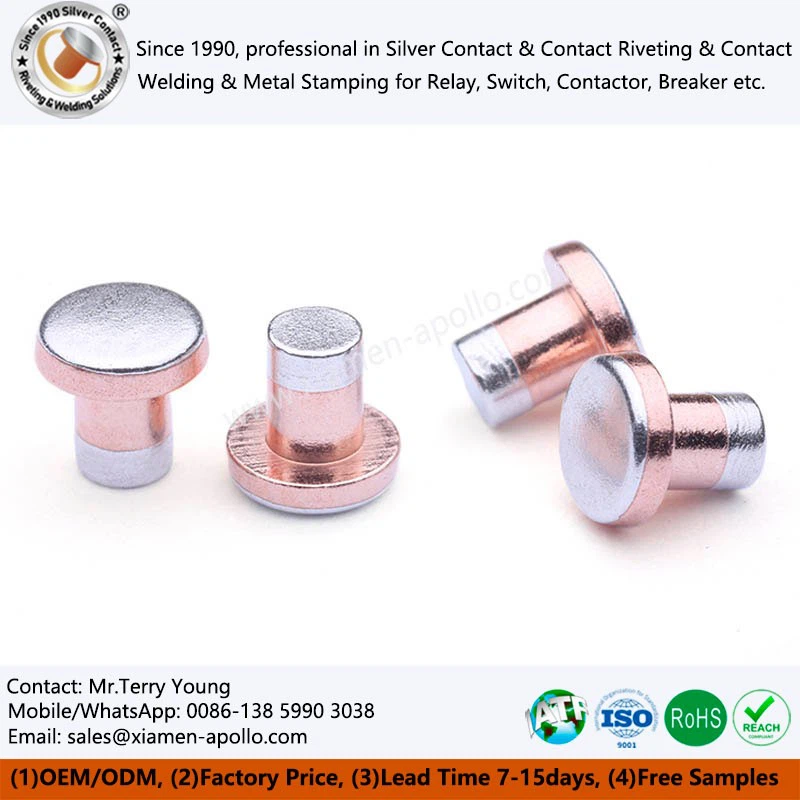

Double Sides Rivets, also known as AgCuAg Double Sides Rivet Contacts, is an advanced solution engineered for high-frequency switching devices, especially industrial relays requiring bidirectional or changeover contact actions. These Tri-Metal Contact Rivets are composed of silver alloy on both the head and foot, with a high-conductivity copper core in between, forming an Ag–Cu–Ag layered structure.

This innovative structure offers the same electrical performance as solid silver contacts but at a 30–50% material cost reduction, making it an ideal alternative for cost-sensitive applications without compromising contact reliability.

Unique tri-metal structure design

This tri-metal structure design is the core highlight of the Trimetal Contact Rivets. The silver alloy material of the head and foot gives the contacts excellent conductivity and low contact resistance, ensuring that the current can be transmitted stably and efficiently. The middle copper layer further enhances the overall conductivity while providing good mechanical support.

Excellent replacement performance

It can replace traditional integral Tri-Metal Contact Rivets. According to actual calculations, the cost can be saved by at least 30-50%. Under the premise of ensuring performance, it greatly reduces the production cost of the enterprise and improves the market competitiveness of the product, especially for industrial application scenarios with strict cost control.

Precise process guarantee

During the production process, we use advanced cold-pressure welding technology to composite and weld the three layers of silver alloy, copper, and silver alloy together. Cold pressure welding uses pressure to make the metal plastically deform without heating, squeeze out the oxide film and other impurities on the welding end surface, and press the pure metal to a certain atomic distance to form a lattice plane, thereby producing a bond between atoms for Electric Double Metal Contact Rivet.

AgCuAg Trimetal Contacts

High efficiency and energy-saving

The unique tri-metal structure and material combination enable the Electric Double Metal Contact Rivet to significantly reduce energy loss and improve energy utilization efficiency during operation. This not only helps to reduce the operating costs of enterprises, but also meets the requirements of modern industry for energy conservation and emission reduction, and contributes to sustainable development.

High reliability

After strict quality inspection and reliability testing, the product can work stably and reliably in various harsh industrial environments. The excellent properties of silver alloy and copper ensure that the product will not fail during long-term use, reduce maintenance costs and downtime, and ensure the continuity and stability of industrial production for AgCuAg Trimetal Contacts.

Fast response

The optimized tri-metal structure design enables the relay to have a fast switching response time and can quickly and accurately control the on and off of the circuit. This is very important for application scenarios that require fast response, such as automated production lines, intelligent control systems, etc., and can ensure the efficient operation of the equipment.

Easy to install

The design of the Trimetal Contact Rivets fully considers the convenience of installation, and its structure and size are optimized for easy installation and removal in various equipment. Users can easily install it into the corresponding relay without complex tools and skills, saving installation time and labor costs.

Double Sides Rivets can save costs 30-65 than Solid Silver Contacts
