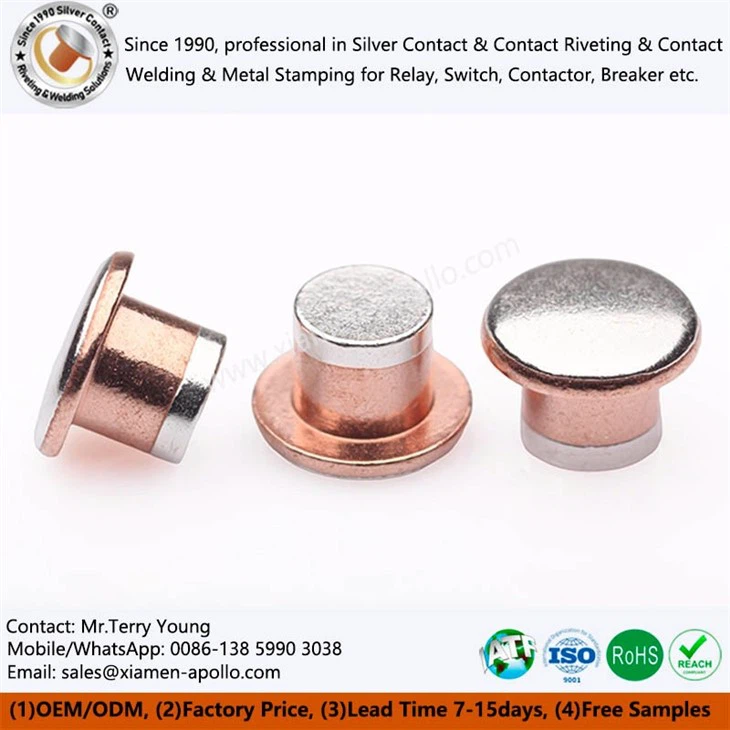

What are the Tri-metal Electrical Rivet Contacts?
Tri-metal electrical rivet contacts engineer a dual-sided, low-resistance current path across movable relay blades and double-throw switching mechanisms while slashing precious metal consumption. By replacing the central section of a solid silver rivet with an oxygen-free C11000 copper core, these three-layer components provide active arc-erosion resistance on both contact faces without sacrificing thermal dissipation. As a direct China factory and customized manufacturer, we supply wholesale volumes of precision cold-headed tri-metal rivets engineered for high-frequency automotive relays, smart home latching switches, and industrial low-voltage circuit breakers.

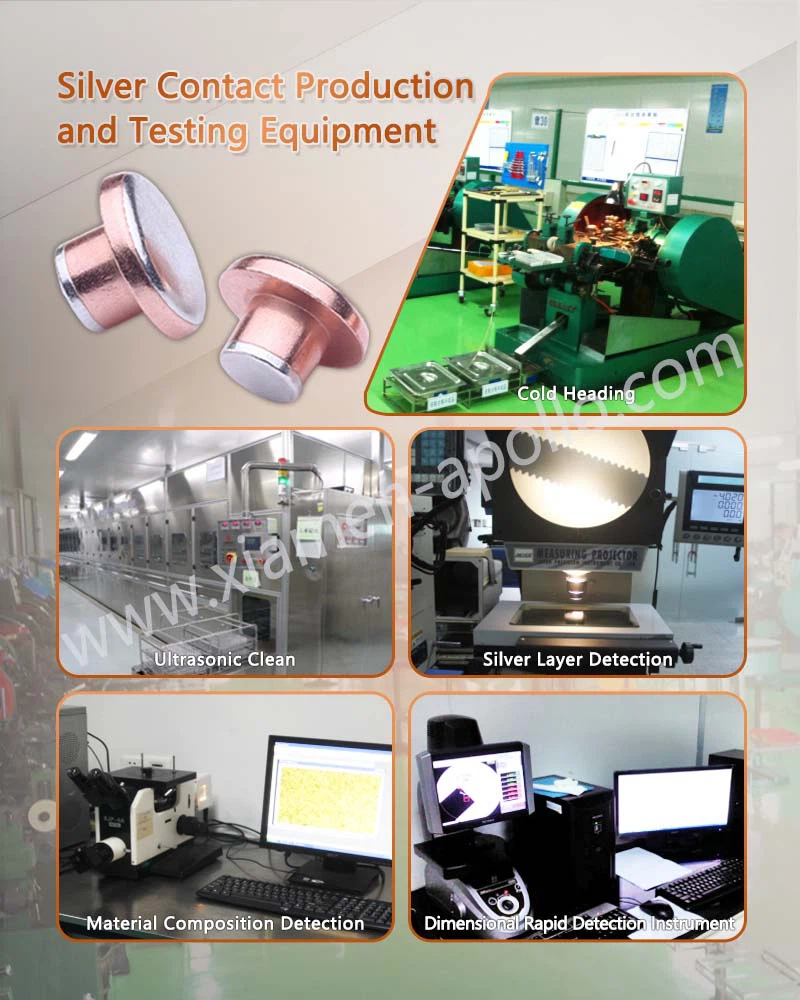

Raw Material Control & Automated Production Process of Trimetal Electric Contacts
Internal Powder Metallurgy & Wire Extrusion
We maintain strict upstream control over silver alloy homogeneity by blending atomized silver and tin oxide powders in-house, followed by isostatic pressing, sintering, and hot extrusion. Controlling the sub-micron dispersion of SnO2 particles (0.5–2.0 μm) eliminates localized silver pooling and ensures predictable arc-erosion rates across multi-million-cycle lifespans.
01
Precision Multi-Station Cold Heading
Clad tri-metal wires are fed directly into high-speed, multi-station cold heading machines operating at up to 450 strokes per minute. Carbide-lined progressive dies upset the wire into complex spherical, flat, or grooved head geometries without generating scrap chips, work-hardening the copper shank to prevent buckling during downstream riveting assembly.
02
Controlled Atmosphere Bright Annealing
Following cold forming, rivets undergo continuous belt-furnace annealing under a protective nitrogen-hydrogen atmosphere. This thermal cycle relieves internal forming stresses in the copper core to restore optimal ductility for cold orbital riveting, while keeping the outer silver contact surfaces completely bright and free of copper oxide migration.
03
100% CCD Optical Sorting & XRF Verification
Every production batch passes through multi-camera CCD optical sorting stations that inspect 12 dimensional parameters-including head concentricity, silver layer thickness ratio, and burr absence-at 600 parts per minute. Statistical samples undergo destructive cross-section metallography and X-ray fluorescence (XRF) spectroscopy to verify bonding integrity before vacuum-sealed packaging.
04

Customization Support for AgCuAg Composite Rivet Contacts
Custom Layer Thickness Ratios
Engineering teams can specify asymmetrical cladding ratios-such as a thicker AgSnO2 top layer for the primary inductive load break and a thinner fine silver bottom layer for a low-load signal return. Customizing the silver-to-copper volume ratio allows precise alignment with target electrical endurance cycles while minimizing raw silver surcharge exposure.
Specialized Head & Shank Geometries
We manufacture custom head profiles including crowned (spherical radius R), flat, cylindrical, and serrated designs tailored to specific contact bounce and closing force parameters. Shanks can be engineered with solid, semi-tubular, or knurled configurations to achieve zero-spin mechanical retention when staked into thin C5191 phosphor bronze or C17200 beryllium copper movable springs.
Automated Staking & Sub-Assembly Integration
Beyond supplying loose wholesale rivets in anti-tarnish vacuum bags or tape-and-reel packaging, our factory provides integrated in-die riveting and high-speed orbital staking onto stamped copper terminals. Delivering pre-assembled movable blade sub-assemblies eliminates secondary handling damage and guarantees perpendicular contact alignment for automated relay assembly lines.
Rapid Prototyping & DFM Engineering Review
Our tooling engineers conduct Design for Manufacturability (DFM) reviews within 24 hours of receiving STEP or 2D CAD drawings, analyzing cold-heading upset ratios and corner radii to prevent die cracking. Custom carbide tooling is fabricated in-house, delivering T1 engineering samples with full dimensional and metallographic inspection reports within 10 to 15 business days.

Frequently Asked Questions about Tri Metal Contact Rivets
What is the layered structure of Silver Alloy Electric Tri-Metal Contacts?
They consist of a silver-alloy head, a copper intermediate layer, and a silver-alloy shank-a three-layer composite structure featuring silver-based contact surfaces at both ends.
Can tri-metal contact rivets be manufactured with different alloys on the top and bottom faces?
Yes, we routinely produce asymmetrical tri-metal rivets featuring AgSnO2 on the primary high-load make/break face and fine silver (Ag 99.99%) or AgNi on the secondary face. This configuration optimizes both high-current arc resistance and low-level signal continuity in double-throw (Form C) relays.
Which silver alloy face is recommended for capacitive LED loads versus resistive heating loads?
For capacitive LED drivers and smart home latching relays with high inrush currents, AgSnO2 (88/12) or AgSnO2In2O3 is mandatory to prevent contact welding. For purely resistive loads or low-current signal switching, AgNi (90/10) provides lower initial contact resistance and superior cold-heading formability.
How do you verify silver cladding thickness consistency across a wholesale production batch?
We utilize non-destructive X-ray fluorescence (XRF) thickness gauges during in-process quality checks alongside destructive metallographic cross-sectioning on every lot. Digital microscopy verifies that the minimum silver alloy thickness meets blueprint specifications across the entire crown radius, preventing premature copper exposure.

Contact us
Submit your drawing and annual demand for a technical review, sample plan, and factory quotation for Tri-metal Electrical Rivet Contacts.
