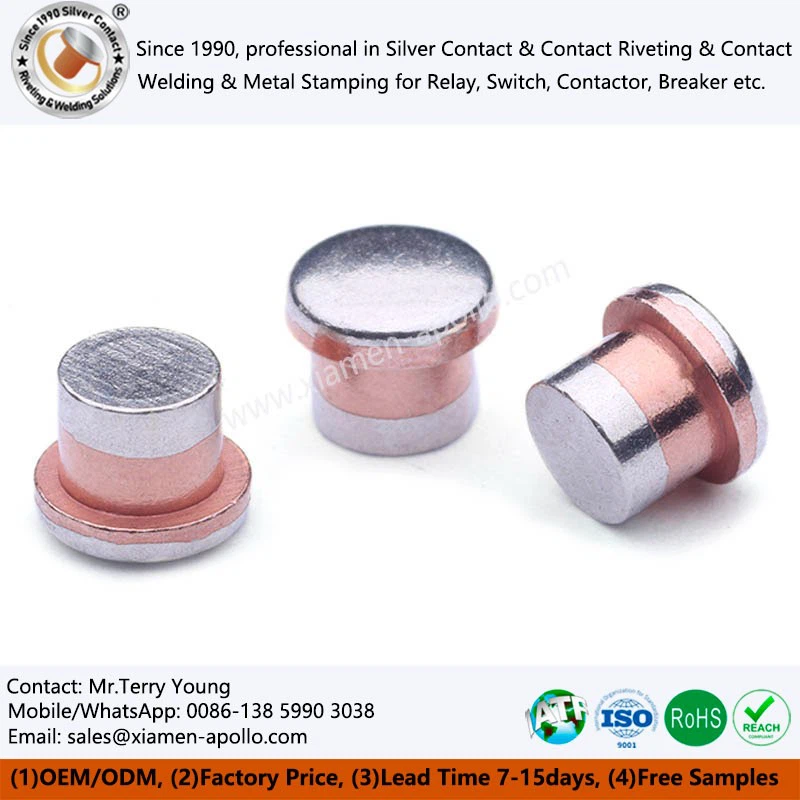

Trimetal Electric Contacts

Trimetal electric contacts are a high-performance contact material made using a three-layer heterogeneous metal structure. Their design concept is based on rationally combining the properties of different metal layers to achieve a comprehensive balance of electrical conductivity, wear resistance, resistance to welding, and cost optimization. Compared to single-metal or bi-metal contacts, trimetal contacts offer significant advantages in both performance and cost-effectiveness.

1. Superior Performance: Outshines Traditional Materials in Three Key Areas
The three-metal composite structure scientifically separates the functions of electrical conductivity, thermal conductivity, and mechanical support, optimizing performance by assigning each material to its specific role.

Exceptional Electrical Conductivity: The silver-based alloy surface layer ensures a Trimetal Electrical Contact resistance that is 25% lower than traditional materials, significantly reducing energy loss and temperature rise.

2. Outstanding Arc Resistance: Extends Equipment Lifespan
The unique material combination and structural design provide excellent arc resistance, significantly extending the service life of the Multi-layer Silver Contacts.

Reduced Arc Erosion: Compared to bimetallic materials, arc erosion is reduced by 30-40%, significantly extending the replacement cycle.

Stable Contact Performance: Maintains stable contact resistance throughout its lifespan, with fluctuations controlled within ±15%.

Excellent Resistance to Welding: Effectively prevents Electrical Trimetal Rivet Contact welding under high currents, improving equipment safety and reliability.

3. Significant Cost Optimization: Achieves Optimal Value
Through scientific material composition and structural design, performance is enhanced while effectively controlling costs.

Optimized Precious Metal Usage: Precise control of the silver layer thickness reduces precious metal usage by 20-30% while maintaining performance.

Lower Overall Cost: Compared to the Trimetallic Relay Contact, costs are reduced by 40-50% while providing comparable or even superior performance.

Reduced Maintenance Costs: Longer replacement cycles reduce downtime, resulting in a 35% reduction in overall maintenance costs.

We adhere to a comprehensive manufacturing philosophy that integrates materials, processes, and testing:

Controlled Materials: Raw materials such as silver, copper, and nickel are sourced from internationally certified suppliers, ensuring full traceability for each batch.
Advanced Processes: We utilize vacuum diffusion bonding, precision stamping, and automated inspection technologies to guarantee structural integrity and dimensional accuracy.
Rigorous Testing: Each batch undergoes adhesion strength testing, resistance measurement, visual inspection, and salt spray testing.
Environmental Compliance: We comply with RoHS and REACH directives.

1. Microstructure: Atomic-level bonding, no interfacial defects
Scanning electron microscopy (SEM) images clearly show that there are no pores or cracks at the interfaces of the three metal layers, with continuous grain boundaries and an atomic diffusion layer thickness of 2-5 μm, ensuring uniform current and stress distribution and preventing localized overheating or fracture due to interfacial defects.

2. Surface Treatment: Uniform, dense, and flawless
Functional layer surface: Using atomic layer deposition (ALD), the coating thickness uniformity is ≤±0.05 μm, with no pinholes or defects, and no visible defects under 1000x magnification;
Edge treatment: All edges are precisely deburred and electro-polished, with a surface roughness Ra ≤ 0.2 μm, eliminating the risk of burrs puncturing the insulation layer.

3. Dimensional Accuracy: Micrometer-level control, suitable for automated assembly
Thickness control: Monitored by an online X-ray thickness gauge, thickness variation ≤ ±0.005 mm, meeting customer requirements for precise Trimetal Moving Contact resistance;
Profile accuracy: Measured by a coordinate measuring machine, flatness ≤ 0.01 mm, parallelism ≤ 0.02 mm, ensuring a perfect fit with mating components.
