Products Description
Our Trimetal Rivet Contacts for Electrical use advanced technology and premium materials to ensure excellent conductivity and long-term durability. The contacts are composed of a highly conductive silver layer, a wear-resistant intermediate alloy layer, and a solid bottom layer. This unique three-layer design ensures stability under high frequency operation and extreme environments. Each contact undergoes rigorous production and quality testing to ensure that the thickness and adhesion of the silver layer meet the highest standards. These rivet contacts are widely used in various industrial control systems, which can effectively improve the operating efficiency and extend the service life of the equipment. Rivet contacts are the perfect combination of high performance and economy.
Characteristics and advantages of cold heading process
High Precision
The cold heading process can achieve high-precision dimensional control when processing three-composite silver contacts. This process reduces the waste of raw materials and improves product consistency and reliability.
Superior Strength
During the cold heading process, the mechanical strength of the contacts is significantly improved because the metal is pressed at room temperature. This strength provides additional durability and long-term stability in high-load use environments.
Good Heat Treatability
The cold heading process can ensure the stability of the heat treatment effect of the metal after processing, thereby improving the hardness and wear resistance of the contacts, making them superior in various working conditions.
Smooth Surface
The surface finish of the cold-headed contacts is high, which reduces friction resistance, which has a positive effect on the electrical conductivity of the contacts and ensures efficient current conduction.
High Processing Efficiency
The cold heading process enables efficient mass production and shortens the production cycle. This efficiency not only reduces production costs, but also improves the overall operational capacity of the production line.
Process Consistency
The high degree of automation of the cold heading process ensures the consistency of each contact. This consistency is especially important in large-scale production and can effectively control the quality and performance of the product.
Strong material properties
The cold heading process applies high pressure to the metal at room temperature, which can significantly increase the hardness and strength of the material, enhancing the durability and mechanical properties of the contacts.

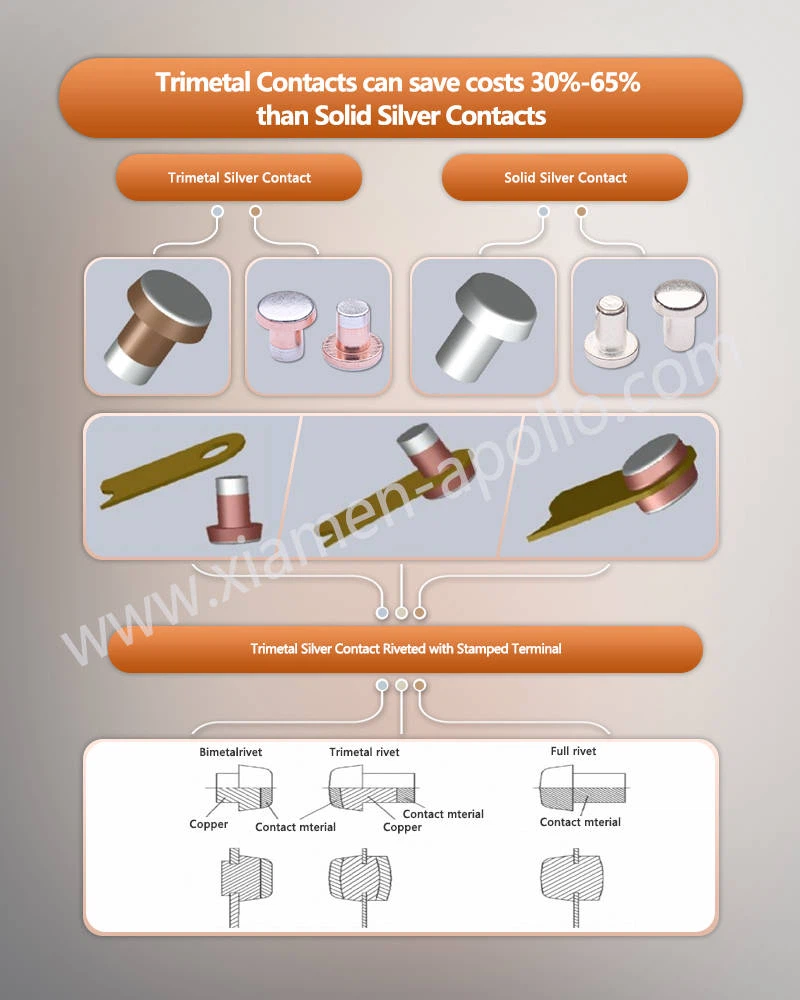

Tri-composite contacts save 30%-65% of the cost compared to pure silver contacts
In the field of electrical hardware accessories, triple-composite contacts can achieve significant cost savings compared to pure silver contacts, ranging from 30% to 65%. This cost advantage comes from the unique structure and material selection of triple-composite contacts. Compared with all-silver contacts, triple-composite contacts significantly reduce the amount of precious metals by forming a composite structure between the silver layer and other high-performance metal substrates, while maintaining excellent electrical conductivity and mechanical strength.
Specifically, the core technology of triple-composite contacts lies in the use of low-cost substrates as the main structural part of the contacts, and only using high-quality silver layers on the contact surface. In this way, the demand for silver materials is greatly reduced, thereby reducing production costs. In addition, the advanced composite process ensures a strong bond between the silver layer and the substrate, ensuring the reliability and durability of the contacts under high load and frequent operating conditions. In general, this design not only optimizes cost-effectiveness, but also ensures the stability of product performance, making triple-composite contacts an ideal choice between cost control and performance requirements.
Processing flow of three composite contacts
| Raw material selection | High-quality substrate and silver materials are carefully selected to ensure the performance and durability of the three-composite contacts. The raw materials are strictly tested to ensure that they meet the standard requirements. |
| Material cutting | The metal materials are precisely cut according to the design specifications to ensure the dimensional consistency and processing accuracy of each contact component. |
| Cold heading | Using an advanced cold heading process, the metal materials are pressed at room temperature to form the basic shape of the contacts. This process improves the strength and structural stability of the contacts. |
| Silver plating | The key parts of the contacts are silver-plated, and the silver layer is uniformly attached through electroplating technology to enhance conductivity and wear resistance. |
| Composite bonding | The silver layer is precisely bonded to the substrate to ensure a strong bond between the two and prevent the silver layer from falling off or peeling off during use. |
| Machining | The contacts are further mechanically processed, including grinding and trimming, to ensure that the surface finish and dimensional accuracy of each contact meet the standard requirements. |
contact us
Feel free to contact us! Our team is happy to provide you with detailed information and technical support about Trimetal Rivet Contacts for Electrical. No matter what questions or needs you have, we will be happy to answer them and provide the best solutions for you. Please contact us through the following methods, we look forward to working with you to discuss how to meet your needs.
