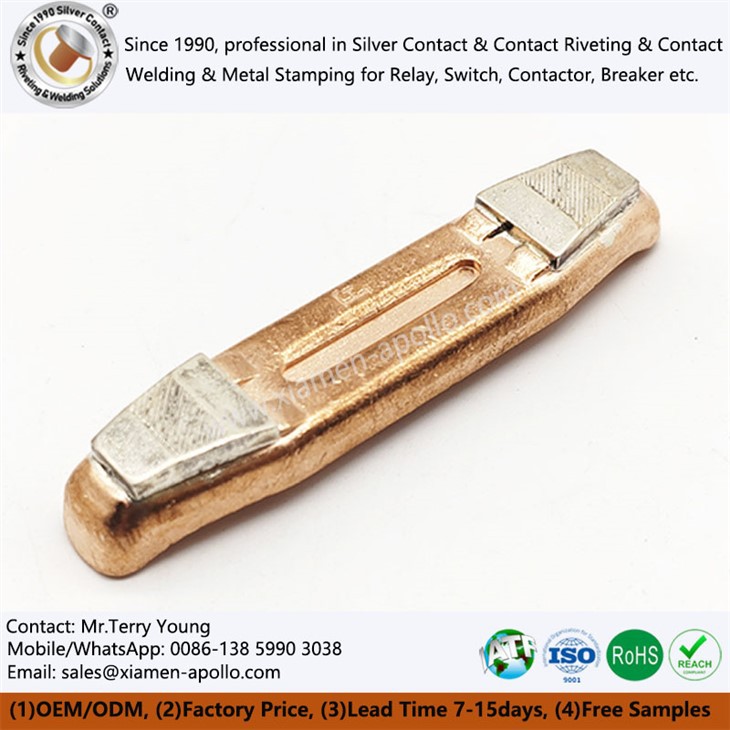

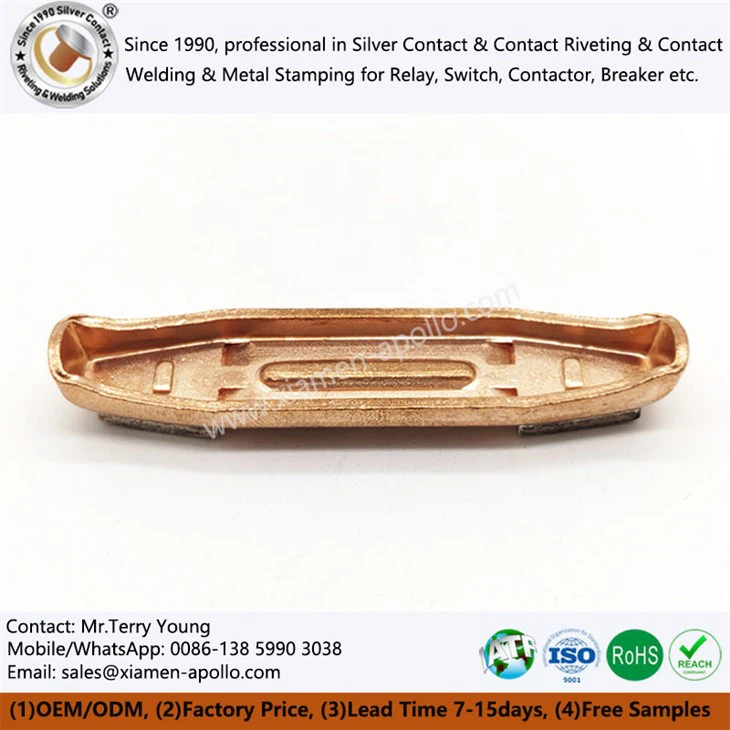

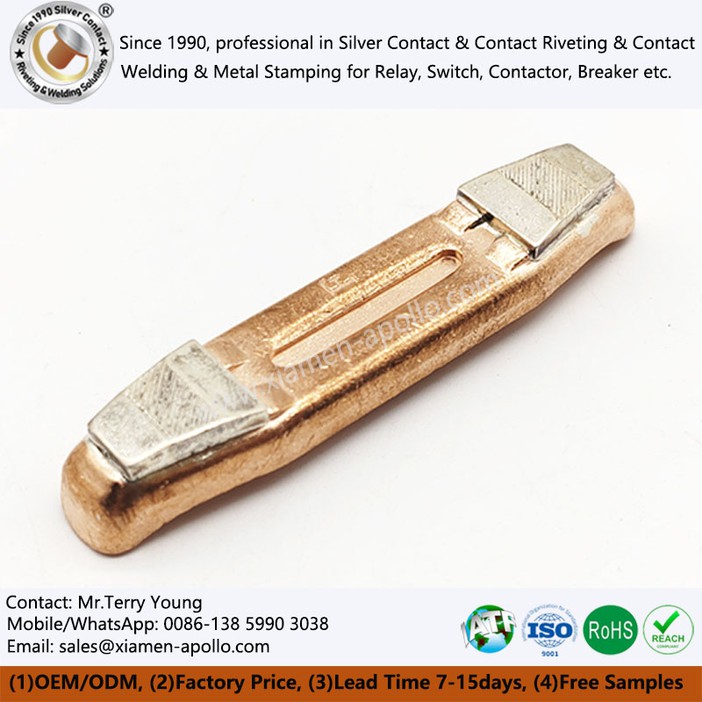

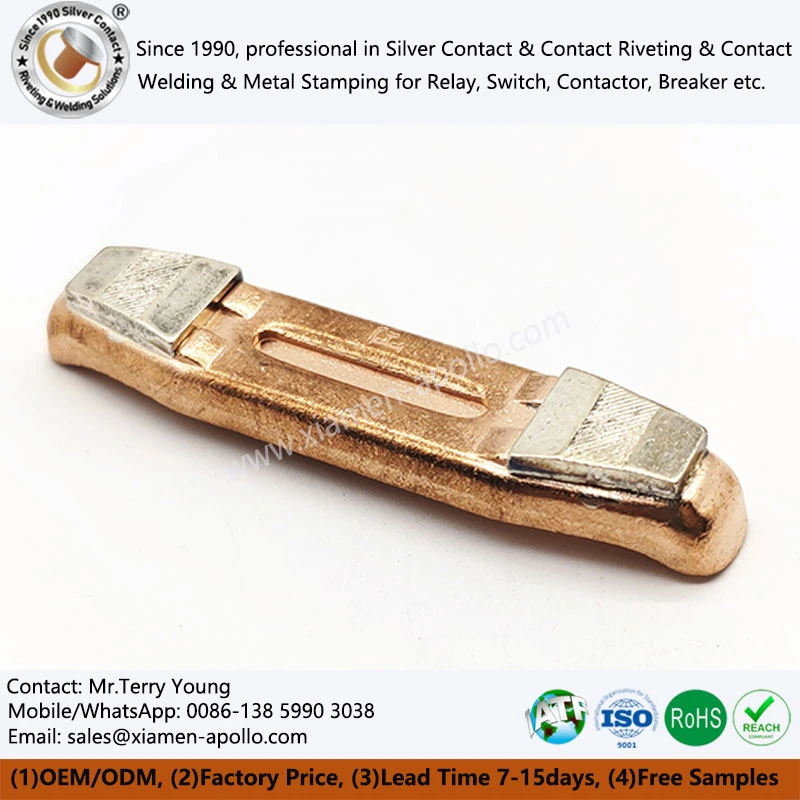

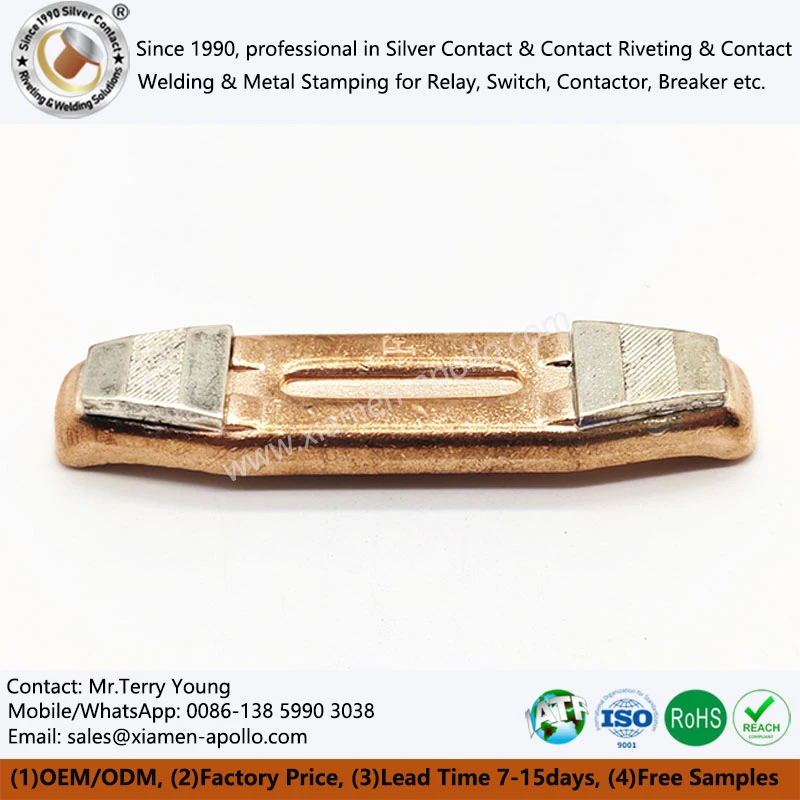

What is Electrical Connection Brazing?
Electrical Connection Brazing joins an electrical contact or conductive component to a stamped metal carrier through a controlled brazing process. The joint design is selected according to the contact material, carrier material, current path, mechanical load, and required production volume.
For relay contacts, switch contact assemblies, low-voltage circuit breakers, contactors, and related conductive components, the brazed interface must be evaluated as part of the complete current path rather than as an isolated joining operation. Material pairing, filler-metal selection, joint geometry, heating method, positioning accuracy, and post-brazing inspection directly affect electrical and mechanical performance.

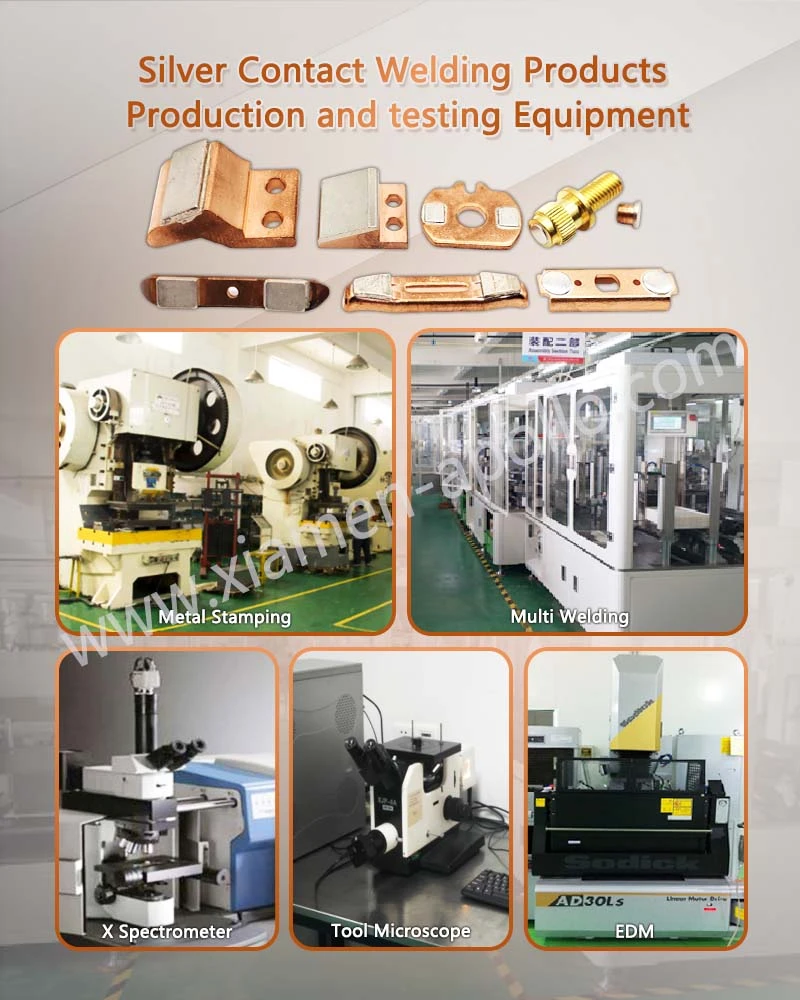

Key Equipment & Process Advantages of Brazed Electrical Contacts
Precise Parameter Control
Medium‑frequency generators regulate thermal input within ±2°C. We tune current, pressure, and dwell time according to material grade and Low Resistance Contact Brazing part geometry, ensuring full filler‑metal melting while preserving the copper substrate's original grain structure.
Intelligent automatic operation
Robotic pick‑and‑place grippers align silver contact buttons onto flux‑coated copper bases before heating, removing manual positioning deviation during high‑volume Contact Joining Brazing runs.
Efficient thermal management system
Optimized induction‑coil geometry concentrates heat on the brazing joint and diverts excess thermal load away from heat‑prone zones to minimize Brazed Electrical Contacts warpage.

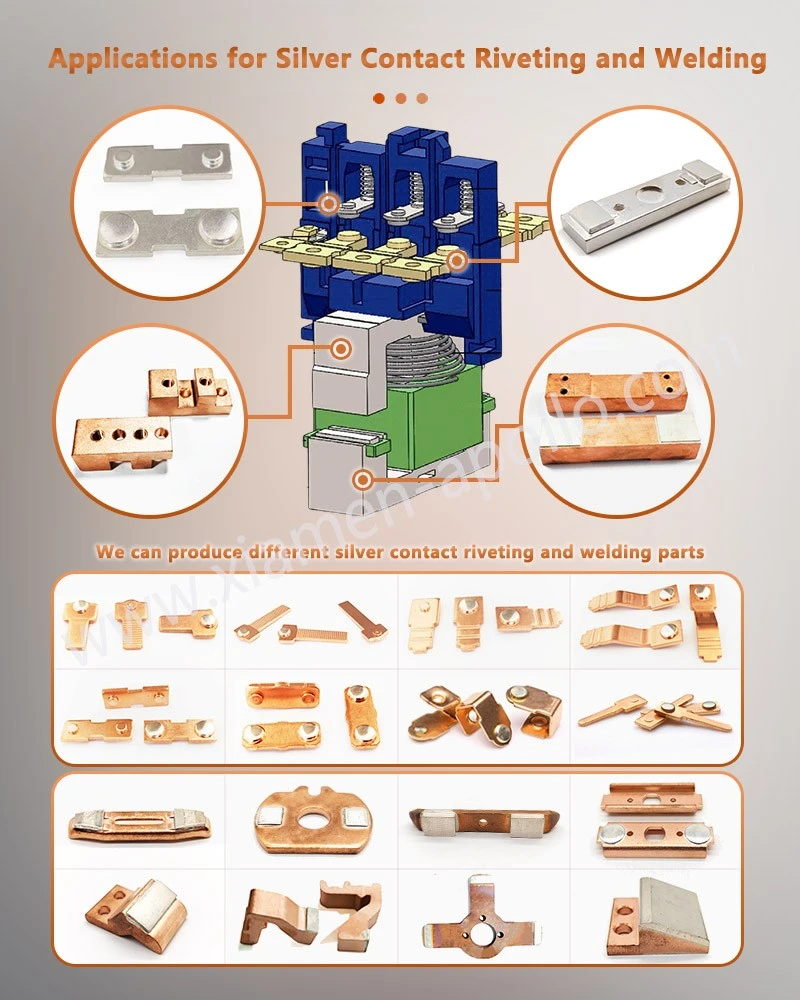

Application Fields of AC Contactor Silver Contact Welding Assemblies
800V HVDC EV Contactors
AC Contactor Silver Contact Welding Assemblies are applied for managing high‑voltage direct current switching and arc suppression in electric vehicle power distribution units.
Smart Meter Latching Relays
Circuit Breaker Contact Brazing Assemblies are used for providing dependable, low‑loss electrical bridging for high‑cycle remote utility disconnect switches.
Industrial MCCB Breakers
Sustaining severe short‑circuit current spikes and mechanical closing impacts within molded case circuit breakers.
Automotive Horn Switches
Electrical Switch Silver Contact Stamping helps ensure continuous, corrosion‑resistant mechanical actuation across harsh under‑hood environmental conditions.
Packaging Solution of Welded Assembly of Silver Electrical Contacts
Customized Protection Design
Molded packaging cavities match the exact 3D geometry of each Welded Assembly of Silver Electrical Contacts, preventing shifting or edge chipping during international transport.
Multi‑layer Protection Structure
Electrical Contact Assemblies with Silver Welded Tips are vacuum‑sealed in anti‑static blister packs, cushioned with high‑density foam, and packed into double‑walled corrugated export cartons.
Clear Product Identification
Outer cartons feature barcoded labels detailing material grades, lot numbers, manufacturing dates, and exact piece counts for streamlined warehouse logging.
Frequently Asked Questions
Why is induction brazing preferred over flame brazing for electrical terminals?
+
-
Induction brazing delivers localized, highly repeatable thermal energy that eliminates open flames, prevents surface oxidation, and creates uniform internal diffusion layers across the entire contact joint.
What causes high contact resistance in Silver Tipped Copper Contact Assembly?
+
-
High contact resistance typically stems from microscopic voids, incomplete filler metal wetting, or surface oxide entrapment caused by improper heating temperatures or poor pre‑cleaning protocols.
How do you ensure consistent alignment of the silver contact tip on the copper base?
+
-
We utilize automated optical inspection (AOI) systems combined with precision robotic fixtures that lock component coordinates before the induction heating sequence.
Can these Silver Contact Joined Copper Assemblies operate in high‑vibration environments?
+
-
Yes. The rigid metallurgical bond created via medium‑frequency brazing withstands severe mechanical shock and high‑frequency vibration without microphonic connection loss.
What surface preparation steps are performed before the Contact Welding process?
+
-
All components undergo ultrasonic degreasing, chemical acid pickling, and mechanical deburring to remove surface contaminants and ensure optimal capillary filler flow.
contact us
Partner with an experienced direct manufacturer to secure your supply chain for high-performance Electrical Connection Brazing. Contact our engineering team today to review your technical drawings, request material test data sheets, and lock in competitive wholesale pricing for your next manufacturing cycle.
