Products Description

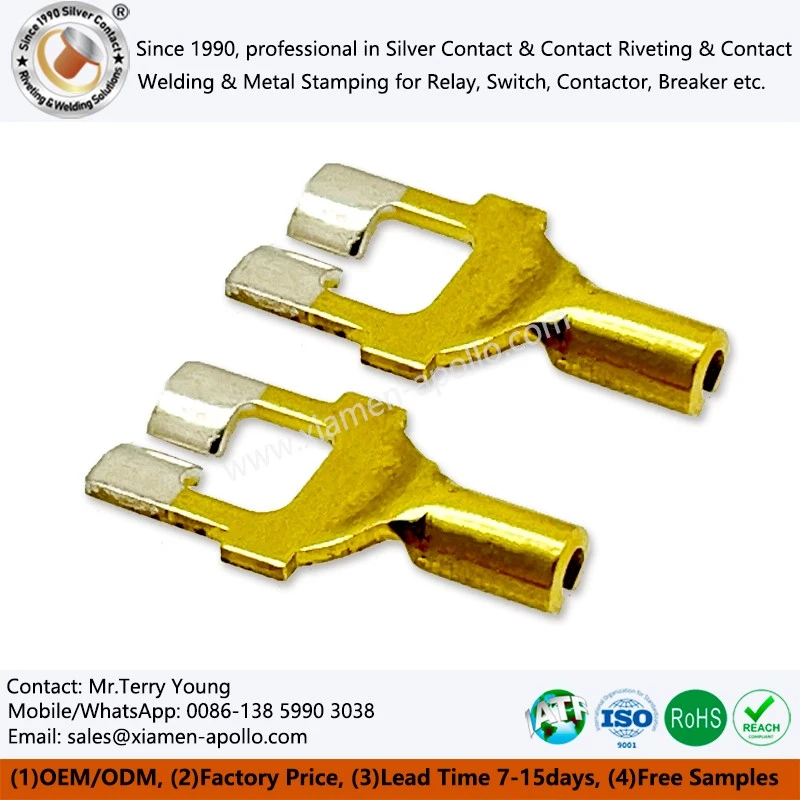

Designed for mission-critical applications like relays, circuit breakers, and contactors, Electrical Contact Brazed Stamping Components combine reliable switching capability with high-efficiency conductivity. These integrated assemblies go beyond conventional parts, utilizing advanced brazing processes-including fine tip brazing-to create a permanent, high-strength bond between silver-based contacts and copper alloy carriers. Backed by more than thirty years of specialized experience, each unit ensures repeatable, stable performance even in severe electrical and mechanical environments.
Product details and structural disassembly
| Structural Hierarchy | Material | Function Description |
| Upper part: Contact end | High-purity silver (Ag) or silver alloy | Provide excellent conductivity, thermal conductivity and arc welding resistance for Silver Contact Brazed Assemblies, ensuring stable and reliable contact points. |
| Middle part: Brazing layer | High-temperature silver-based solder | Through the precisely controlled Contact Welding process, a metallurgical bond is achieved between the silver contact and the base material, ensuring a secure connection with extremely low resistance. |
| Lower part: Supporting base | High-quality brass stamped parts | Provide mechanical support, conductive pathways and installation interfaces with external components. The structure of Brazed Contacts is precisely stamped, ensuring good dimensional consistency. |
Advanced manufacturing techniques
Precision stamping: Utilizing high-precision multi-station stamping machines, the dimensional tolerance of the base body for Silver Contact Welded to Brass Stamps is precisely controlled to ±0.01mm.
Automated brazing: Utilizing high-frequency induction or resistance brazing within a protective atmosphere (e.g., hydrogen), the Brazing Silver Contacts to Copper Bars process is regulated by precisely controlled temperature curves. This guarantees full wetting and consistent flow of the brazing filler, creating a robust metallurgical bond without voids or incomplete soldering, a critical factor in achieving superior product reliability.
Full-automatic inspection: Integrating optical size detection and ultrasonic non-destructive testing, 100% ensuring the welding quality of Custom Electrical Contact Resistance Brazing Assemblies.
Comparison of competitive product advantages
Higher conductivity
Circuit Breaker Contact Brazing Assemblies use high-purity silver materials, which have better conductivity than competing products.
Stronger corrosion resistance
The silver contact points have excellent corrosion resistance, extending the service life of AC Contactor Silver Contact Welding Assemblies.
More flexible customization services
Brazed Electric Contacts are provided to meet the specific needs of customers.
contact us
If you need to know more about the Electrical Contact Brazed Stamping Components product information or have any customization requirements, please feel free to contact our sales team. We will provide you with professional technical support and services.
