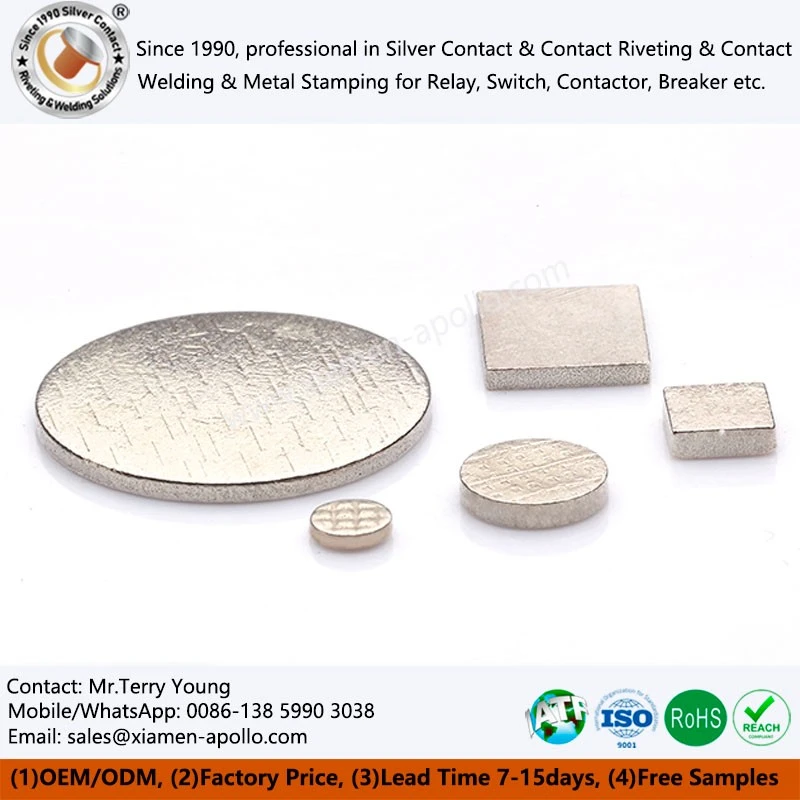

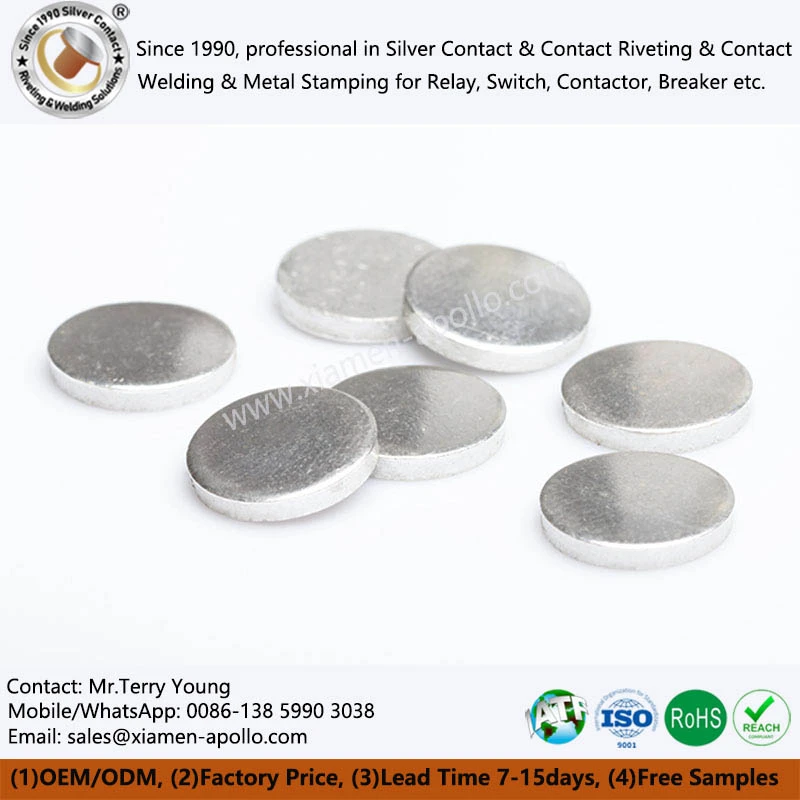

What is the Silver Tipped Contact?
As an established electrical contact manufacturer since 1990, we deliver high-performance brazed silver contacts engineered specifically for demanding low-voltage switching devices. These components utilize a dual-material architecture, pairing an erosion-resistant precious metal working face with a cost-effective conductive substrate to optimize both electrical reliability and material expenditure. Utilizing advanced multi-axis stamping and precision brazing technologies, each round contact sheet maintains exceptional flatness, uniform surface finish, and predictable thermal dissipation. Built to withstand high-frequency mechanical operations and thermal stress, our components integrate seamlessly into automated assembly lines for global electrical equipment manufacturers.
Technical Specifications & Materials of Silver Soldered Electrical Contacts
| Parameter Dimension | Specification Value |
| Material Grade | Ag 99.99%, AgSnO2 (10/12), AgCdO 10 |
| Electrical Conductivity | > 80% to > 98% IACS (Depending on alloy) |
| Shear Strength | > 180 MPa (Interface bonding force) |
| Contact Resistance | < 0.5 mΩ (Initial contact state) |
Precision Brazing and Contact Forming Process
Material Preparation
Silver alloy materials are inspected before production to verify consistency in composition. Selected contact materials are processed into required shapes according to customer drawings.
Brazing Technology
Controlled brazing parameters ensure a reliable connection between the Electrical Contact Sheet material and the base substrate. The brazed interface is inspected to reduce risks of separation during repeated switching cycles.
Precision Stamping
Progressive stamping and precision forming processes maintain consistent Contact Bridge dimensions for automated assembly lines.
Quality Inspection
Production inspection includes dimensional measurement, appearance inspection, material verification, and process monitoring to maintain batch-to-batch consistency of Silver Joint Contacts.
Application Integration of Silver Finish Metal Buttons
Electromagnetic Relays and Contactors: As high-performance Silver Soldered Electrical Contacts, these are used in automotive and industrial power switching relays. They withstand frequent switching without surface degradation, ensure reliable circuit closure in high-vibration equipment, and optimize coil efficiency through low contact resistance.
Molded Case and Miniature Circuit Breakers: As the core arc-extinguishing interface for MCCBs and MCBs, these Composite Welding Contacts withstand harsh fault current interruptions without catastrophic failure. They provide stable and predictable breaking capacity under short-circuit conditions and meet global low-voltage switchgear testing standards.
Smart Home and Electricity Meter Magnetic Latching Relays: Employing Silver Finish Metal Buttons, these relays enable precise remote power disconnection for smart meters. Their low-bounce design prevents contact pitting during low-load switching, maintaining high reliability over thousands of automated switching cycles. Their compact size fits within the space constraints of smart device housings.
Industrial Automation and Power Distribution: Integrated into motor starters, control panels, and power switches, these relays resist corrosive industrial atmospheres with stable material grades, providing reliable performance in continuously operating manufacturing cells and reducing unexpected downtime of critical automation infrastructure.
contact us
Partner directly with an experienced factory manufacturer to secure high-performance Silver Tipped Contacts tailored to your exact engineering specifications. Eliminate unnecessary distributor markups while benefiting from rigorous ISO-certified quality control, rapid 7-15day lead times, and free evaluation samples. Contact our engineering team today to optimize your relay and circuit breaker supply chain with reliable, factory-direct components.
