Products Description
Precision CNC Machining Copper refers to customized metal parts manufactured using CNC technology to perform high-precision cutting, milling, and turning of copper and copper alloy materials. These products are widely used in industrial applications with extremely high requirements for conductivity, thermal conductivity, and dimensional accuracy, such as relay contact systems, electrical connectors, precision electrodes, heat dissipation modules, and high-frequency electronic components.

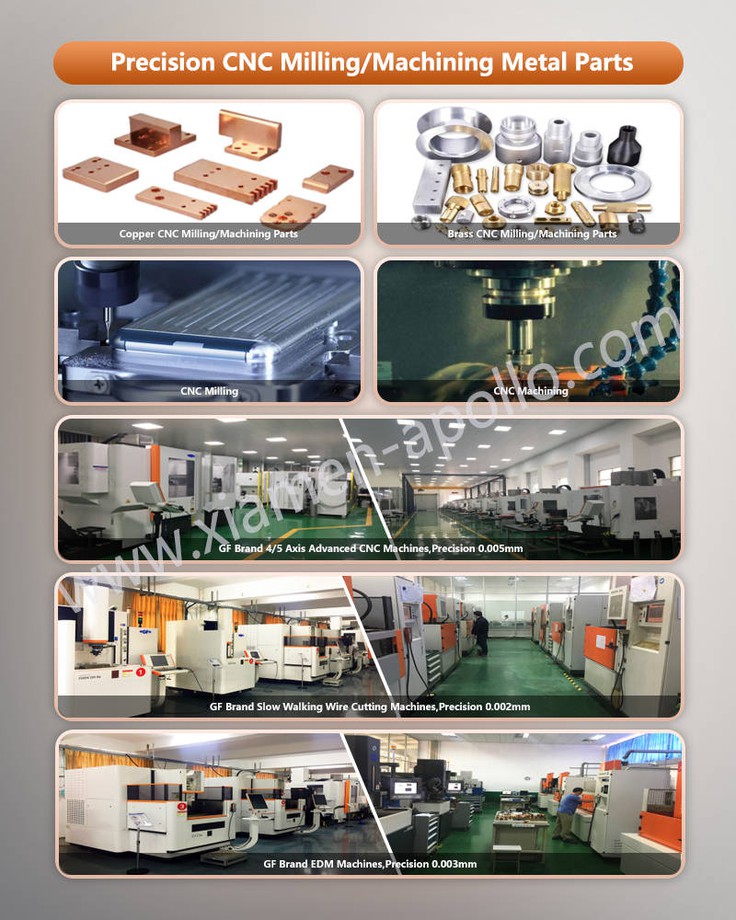

Metal Forming Process Analysis
CNC Milling

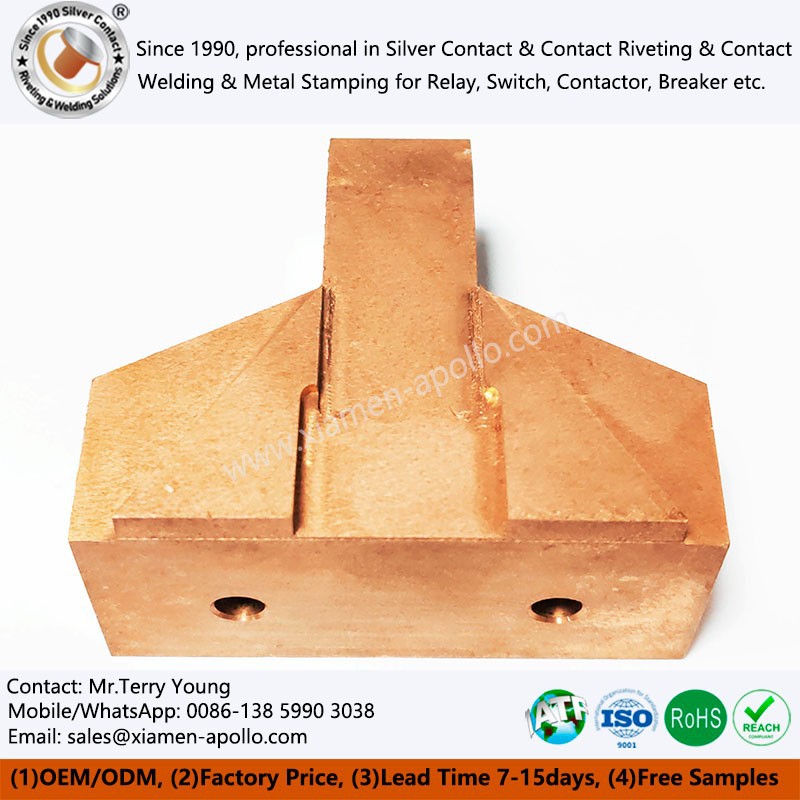

As a core process, it utilizes carbide or diamond-coated tools to perform multi-axis simultaneous cutting of copper blanks. It is suitable for irregularly shaped structural parts, as shown in the image, and is a core manifestation of CNC Machining Capabilities for Custom Copper Parts.
CNC Turning
For axisymmetric copper parts such as relay pins and terminals, high-precision machining of outer diameters, inner holes, and threads is achieved using CNC lathes.
Electrical Discharge Machining
For ultra-hard copper alloys or microstructures, electrical discharge machining is performed using copper electrodes. The Copper Electrode Parts With Solid Ball End Mill is a typical application of this process, capable of machining micro-rounded corners with a radius of less than 0.1mm.
Surface Treatment Processes
Including electroless nickel plating, tin plating, and passivation, these processes enhance the corrosion resistance and solderability of Copper Rolling Mill, meeting RoHS and REACH environmental directive requirements.
Competitive Advantages Comparison
| Precision Consistency | While ordinary processing plants may only focus on the precision of individual pieces, we focus on the consistency of the entire batch of Copper Alloys CNC Machining products, which is crucial for automated assembly. |
| Material Traceability | We provide a complete material traceability chain, ensuring that the origin of each batch of copper is traceable and its performance is stable. |
| Customization Capabilities | No matter how complex the drawings for Copper Electrode Parts with Solid Ball End Mills are, our engineering team can provide optimized machining solutions to reduce your manufacturing costs. |
| After-Sales Service | With a highly praised after-sales system, we will take full responsibility for any quality issues related to our End Mill for Copper. |
Product Details

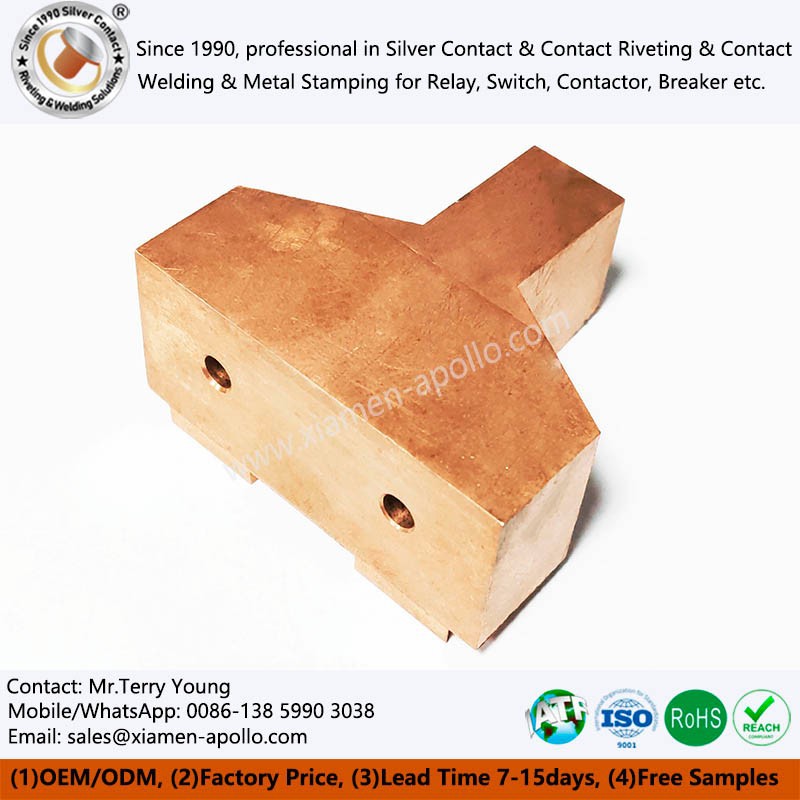

Central Column Structure
The interior of the Copper Ball Mill can be designed as hollow or solid for mounting relay cores or serving as the main conductive path. Its perpendicularity and concentricity directly affect assembly accuracy.
01

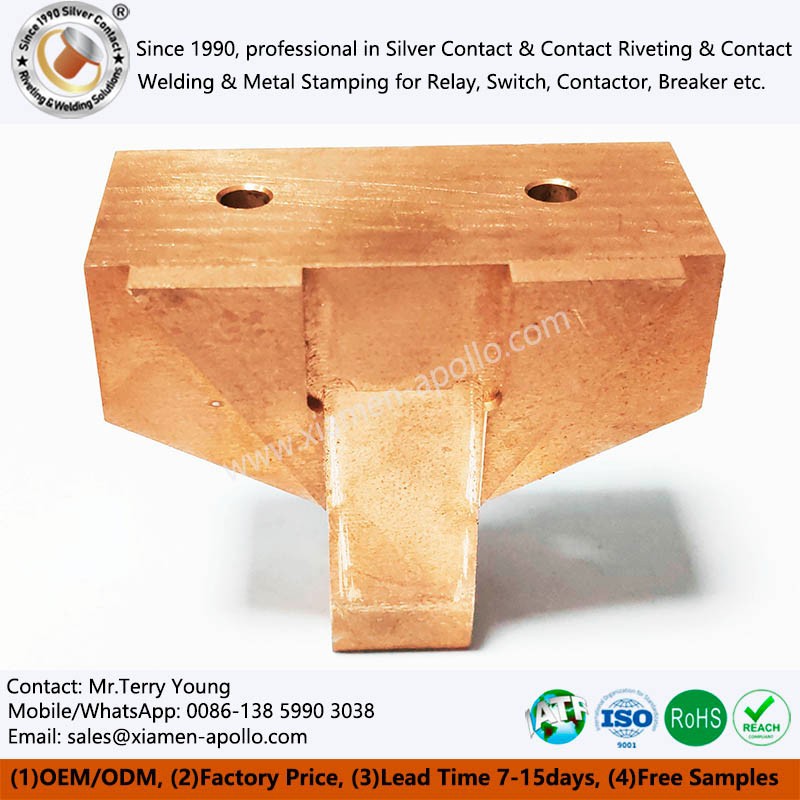

Double-Sided Symmetrical Flanges
Providing multi-point mounting and positioning capabilities, the precision hole system of the Mill Finish Copper is used for bolt connection to the relay base plate, and the symmetrical design ensures balanced force distribution.
02

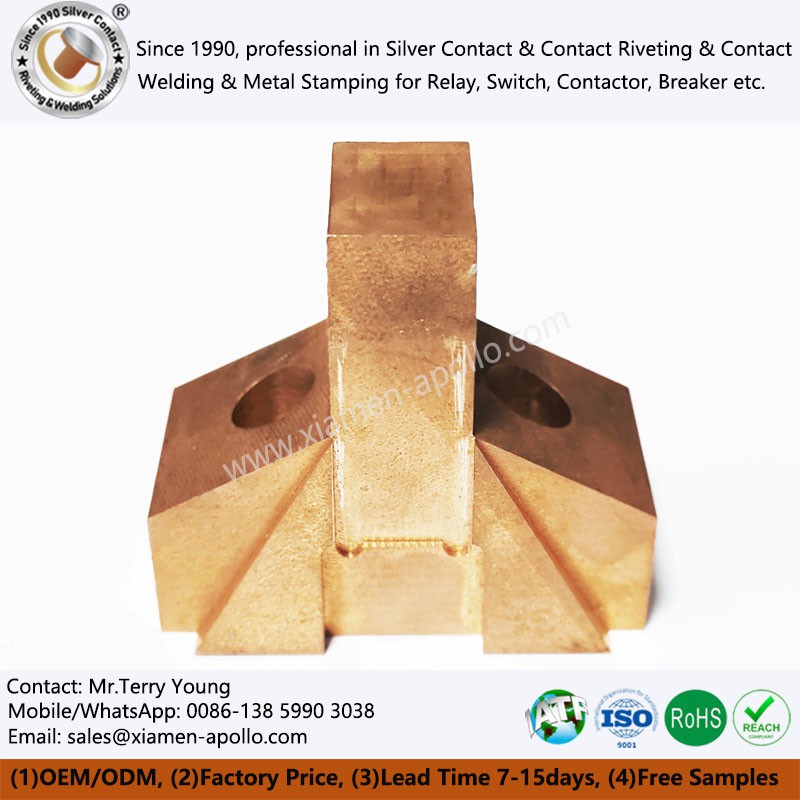

Angled flow guiding design
The angled surface at the transition between the wing plate and the column not only reduces overall weight but also forms a current flow path, optimizing the electric field distribution and reducing localized heat generation.
03

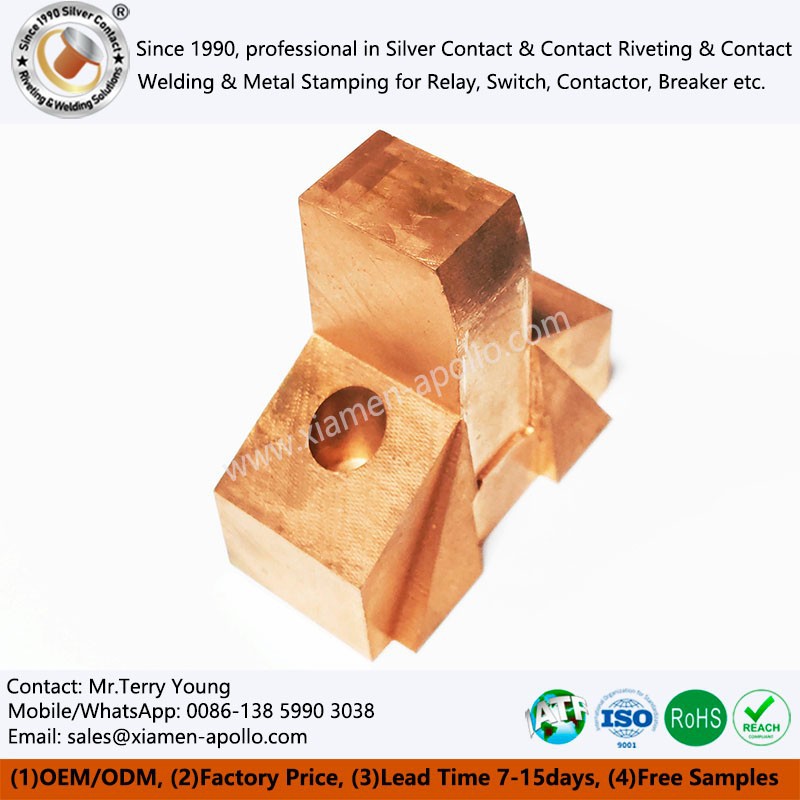

Bottom positioning groove
The grooved structure at the bottom, as shown in the illustration, is used to engage with the relay housing, enabling rapid positioning and foolproof assembly, demonstrating the depth of Precision Machined Copper Parts' functional integration design.
04
contact us
We possess a mature production system, rigorous quality management processes, and stable international supply capabilities, enabling us to provide long-term, reliable metal parts support for the relay, new energy, power electronics, and industrial automation industries. We welcome you to provide Precision CNC Machining Copper drawings, samples, or technical parameters; we will provide you with professional engineering assessments and cost-effective manufacturing solutions.
