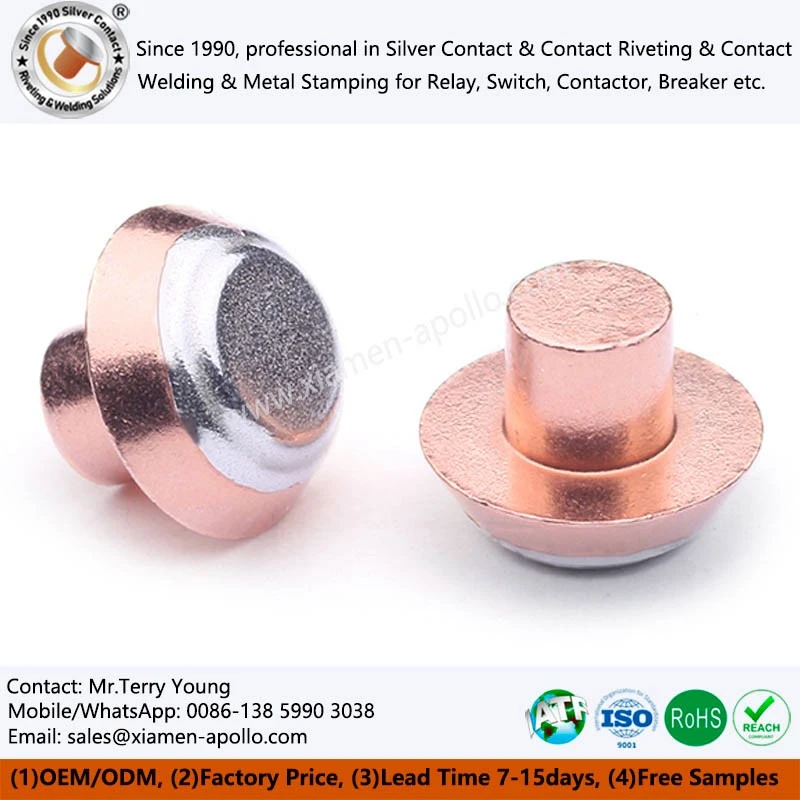

what are the Cap Head Silver Contacts?
These Cap Head Silver Contacts are precision-engineered for latching relay applications, particularly in smart metering and load control. By employing a specialized bimetal design, we concentrate silver density only at the functional contact surface, effectively reducing material costs while maintaining the required arcing resistance. As a direct manufacturer, we control the entire process from base metal sourcing to final cold heading and surface oxidation treatment. Our production lines support high-volume runs with stringent dimensional consistency for automated assembly lines. We specialize in customizing the head profile to meet unique switching force requirements in industrial or residential smart meters.
Technical Specifications & Materials of Cap Silver Contacts for Latching Relay
| Feature | Specification |
| Working Layer Material | AgSnO2 88/12, AgNi 90/10, or AgCdO |
| Electrical Conductivity | >85% IACS (Base) |
| Bonding Strength | >250 MPa (Shear Test) |
| Contact Resistance | <0.5 mΩ |
Application Integration of Electronic Contacts for Smart Meter Relay
Smart Electricity Meter Latching Relays
Cap Silver Contacts for Latching Relay are widely used in magnetic latching relay structures for smart meters, where low standby power and stable switching operation are required.
Industrial Control Relays
The Bimetal Contact for 80A/100A/120A Magnetic Latching Relays supports industrial relay applications requiring repeatable electrical connection and mechanical durability.
Low Voltage Electrical Devices
Applications of Bimetal Contact Rivets for Magnetic Latching Relay include compact switching devices, measurement equipment, and control modules.
Energy Management Systems
The component design supports relay assemblies used in modern energy monitoring and distribution equipment.
Frequently Asked Questions about Electronic Contacts for Smart Meter Relay
How does the cap head design reduce relay component costs?
+
-
The design uses a localized silver deposit (cap) on the functional face only, rather than using solid silver or thick multi-layer configurations. This saves significant precious metal costs while ensuring the Silver Electronic Contact for Energy Meter Latching Relay retains the necessary thickness to handle arc erosion over the relay's life cycle.
Can you match specific Electrical Contacts for Miniature High-Power Latching Relay dimensions for existing latching relays?
+
-
304 stainless steel meets the international requirements of food grade, and 316 stainless steel is not only food grade, but also medical grade. However, the use of this medical-grade product as a production cup will not bring additional benefits to everyone. Why is it called 304 or 316? This is mainly defined according to the material composition. 316 stainless steel is not similar to mineral materials; after use can release some substances to promote human absorption.
Why do Steps Silver Contacts for Bistable Power Latching Relay use a step-shaped silver layer?
+
-
The step-shaped silver layer places precious metal only where current switching occurs. This structure reduces silver usage while maintaining sufficient working contact thickness for relay switching applications requiring stable contact resistance.
Which devices commonly use a Point Contact for DC Electronic Latching Relay?
+
-
Typical applications include smart electricity meter magnetic latching relays, industrial control relays, energy management devices, and low-voltage electrical switching systems.
What information is required for customized Electronic Contacts for Smart Meter Relay production?
+
-
Engineering teams usually provide drawings, material requirements, relay specifications, rated electrical conditions, and annual demand forecasts for design evaluation and production planning.
Contact Us
Ready to optimize your relay performance and costs? Partner with a direct manufacturing source that understands the intricacies of contact metallurgy. Send your technical drawings or specifications of Cap Head Silver Contacts to our engineering team today for a rapid prototyping assessment and a competitive bulk production quotation. Let's secure your supply chain with precision-engineered components.
