What is the Electric Meters Manganin Shunt?
Electric Meters Manganin Shunt is a manganese‑copper resistance part for meter current‑measurement circuits. It converts current passing through its resistive element into measurable voltage signals for meter sensing circuits. It fits electricity meters, prepayment meters, metering assemblies, terminal blocks, and current‑measurement units. Its performance depends on resistance value, material geometry, current path, and voltage‑sensing points from electrical design.
Quality Manganin Shunt supports custom geometry per customer drawings or samples. Designs can adjust overall profiles, terminal layouts, connection sizes and mounting features to match meter structures. Before production, buyers need to specify resistance value, tolerance, material grade, dimensions, terminal shape, operating temperature, and electrical test requirements. This prevents generic material parameters from substituting actual application‑specific technical needs.
Product Advantages of Manganese Copper Stamping
Minimal Thermal Drift
Manganese Copper Stamping maintains stable ohmic values across wide meter operating temperature fluctuations.
Low Interfacial Resistance
Spot Welding for Manganin Shunt Resistor uses resistance spot‑welding to ensure stable electrical contact without filler metal interference.
Mechanical Rigidity
Manganese Copper Shunts feature robust joint formation that withstands installation torque and thermal cycling inside sealed meter enclosures.
Batch Uniformity
Automated stamping and resistance calibration guarantee consistent electrical performance across high‑volume production batches.
Shape Customization Capabilities and Adaptability of Manganese Copper Stamping
Outer Contour Modification
For Energy Meter Shunts, adjust profile outlines and overall length to fit compact single‑phase or three‑phase meter terminal blocks.

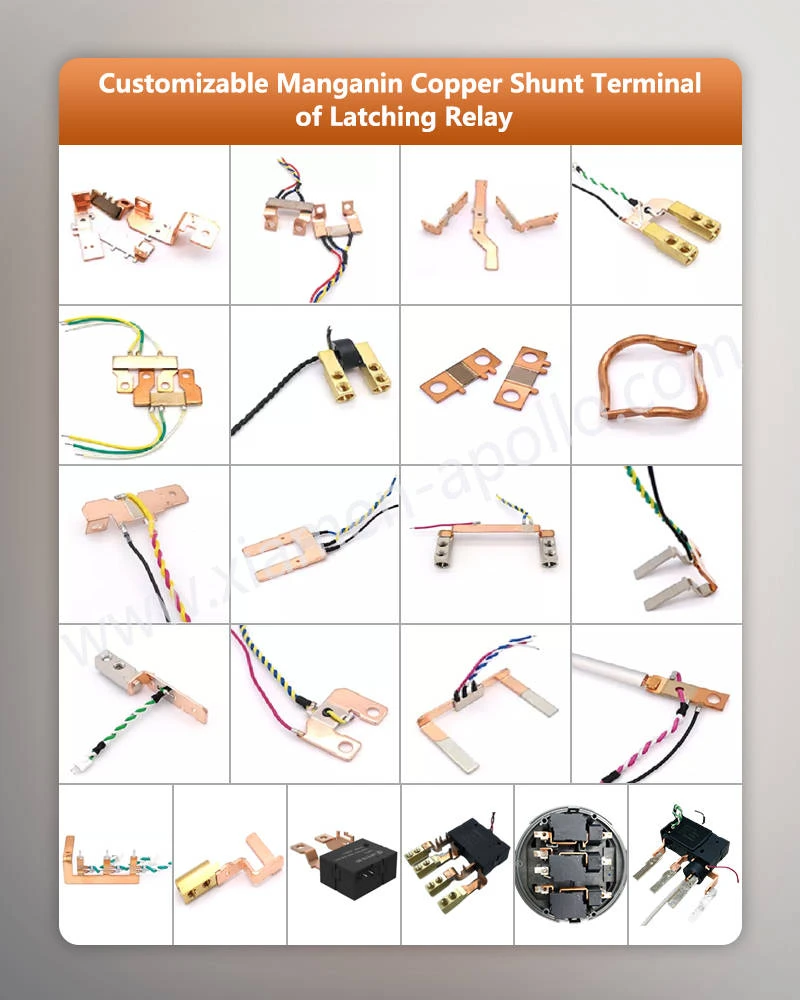

Terminal Layout Configuration
Modify terminal widths, mounting hole diameters, and slot positions of the Shunt Terminal for Magnetic Latching Relay 100A to match existing meter busbar interfaces.
Spot‑Welding Specifics
For Manganese Copper Shunts, tailor individual weld spot counts, diameters, and spacing specifically for spot‑welded copper‑manganin configurations, ensuring optimal mechanical retention without excessive thermal distortion.

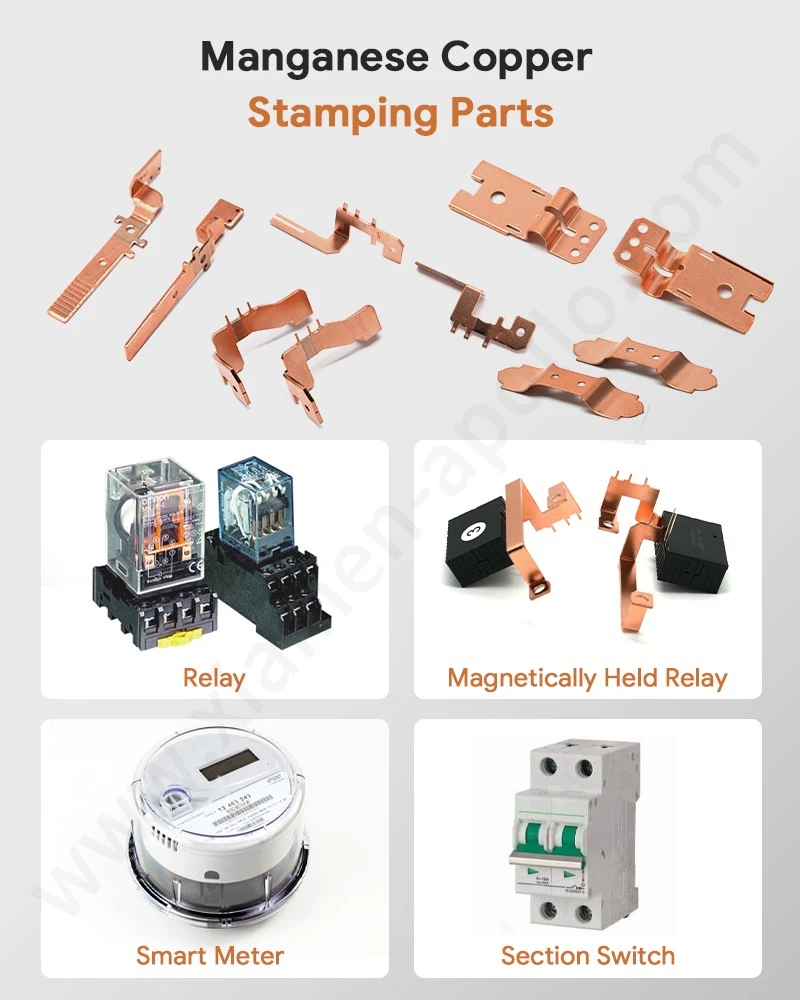

Application Scope of Manganese Copper Shunts
Single‑Phase Smart Meters
Manganin Shunt for Single Phase is utilized for residential power consumption tracking and tamper detection.
Polyphase Electricity Meters
Three Phase Magnetic Latching Relay assemblies are integrated into commercial three‑phase metering units requiring multi‑channel current sensing.
Prepayment Energy Meters
Prepayment Meter Shunts are installed alongside latching relays for real‑time load monitoring and control.
DIN‑Rail Sub‑Meters
Deployed in compact modular enclosures for sub‑circuit energy monitoring.
Frequently Asked Questions about Energy Meter Shunts
What is the main function of a Manganese Copper Shunt in a smart meter?
+
-
It serves as a precision sensing resistor that converts high primary line currents into a proportional millivolt voltage drop, allowing the meter's measurement IC to calculate energy consumption accurately.
Why is Copper Manganese alloy used instead of standard copper for the resistance section?
+
-
Manganin exhibits an extremely low temperature coefficient of resistance and minimal thermal electromotive force against copper, ensuring stable resistance readings across wide operating temperature ranges in smart meters.
How does resistance spot‑welding affect the durability of the Energy Meter Shunts?
+
-
Resistance spot‑welding creates a robust localized metallurgical fusion between copper terminals and the manganin strip, providing high mechanical shear strength and long‑term electrical stability under continuous load.
Can these manganin shunts be customized for non‑standard smart meter enclosure layouts?
+
-
Yes, our factory customizes outer profiles, overall dimensions, terminal hole positions, and resistance values based on customer‑provided 2D/3D engineering drawings.
What testing conditions apply to the specified joint resistance and shear strength metrics?
+
-
Performance metrics such as joint resistance below 50 μΩ and shear strength exceeding 50N per weld point are verified under controlled laboratory conditions. Real‑world results vary by assembly stress and operating environment.
Contact us
If you have any interest or questions about the Electric Meters Manganin Shunt, please feel free to contact us. We have a professional team with members possessing profound industry knowledge and rich product experience. We can provide you with detailed and accurate answers regarding product technical specifications, performance characteristics, and adaptability in practical applications.
