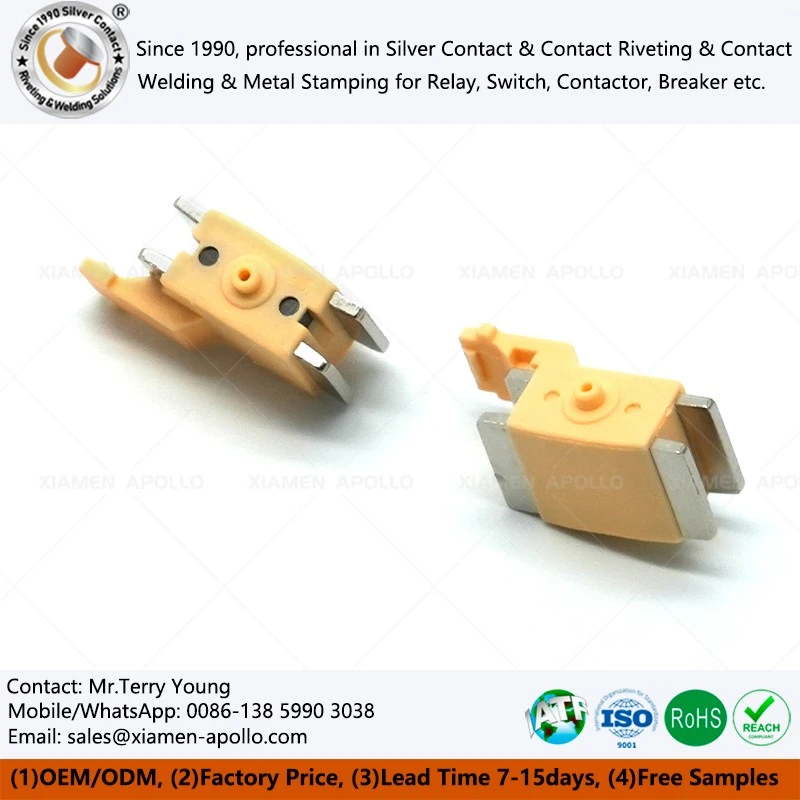

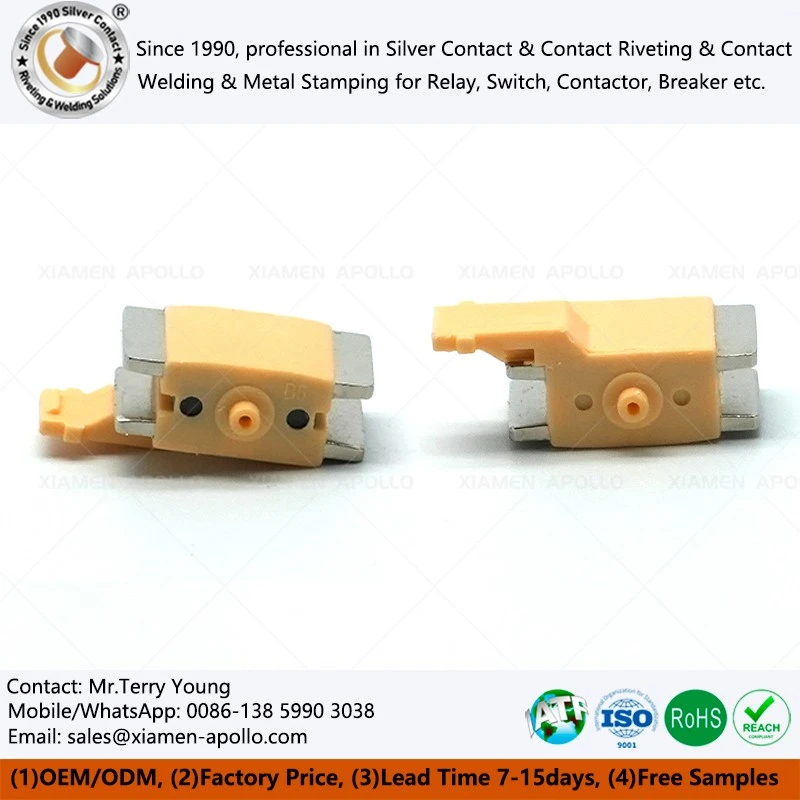

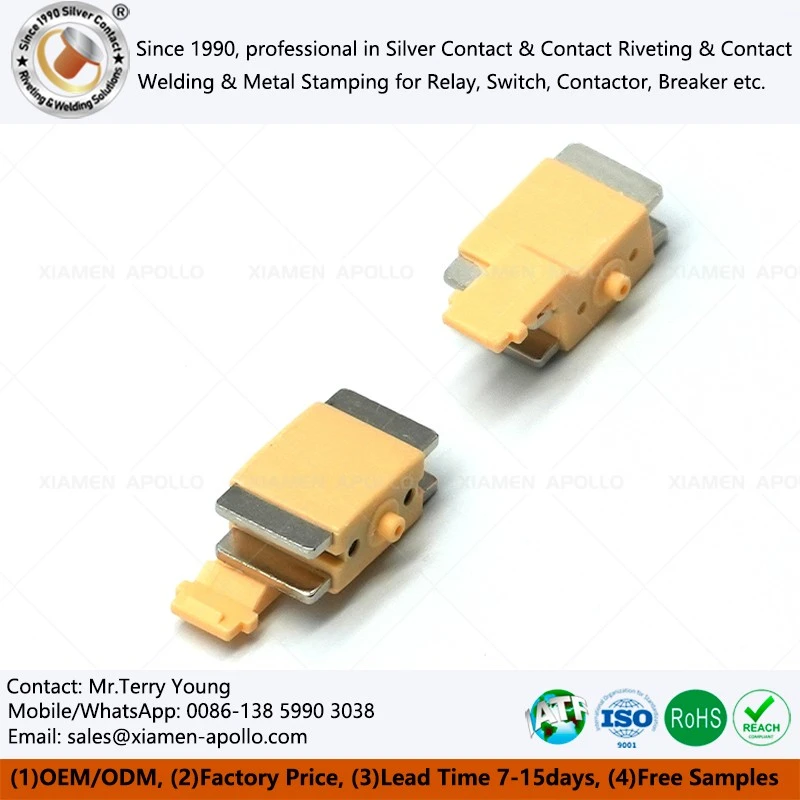

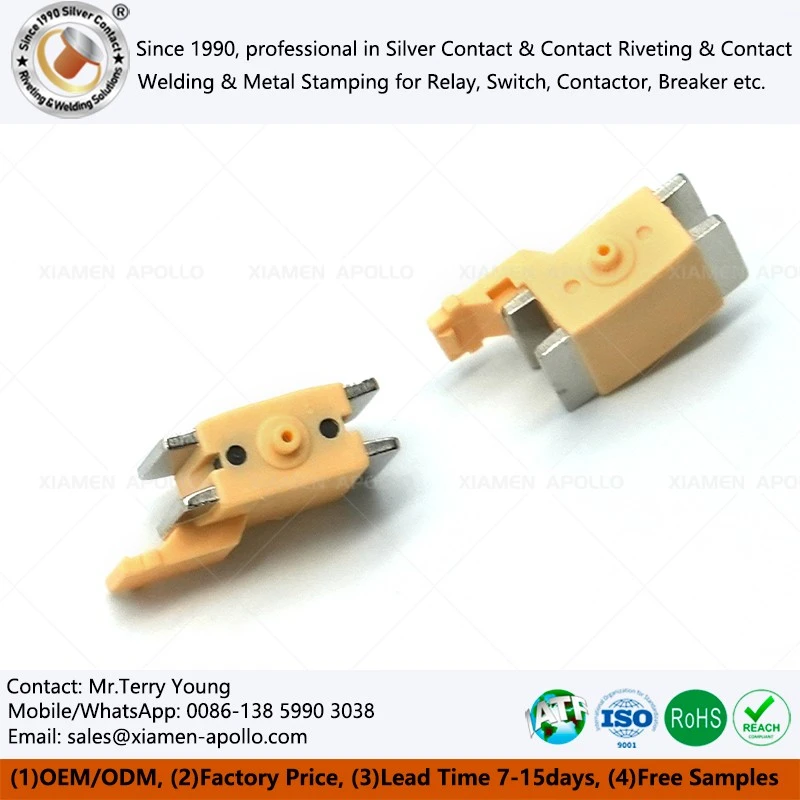

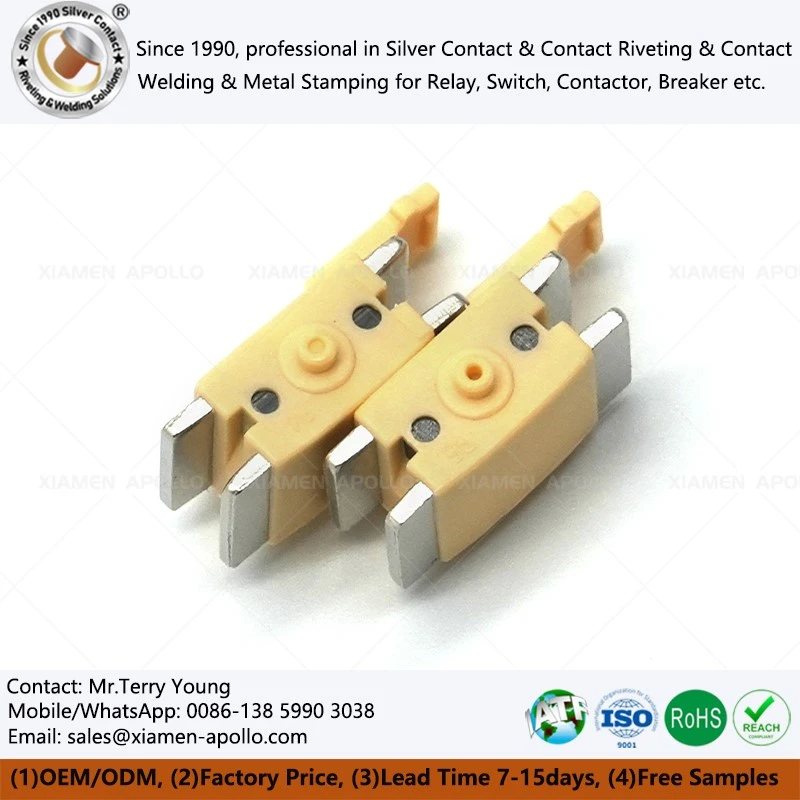

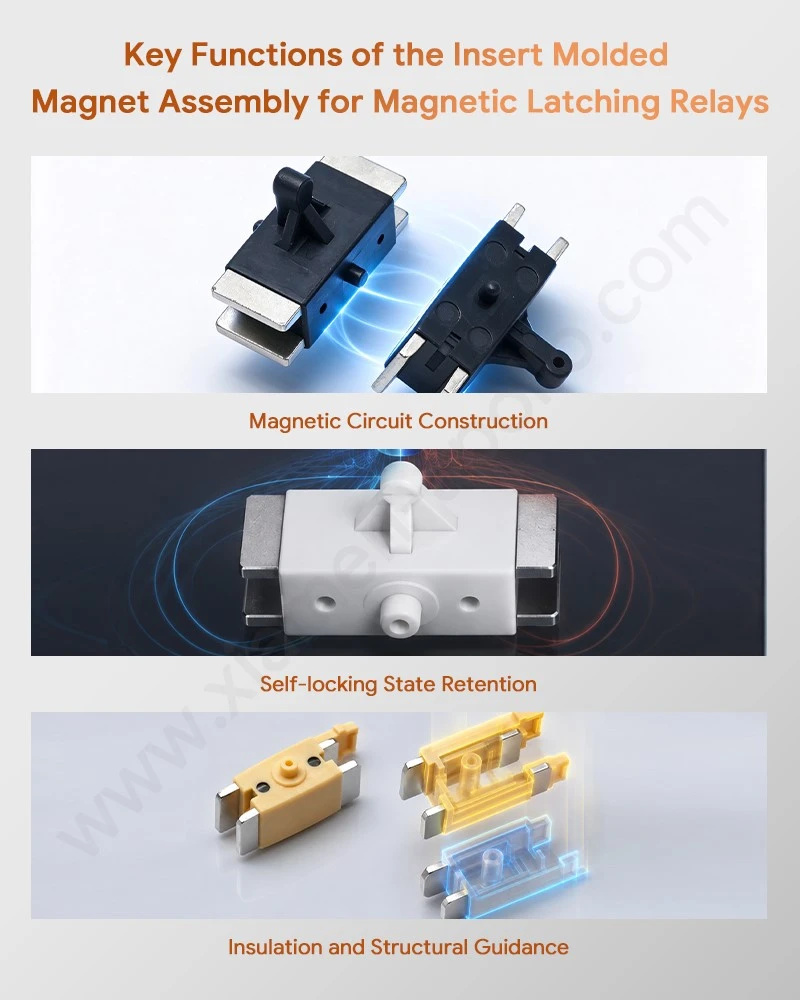

What is the Insert Molded Magnet Assembly for Magnetic Latching Relay?
Engineered for advanced smart meter latching relays and industrial automation switching systems, this Insert Molded Magnet Assembly for Magnetic Latching Relay combines high‑permeability DT4E armature sheets with permanent ferrite magnets within a robust engineering plastic matrix. Utilizing high‑pressure insert molding technology, the subcomponent integrates disparate magnetic and structural elements into a single cohesive unit, eliminating mechanical play and ensuring consistent bistable performance. Engineered for direct integration into 16A to 100A latching relay architectures, our factory delivers mass production with strict dimensional stability, supporting demanding global OEM supply chains.

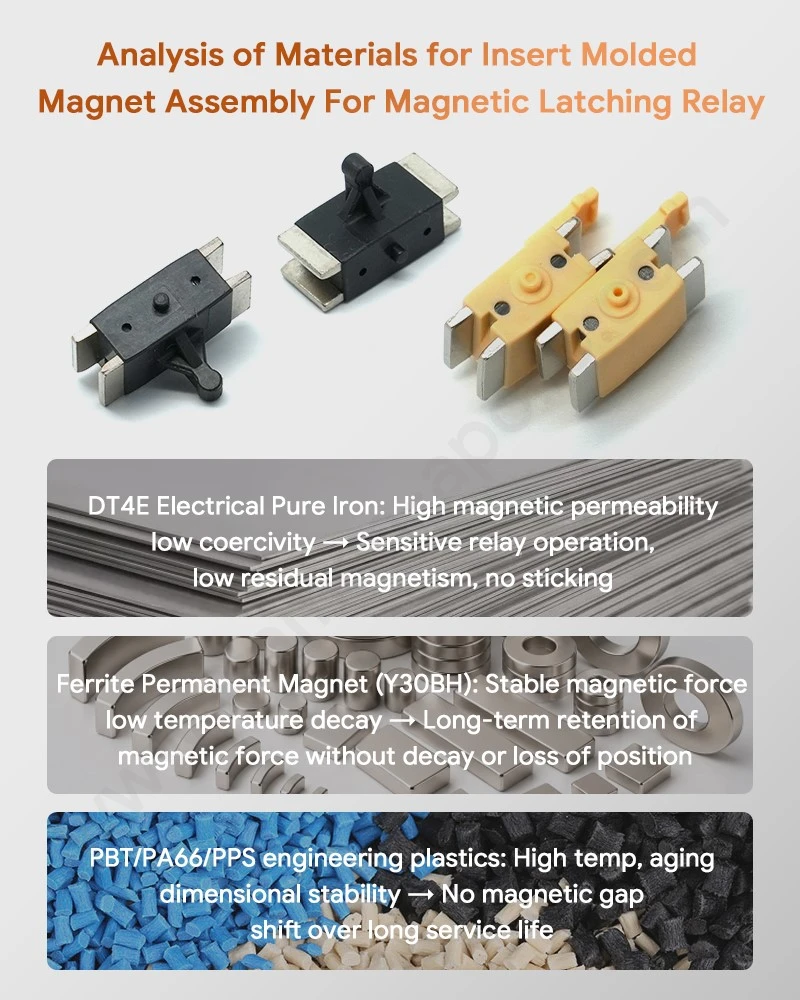

Material Selection & Magnetic Core Properties of Insert Molded Magnet Relay
DT4E Soft Iron Armature
DT4E pure iron components feature low coercivity and high saturation magnetic induction, ensuring rapid magnetization and demagnetization cycles during relay operation without residual magnetic drag.
Permanent Ferrite Magnet Integration
High‑grade ferrite magnets supply stable static bias fields, allowing the latching relay to maintain contact position indefinitely upon coil power removal while resisting thermal demagnetization.
Engineering Plastic Encapsulation Matrix
The overmolding polymer isolates internal metallic pathways, prevents environmental oxidation, and provides precise mechanical location tabs to streamline automated downstream assembly.
Impurity Control and Alloy Purity
Strict metallurgical refining keeps carbon, nitrogen, and oxygen trace elements to a minimum within the iron matrix, directly boosting magnetic permeability and operational efficiency.

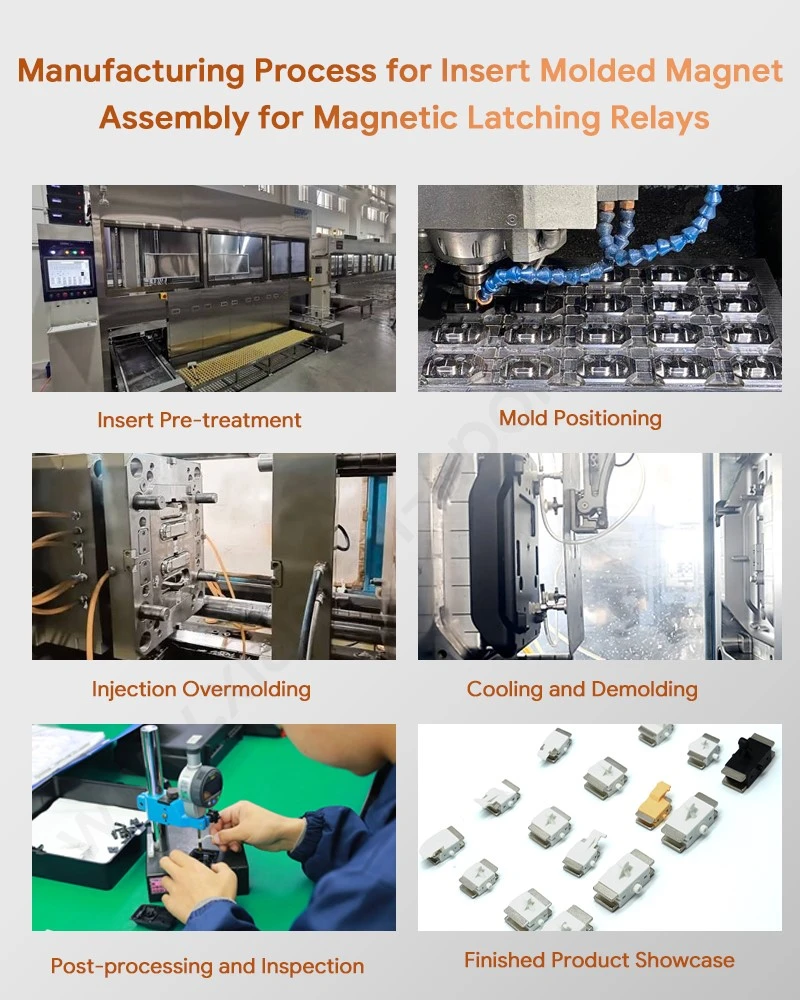

Manufacturing Process & Overmolding Precision of Latching Relay Magnet Assembly
Progressive Stamping of Armature Cores
DT4E raw stock undergoes multi‑stage progressive die stamping to achieve exact geometric profiles, smooth edges, and burr‑free surfaces before mold insertion.
Automated Insert Placement
Robotic pick‑and‑place systems position the pre‑formed iron and ferrite components into injection molds with positional accuracy under 0.015mm, preventing structural misalignment.
High‑Pressure Injection Overmolding
Engineering thermoplastics are injected at controlled temperatures and pressures to completely encapsulate the magnetic core without shifting internal components or inducing micro‑voids.
Post‑Molding Stress Relief
Assemblies undergo thermal stabilization treatment to eliminate residual internal stresses from the injection process, preventing warping and maintaining long‑term dimensional integrity.
Frequently Asked Questions about Magnetic Latching Relay Injection Molded Part
What is the primary function of the DT4E armature sheet in this Bistable Relay Magnet Plastic Insert Component?
+
-
The DT4E armature sheet acts as a high‑permeability magnetic path conductor. It magnetizes rapidly when the coil is energized and utilizes the ferrite permanent magnet's flux to lock the armature position after power is removed.
How does insert molding prevent magnetic air gaps between components?
+
-
High‑pressure injection forces molten polymer tightly around the pre‑positioned iron and ferrite pieces, immobilizing them rigidly against one another to eliminate micro‑gaps and stabilize magnetic reluctance.
What engineering plastics are suitable for overmolding these magnetic cores?
+
-
Polymers such as high‑temperature resistant PBT, PA66 with glass fiber reinforcement, or PPS are typically selected to withstand soldering temperatures and prevent shrinkage‑induced magnetic shifting.
How does this assembly handle elevated operating temperatures in smart meters?
+
-
Selected engineering thermoplastics and stable ferrite materials prevent thermal degradation and demagnetization up to 125 degrees Celsius, matching strict utility meter standards.
What quality certifications apply to this Latching Relay Magnet Injection Molded Part?
+
-
Production adheres strictly to IATF 16949 quality management standards, with complete material analysis reports, RoHS compliance declarations, and dimensional inspection sheets provided.
contact us
Accelerate your smart relay development cycles with factory‑direct Insert Molded Magnet Assembly for Magnetic Latching Relay engineered to exact magnetic and dimensional specifications. Contact our engineering team today to review your CAD drawings, request prototype samples, or discuss custom tooling options for your upcoming production run.
