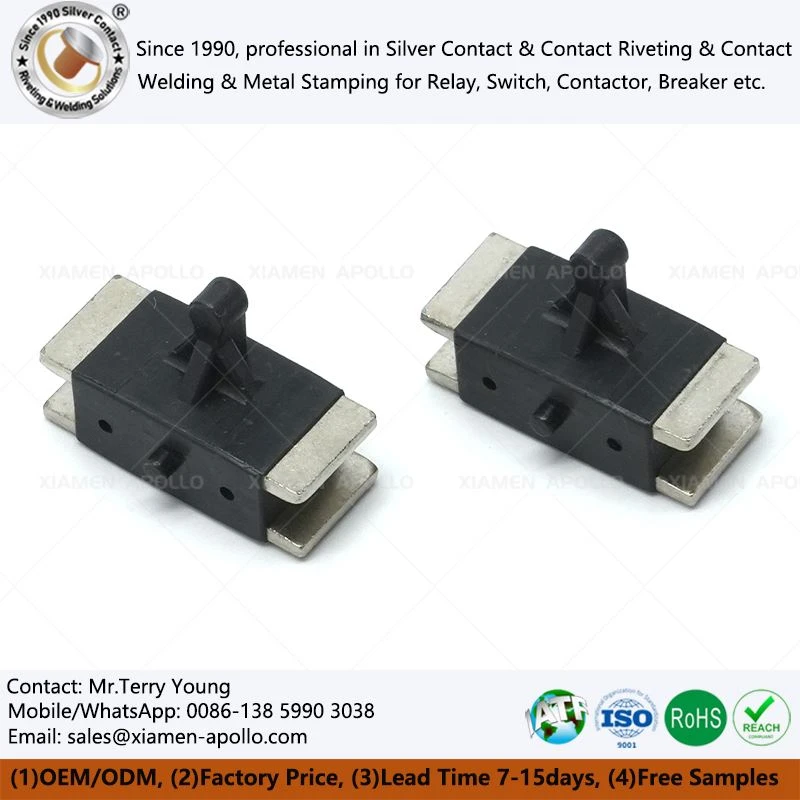

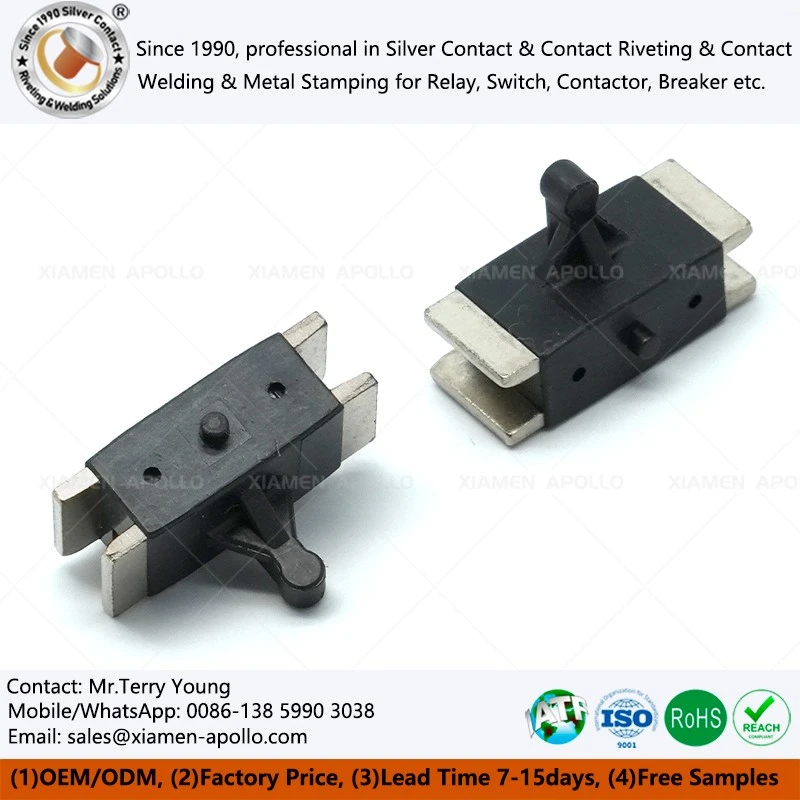

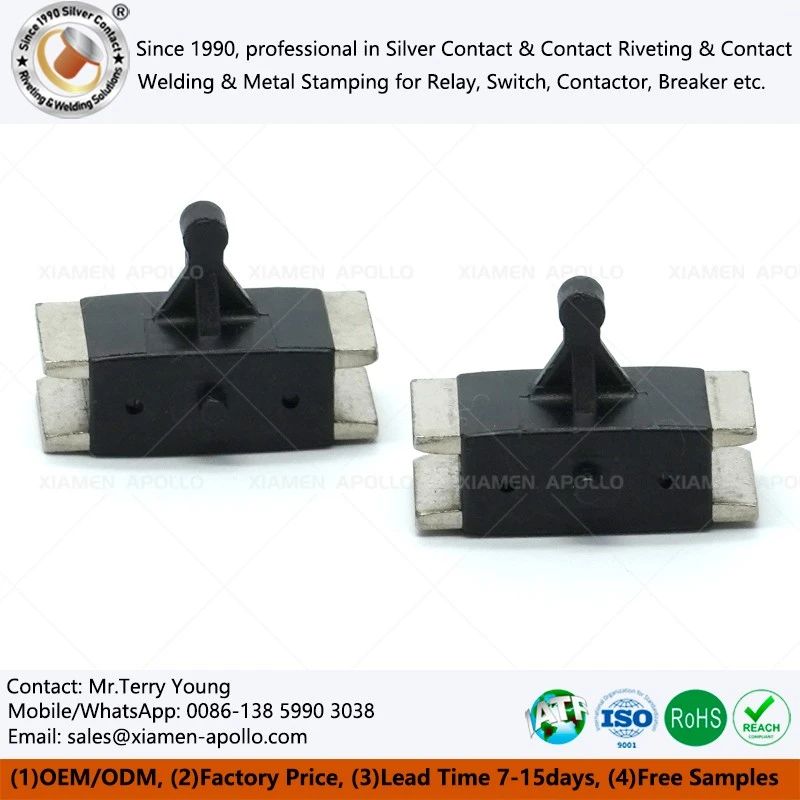

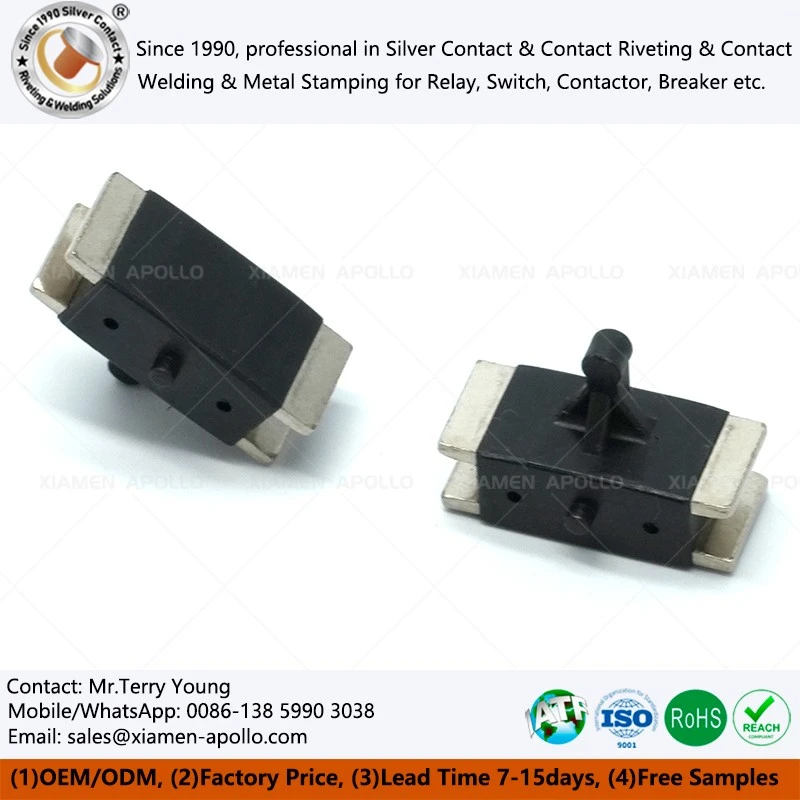

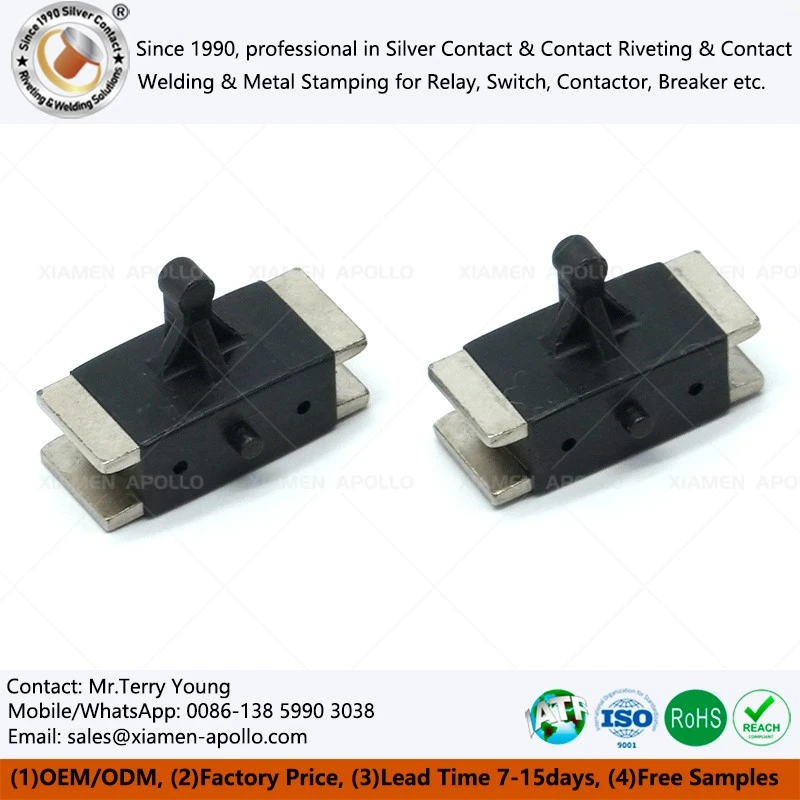

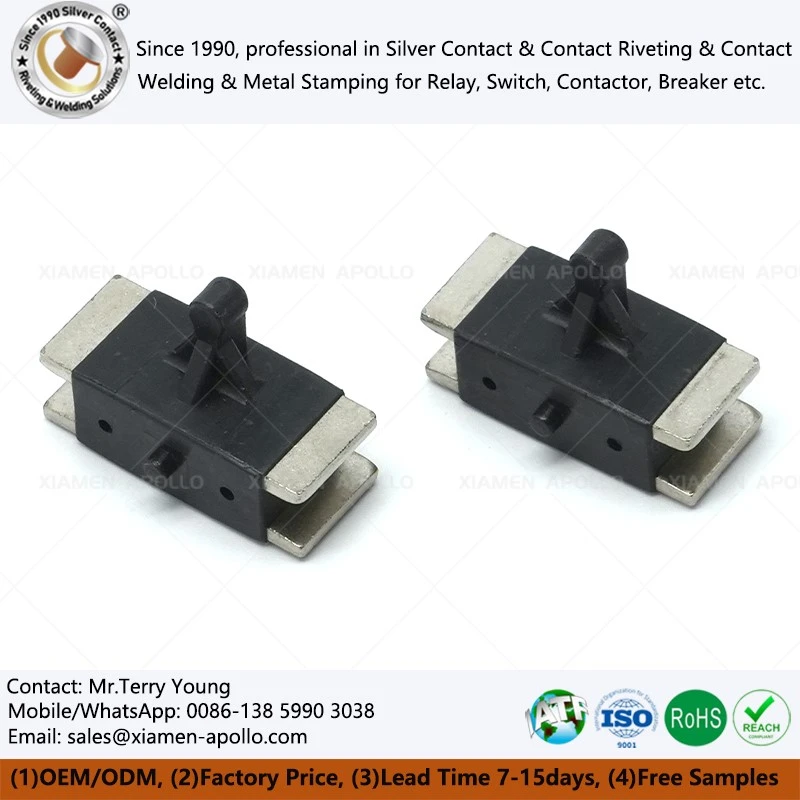

What is the Bistable Relay Overmolded Magnet Plastic Part?
Bistable Relay Overmolded Magnet Plastic Part is a magnetic subassembly produced by combining a DT4E electrical pure iron armature, a ferrite permanent magnet, and an engineering-plastic molded body through insert molding. The assembly establishes a fixed magnetic relationship between the permanent magnet and armature, allowing a magnetic latching relay to retain its contact state after the drive coil is de-energized. Production can be based on customer drawings, samples, and 3D data for smart electricity meters, smart-home controls, photovoltaic and energy-storage distribution modules, and industrial power terminals.

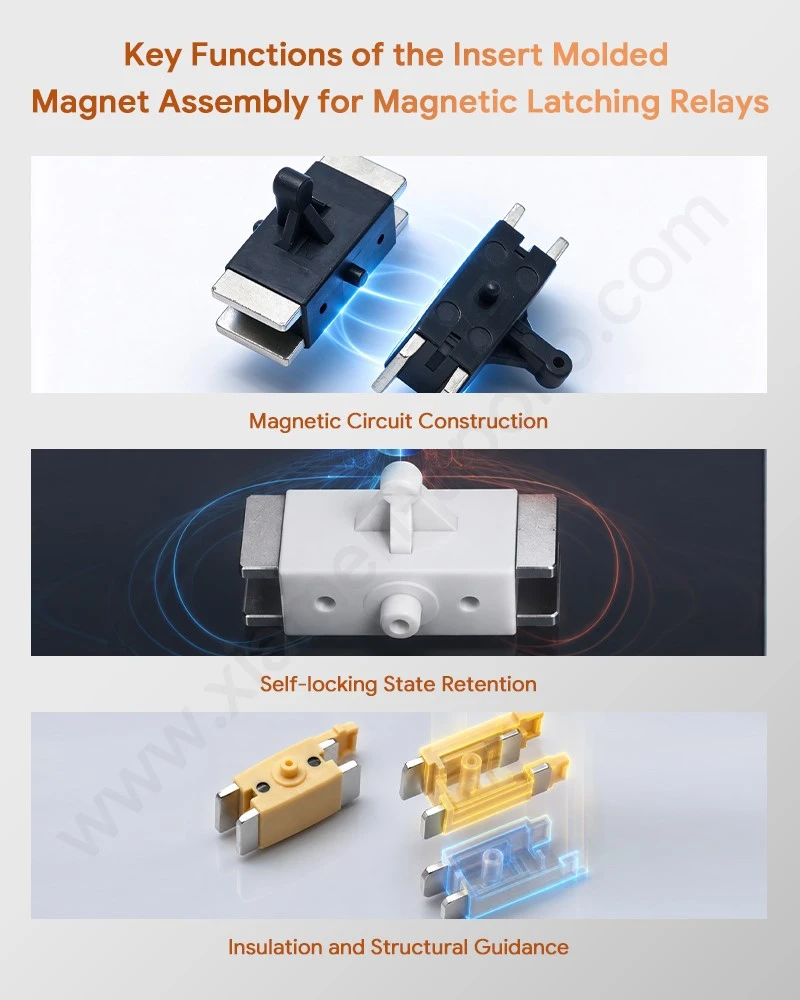

Magnetic Circuit and Bistable Operation of Bistable Relay Magnet Component For Energy Storage
Coil Energization
A drive pulse applied to the relay coil generates a magnetic field that changes the magnetic force acting on the DT4E armature. The resulting armature movement depends on the relationship between coil force, permanent magnet force, magnetic gap, and the mechanical force of the relay mechanism.
Permanent Magnetic Bias
After the coil is de-energized, the ferrite magnet continues to provide magnetic flux. The DT4E armature carries this magnetic flux through the designed magnetic circuit, maintaining the force required for the selected stable position.
Reverse-Pulse Switching
A reverse drive pulse changes the magnetic field around the DT4E armature. When the new magnetic force exceeds the existing holding condition and mechanical resistance, the armature moves toward the opposite stable position.

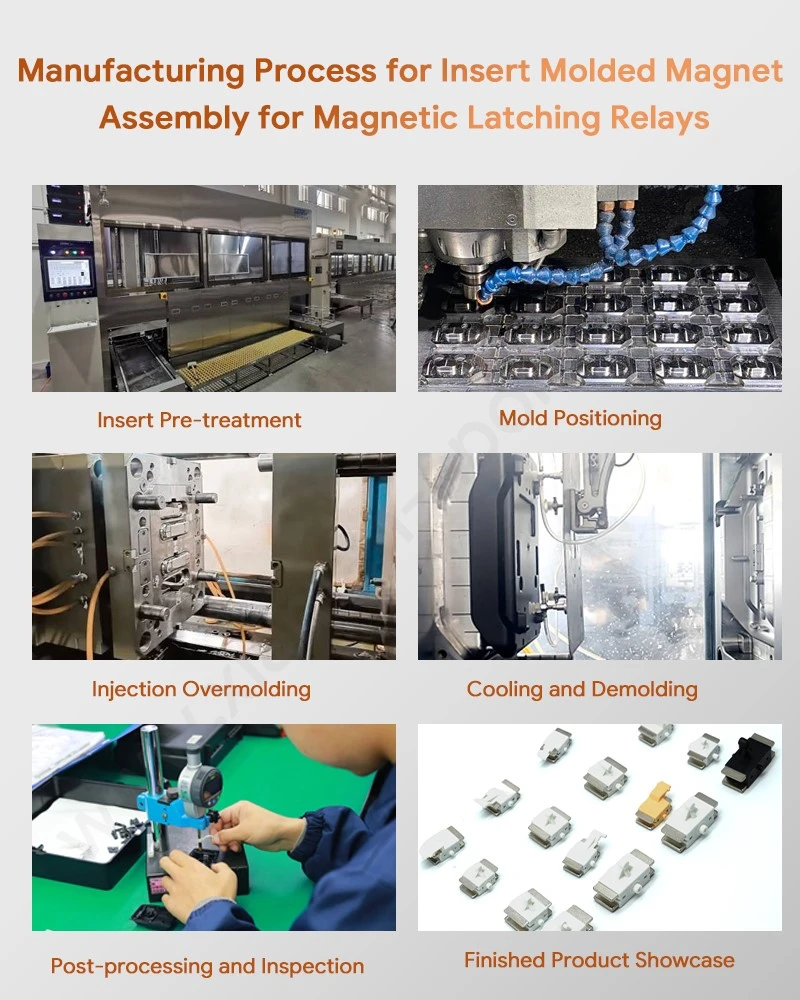

Insert Molding Process & Precision Control of Relay Moving Magnet Assembly
DT4E Armature Loading
The DT4E armature is placed into the mold according to the approved component drawing. Locating features are used to establish the required relationship between the armature and molded body.
Ferrite Magnet Loading
The ferrite magnet is positioned according to its specified orientation and location. Because ferrite is brittle, the loading method should avoid concentrated impact and uncontrolled mechanical force.
Plastic Injection
Engineering plastic is injected around the pre-positioned magnetic inserts. Injection pressure, melt temperature, filling behavior, and cooling conditions can affect insert movement and final molded dimensions.
Post-Molding Inspection
Finished components can be inspected for:
Overall dimensions
Insert position
Magnet orientation
Molded-body condition
Assembly interfaces
Surface defects
Magnetic function where specified
Application Integration of Magnet Insert Molded Part For Latching Relay
Smart Energy Meter Latching Core
Integrated directly into internal load‑disconnect switches of smart electricity meters, holding stable open/closed states with zero continuous coil power consumption.
Smart Home & Low Voltage Circuit Control
Deployed in automated residential circuit breakers and lighting control modules requiring reliable bistable switching and compact physical footprints.
Photovoltaic & Energy Storage DC Disconnects
Engineered to withstand DC arc suppression requirements and continuous thermal stress within solar inverter distribution sub‑assemblies.
contact us
For a new Insert Molded Magnet Assembly for Magnetic Latching Relay project, send the armature drawing, ferrite specification, magnetization direction, plastic grade, critical tolerances, and annual demand. The production team can review tooling, insert positioning, ferrite protection, molding control, and inspection requirements before sample approval and volume release.
