Products Description

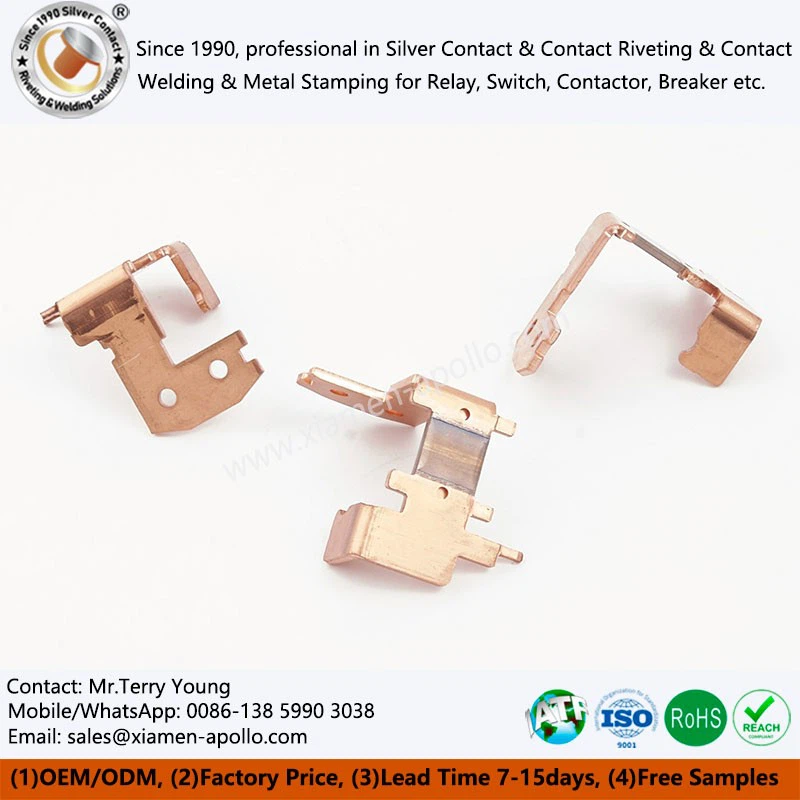

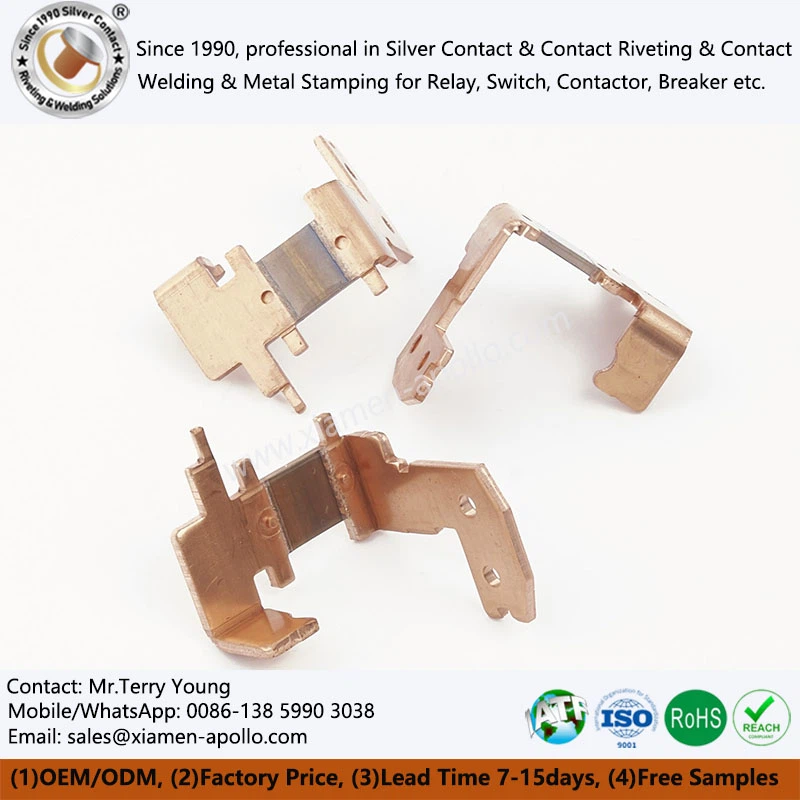

The Magnetic Shunt Terminal Customized is a precision-engineered component designed for high-accuracy current measurement and distribution in electrical and electronic systems. This terminal integrates advanced shunt technology, leveraging materials like manganin copper alloys to provide stable and precise resistance values. As a critical interface between power conductors and measurement systems, it is widely applied in DC ammeters, battery management systems (BMS), power conversion devices, energy meters, and industrial automation systems.
With extensive customization options and integration of high-quality materials such as Electric Current Measure Manganin Shunt elements, this product provides both functional and cost-efficient solutions across a range of industrial and commercial applications.
Advantages of Adding Manganin Copper Elements
High Precision and Stability
Manganin, a copper-manganese-nickel alloy, is known for its excellent electrical resistivity and low temperature coefficient of resistance. This ensures that the shunt resistor provides consistent and accurate current measurement over a wide range of temperatures and operating conditions. The addition of copper elements further enhances the conductivity and mechanical strength of the Terminal Block Manganin Shunt, making it suitable for high-current applications.
Durability and Reliability
The combination of manganin and copper elements results in a shunt resistor that is highly durable and resistant to wear and tear. This makes the Cable Wire Shunt Resistor ideal for use in harsh environments where other materials may degrade or fail.
Low Thermal EMF
Manganin copper elements exhibit low thermal electromotive force (EMF), which minimizes errors in current measurement caused by temperature variations. This is particularly important in applications where precise temperature control is required for Prepayment Meter Shunts.
Shunt Application Selection Advantages
Integrated Design
The terminal merges current measurement and connection points, reducing system complexity, saving space, and simplifying assembly for the Manganin Shunt Resistor.
Cost-Efficiency
Compared to external shunt resistors or sensors, integrated manganin shunt terminals reduce material, labor, and layout costs.
Custom Geometry
Designs can be tailored to meet unique busbar or PCB layouts, allowing compact integration into confined spaces.
Versatility
From low-voltage control systems to high-current industrial equipment, these Primary Wire Manganin Shunts deliver accuracy without bulky sensors or transducers.
Product Production Technology and Workshop
| Advanced Manufacturing Techniques | The production of Magnetic Shunt Terminal Customized involves the use of advanced manufacturing techniques, including CNC milling, wire cutting, and precision machining. These techniques ensure that the shunt terminals are manufactured with high precision and consistency, meeting the stringent requirements of modern electrical systems. |
| Quality Control | Rigorous quality control measures are implemented throughout the production process to ensure that the products meet the highest standards of quality and reliability. This includes inspections of raw materials, in-process inspections, and final Electric Current Measure Manganin Shunt testing. |
| Skilled Workforce | The production workshop is staffed with skilled technicians who have extensive experience in manufacturing magnetic shunt terminals. They are trained to operate the equipment accurately and follow strict production procedures to ensure the quality and consistency of the Copper Alloy Shunts. |
