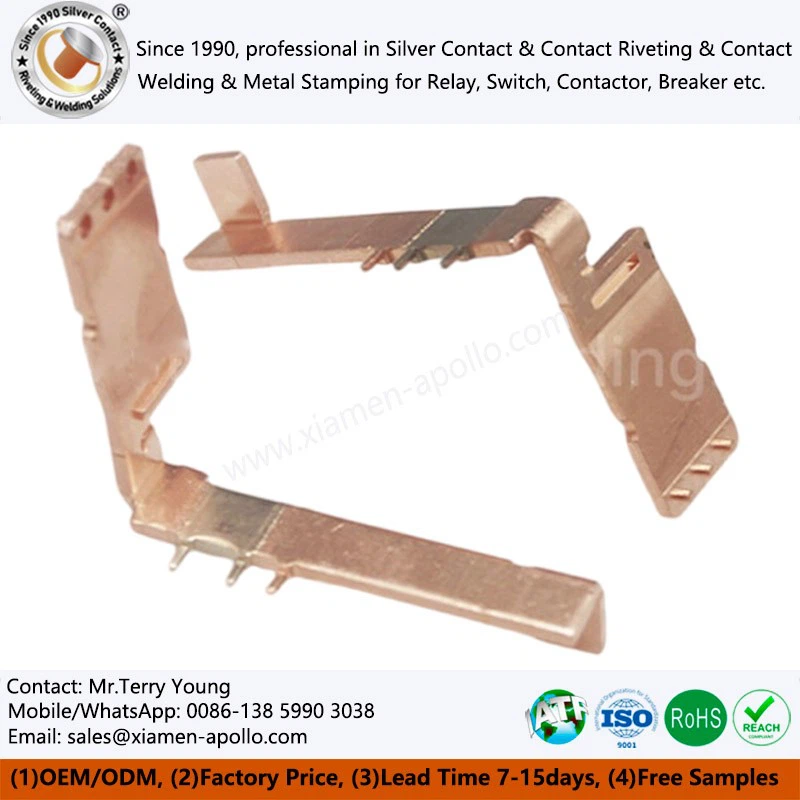

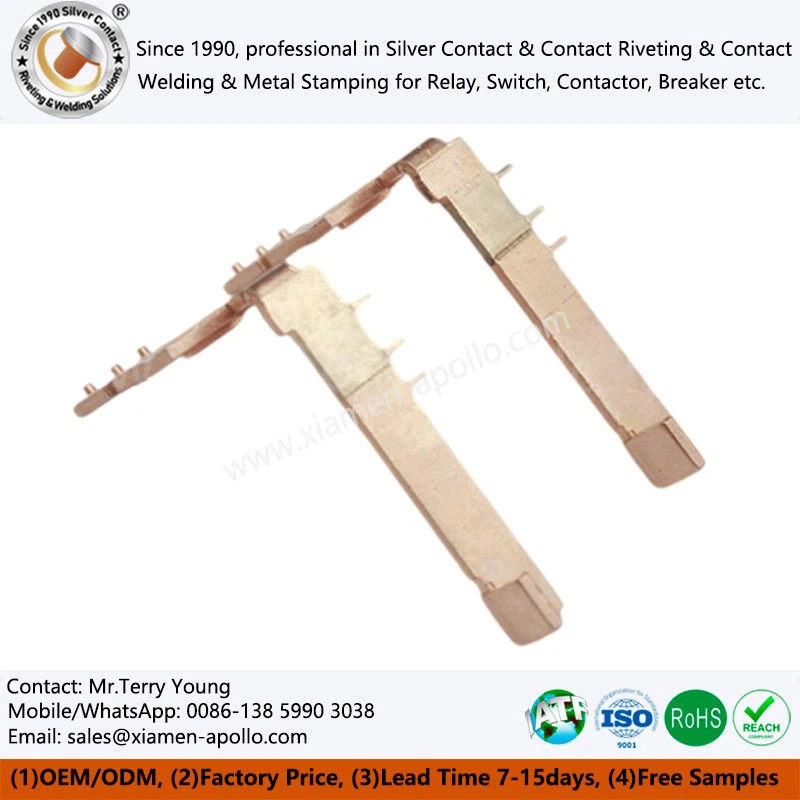

Product Profile of Manganese Copper Shunts
Manganese Copper Shunts are precision-engineered components designed for accurate current measurement and control in electrical circuits. Composed of a specific alloy blend of copper and manganese, these shunts are integral to systems requiring reliable and stable electrical readings. The use of Copper Manganin Shunt technology ensures low resistance and high accuracy, making these components essential in applications such as power meters, energy monitoring devices, and other electronic measurement equipment.
Product Advantages
Product Advantages
High Precision and Stability
These shunts provide highly accurate measurements of electrical current with minimal resistance variations, ensuring precise data for control and monitoring systems.
Low Temperature Coefficient
The alloy composition of copper and manganese minimizes the effect of temperature changes on resistance, enhancing the shunt's stability and reliability.
Durable and Long-lasting
Due to their robust material properties, these shunts are resistant to wear and corrosion, which significantly extends their operational life.
Efficient Production
The production process ensures that each Shunt Assembly is manufactured to meet stringent quality standards, leading to consistent product performance.
Main Functional Characteristics
Main Functions
Customizable Specifications
The design of these shunts can be adjusted to meet specific needs in applications like Electrical Meter Shunt and Shunt Assembly components.
Mechanical Strength
Their structural integrity ensures that the shunts can withstand mechanical stress, making them suitable for both stationary and dynamic electrical systems.
Thermal Stability
The combination of copper and manganese provides excellent thermal stability, ensuring consistent performance even in environments with fluctuating temperatures.
Production Process
| Material Selection | High-purity copper and manganese are selected as the primary materials to create the alloy, ensuring optimal electrical and thermal properties. |
| Alloy Formulation | The copper and manganese are melted together in precise ratios to form the alloy, which is then cast into a Static Copper Plate with Manganese structures. |
| Precision Stamping and Machining | The alloy plates are processed using advanced stamping techniques to shape them into the desired shunt form. This step ensures dimensional accuracy and consistent quality across each component. |
| Heat Treatment | The shunts undergo heat treatment to enhance their mechanical strength and stability, which also improves their resistance to temperature changes. |
| Surface Finishing | The shunts are treated with a protective coating to increase their corrosion resistance and to ensure a smooth, conductive surface for better electrical performance. |
| Quality Control | Each Copper Manganin Shunt is subjected to rigorous testing to confirm its electrical properties, dimensional precision, and durability before being approved for distribution. |
Packaging and Transportation
| Secure Packaging | Each shunt is individually packaged using anti-static and moisture-resistant materials to prevent damage during shipping and storage. The packaging also protects the shunts from physical impacts that could affect their precision. |
| Bulk Packaging Options | For large orders, Shunt Assembly units are grouped in reinforced cartons or crates to facilitate efficient handling and reduce transportation costs. |
| Labeling and Identification | Clear labeling on each package provides detailed product information, including specifications and handling instructions, to ensure easy identification and proper use upon delivery. |
| Reliable Transportation | Using a well-organized logistics network, the shunts are transported securely to minimize delays and ensure timely delivery to the customer's location. |
