What is the Manganin Shunt for Single Phase Latching Relay?
Single‑phase magnetic latching relays frequently encounter severe operational challenges in smart grid environments, including permanent magnet interference, wide operating temperature fluctuations, and high inrush current spikes. Standard commercial shunts often suffer from resistance drift and inaccurate sampling under these stressful conditions, leading to electric meter measurement errors and unwanted protective relay misoperations. Engineered to eliminate these exact system vulnerabilities, this Manganin Shunt for Single Phase Latching Relay is developed specifically for single‑phase latching relay assemblies rather than general‑purpose electronics. Utilizing superior thermal stability and robust electron beam welding, it guarantees precise current monitoring and long‑term mechanical reliability under harsh industrial workloads. Backed by advanced in‑house stamping and strict electrical testing capabilities, bulk supply and OEM customization are fully supported for global switchgear and meter manufacturers.
Key Features & Benefits of Manganin Shunt for Energy Meter
High‑Efficiency & Low‑Energy‑Loss Design
By utilizing high‑purity manganin alloy joined seamlessly with electrolytic copper terminals, the component minimizes parasitic electrical resistance. This suppresses Joule heating during continuous high‑load operations, preventing thermal runaway inside enclosed smart meter housings.
01
Reliable Current Monitoring for System Safety
Accurate metering depends on the stable resistance output of the Low TCR Manganin Stamped Resistive Shunt. The exceptionally low TCR prevents ambient temperature shifts from skewing electrical current feedback, ensuring absolute metering integrity for residential and commercial power distribution networks.
02
Modular Structure for Flexible Integration
The geometry of the Manganin Latching Relay for Single Phase is optimized with precise mounting slots and terminal bends to fit standard relay configurations. This mechanical compatibility accelerates automated pick‑and‑place manufacturing and manual assembly lines alike.
03
Robust Mechanical Joint Integrity
Employing advanced electron beam welding technology for the Electron Beam Welding Shunt Resistor, the metallurgical bond between the resistive alloy and copper terminals withstands severe mechanical shocks and vibration profiles defined in automotive and industrial grid standards.
04
Applications of Latching Relay Manganin Shunt
| Smart Energy Meters | The Prepayment Meter Shunts provide precise current sensing and overload detection in single‑phase prepayment and smart electricity meters. |
| HVDC & AC Latching Relays | Integrated into industrial control relays requiring stable thermal dissipation during continuous switching cycles. |
| Solar PV Inverters | Used within internal monitoring circuits for feedback control and safety disconnect systems. |
| Home Automation Switchgear | The Terminal Block Manganin Shunt serves as the core sampling resistor in high‑amperage smart home control modules. |

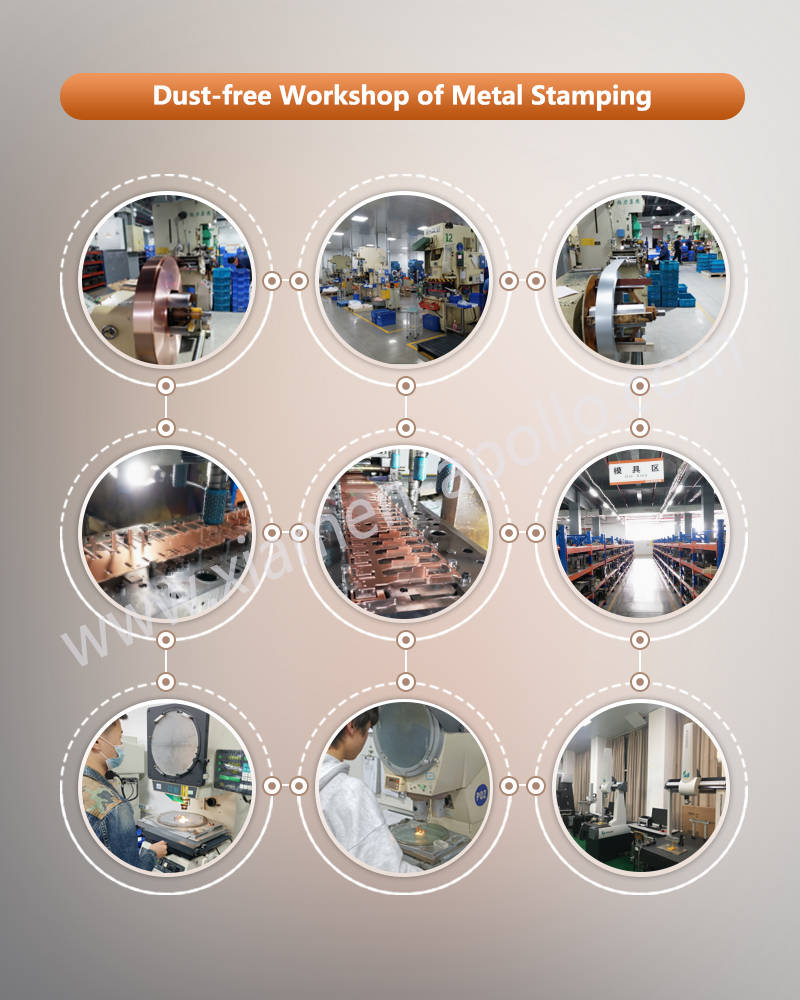

Our Manufacturing Capabilities of Manganin Shunt for Single Phase
Advanced Stamping Lines
For the Manganin Shunt Resistor Shunt, high‑tonnage and progressive stamping presses ensure burr‑free edges and tight dimensional repeatability.
Precision Resistance Tuning
For the Manganin Shunt for Single Phase, automated laser trimming equipment adjusts resistance values to exact customer specifications before shipment.
In‑House Metallurgical Lab
Equipped with optical profile projectors, salt spray testers, and microscopic cross‑section analyzers to verify every production lot of the Manganin Copper Shunt for Electronics Energy Meter.
Frequently Asked Questions about Electron Beam Welding Shunt Resistor
How does this Electron Beam Welding Shunt Resistor prevent resistance drift under wide temperature swings?
+
-
The low temperature coefficient of resistance (TCR) of our selected CuMn12Ni alloy neutralizes thermal expansion effects, maintaining stable output resistance between −40 °C and +85 °C.
What welding method is used to join the manganin alloy and copper terminals?
+
-
We utilize high‑vacuum electron beam welding to create a molecular metallurgical fusion zone, guaranteeing superior shear strength exceeding 180 MPa without filler metals.
Are these Manganin Latching Relays for Single Phase compliant with international environmental and quality regulations?
+
-
All parts are manufactured under IATF 16949 certified quality management systems and strictly adhere to RoHS and REACH environmental directives.
How are the Low TCR Manganin Stamped Resistive Shunts packaged to prevent oxidation during ocean shipping?
+
-
Shunts are sealed in anti‑static vacuum barrier bags with moisture‑absorbing desiccants inside reinforced corrugated master cartons for optimal maritime protection.
Do you provide full material test reports and inspection data with each shipment?
+
-
Complete inspection sheets, dimension check reports, and material composition certificates are included in the documentation package for every delivered lot.
