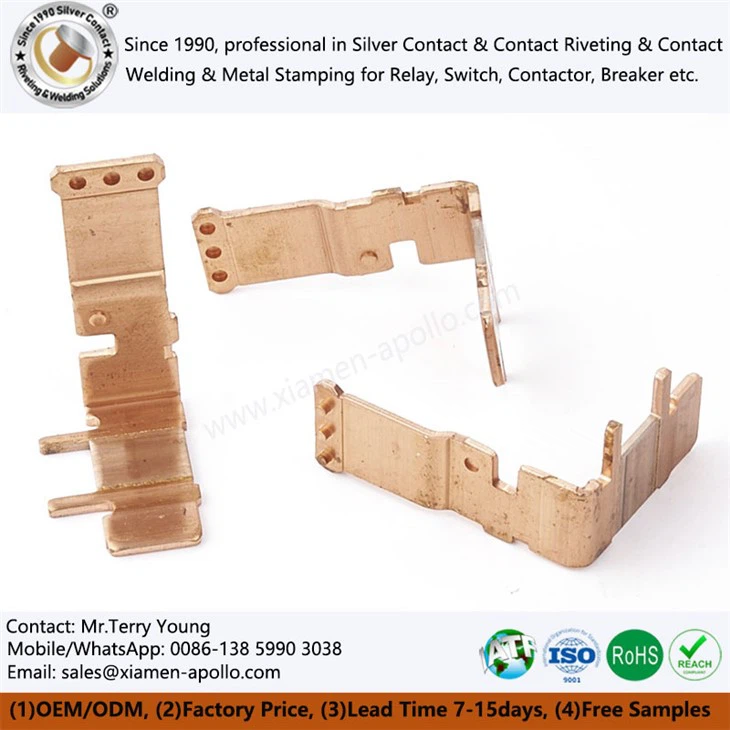

What is the Manganin Shunt for Latching Relay?
In smart electric meters and compact magnetic latching relays, internal space is strictly limited, yet current‑sensing components must maintain rigorous metering accuracy under sustained thermal loads. Fabricating these internal paths requires a reliable bimetallic structure combining low‑resistance copper with stable 6J13 manganin alloy, preventing thermal drift and calibration errors during continuous multi‑ampere operations. As a direct factory manufacturer, we engineer Manganin Shunt for Latching Relay specifically tailored for latching relay assemblies. Utilizing advanced progressive stamping and post‑forming stress relief, our components provide electrical engineers with predictable millivolt signal responses and robust mechanical dimensions for high‑speed automated production.
Manganin-Copper Functional Structure of Manganin Shunt for Energy Meter
The electrical function is divided between two material regions of the Manganin Shunt for Energy Meter. The Manganin section provides the controlled resistance required for current sampling, while the copper section provides the lower‑resistance conductive connection to the relay circuit.
This construction is more relevant to a metering relay than a conventional copper terminal because the resistance path itself becomes part of the measurement circuit.
Core Electrical & Mechanical Advantages of Manganin Shunt for Energy Meter
Low TCR & Minimal Thermal Drift for Metering‑Grade Sampling
The proprietary chemical composition of the Manganin Shunt for Energy Meter effectively neutralizes resistance changes caused by self‑heating and ambient temperature shifts, preserving strict energy billing accuracy.
Compact Composite Structure for Relay Internal Installation
The optimized bimetallic geometry eliminates bulky external housings, allowing seamless drop‑in integration onto tight PCB layouts inside miniature magnetic latching relays.
High‑Strength Bimetallic Bonding Interface
Our metallurgical diffusion welding process ensures zero micro‑voids at the copper‑manganin transition zone for the Manganin Shunt with 100A for Electrical, withstanding high thermal shock and mechanical vibration without delamination.
Tight Resistance Sorting for Batch Consistency
Automated 4‑wire resistance testing rigs sort every production batch of the Resistor Manganese Shunt for Electric Meter into precise millivolt categories, ensuring stable operational performance across high‑volume assembly lines.
Typical Application Scenarios of Shunt Copper for Energy Meter

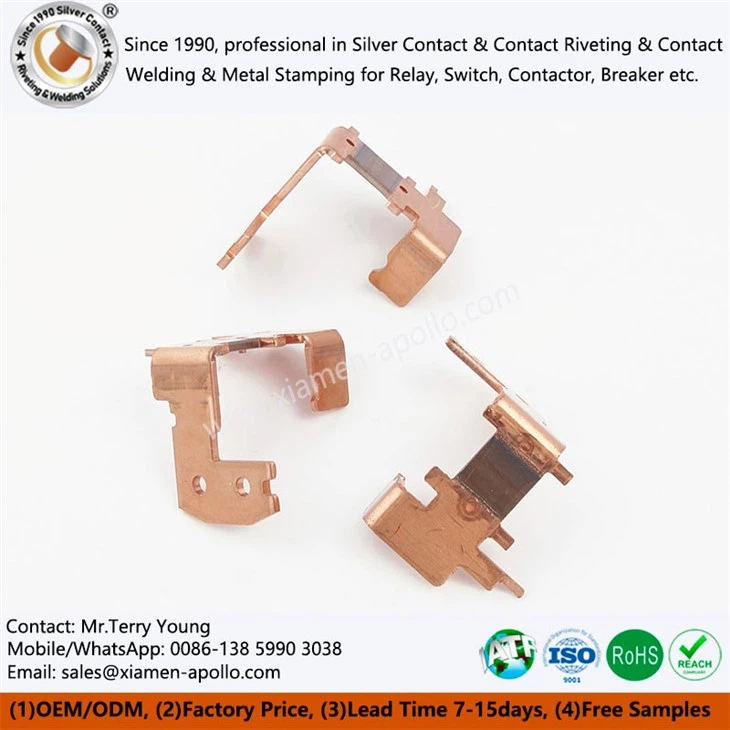

Smart Meter Latching Relay
The relay provides load switching while the Shunt Copper for Energy Meter provides a defined resistance path for current sampling.
Single-Phase Energy Meter
A compact Manganin Shunt for Single Phase can be positioned within the current path of a single-phase energy-meter relay according to the meter's electrical architecture.
Prepayment Meter
Prepayment meters use controlled load switching and may require current monitoring within the meter system.
Relay Current-Sampling Assembly
The Manganin Shunt Resistor Shunt can also be used in relay assemblies where the current path requires a controlled low resistance and the available space favors a stamped metal component.
contact us
If you are interested in our Manganin Shunt for Latching Relay and desire to have a product with excellent performance and reliable quality to meet your various needs, then do not hesitate and feel free to contact us.
